Description
Product Description:

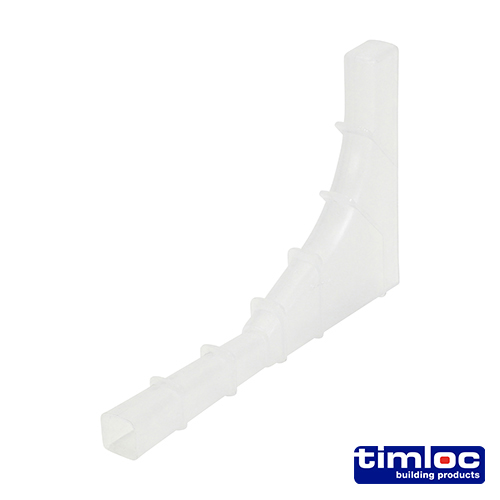

The Timloc Invisiweep Wall Weep Vent offers an exceptionally discreet, high-performance solution for discharging water and moisture from external masonry and cavity walls. Finished in a transparent polymer, this clear version adapts beautifully to any brick or mortar colour, rendering it practically invisible on the building face. It is specifically engineered for use with cavity tray systems above external lintels, flashings, and at ground floor slab levels. The internal design features a clever venturi effect outlet tube that accelerates water drainage while maintaining structural air balance. To protect the property, an integral fine vermin barrier prevents the ingress of wasps, beetles, and small pests into the wall cavity. Designed to be bedded directly into the perpendicular mortar joints during bricklaying, this tapered vent fully satisfies NHBC requirements and relevant British Standards (BS5250, BS8215).
Product Specifications:
• Brand: Timloc
• Height: 65mm
• Length: 102mm
• Material: Plastic
• Size: 65mm (H) x 10mm (W) x 102mm (L)
• Width: 10mm
• Pack Size: Pack of 50
• Colour: Clear
• Product Type: Wall Weep Vent
Additional Features:
• Concealed Venturi Outlet: A low-profile external opening that minimizes visual impact on the facade while optimizing water discharge speeds.
• Vermin and Insect Barrier: Built-in structural ribs act as a physical mesh filter to stop pests, mice, and large insects from nesting inside the cavity.
• Full-Height Upstand: Outfitted with a high rear water-entry faceplate to prevent mortar droppings from blocking the drainage path during installation.
• Mortar-Grip Exterior: Textured external structural ribs bite into wet mortar mixes, ensuring a firm, permanent anchorage that prevents the vent from slipping out.
• Rainwater Baffle Protection: An internal baffle assembly counteracts driving wind pressures, preventing horizontal rain from being pushed back through the weep channel.
Care Instructions:
• Insert the vent during standard bricklaying, keeping it flush with the external brick face or slightly recessed (no more than 2mm).
• Ensure the top and side mortar joints are fully packed but clear of excess mortar blockages at both the entry and exit points.
• Keep the weep openings free from brick acid wash or external render splashes during final masonry cleaning processes.
