SWA Clear Polyurethane Resin Straight Cable Joint Kit 400mm x 70mm x 95mm

SKU: 061534
£66.42£55.35

Description

Product Description:

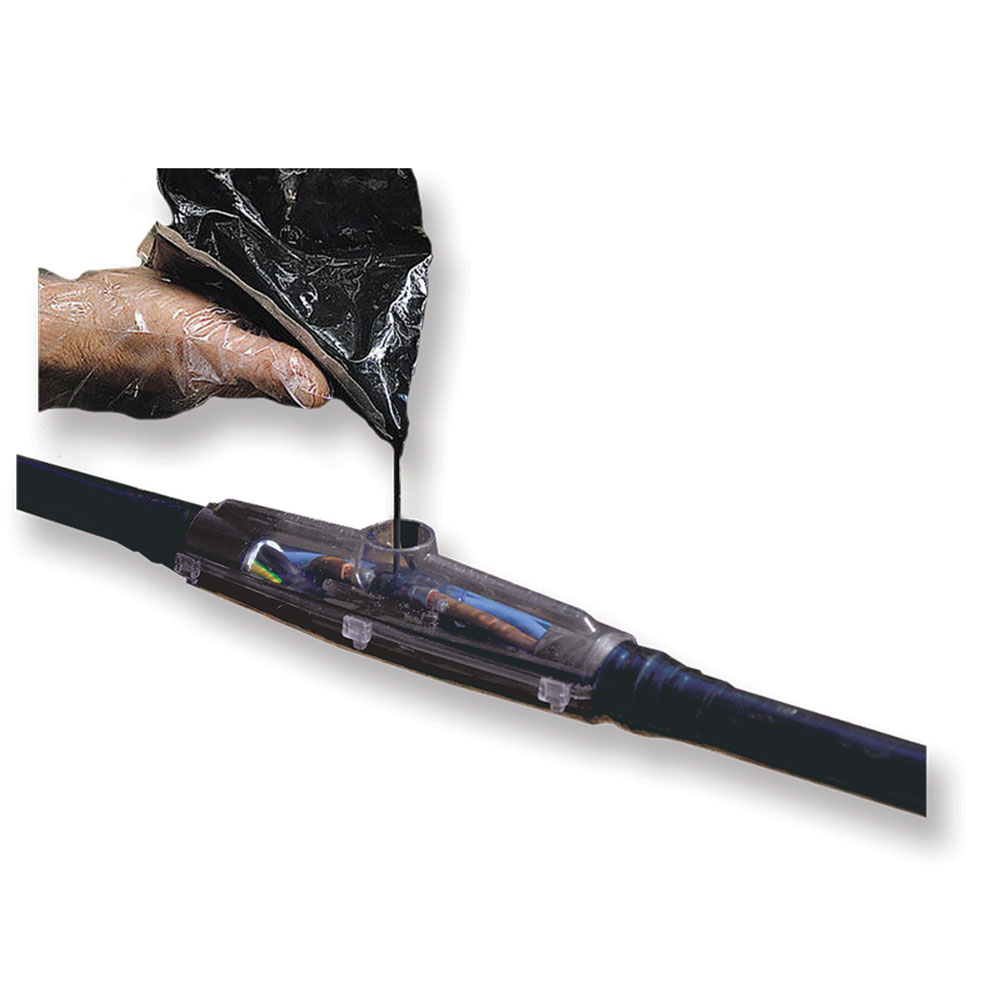

The SWA Cellpack straight through resin cable joint kit delivers a high-performance, completely watertight solution designed to insulate, protect, and inline-joint low-voltage armoured and unarmoured power cables. Universally compatible with multi-core plastic, rubber, PVC, PE, EPR, and XLPE insulated cables, this heavy-duty kit safely connects copper or aluminum conductors across a range of multi-core configurations up to 50mm². The system includes a clear, impact-resistant polycarbonate mold shell that allows electrical installers to visually confirm cable layout and mechanical alignment before casting. Utilizing a premium, halogen-free polyurethanic cast resin packaged in a two-chamber direct-mix pouch, it eliminates the threat of direct skin contact and harmful emissions during installation. Certified with an IP68 ingress protection rating, it provides permanent longitudinal and transverse moisture blocks for underground direct burial, outdoor exposed, or fully submerged marine and utility applications.

Product Specifications:

• Brand: SWA
• Finish: Clear Transparent (Mould)
• Height: 95mm
• IP Rating: IP68
• Length: 400mm
• Material: Polycarbonate (Mould) / Polyurethane (Resin)
• Size: 400mm x 70mm x 95mm
• Voltage / Frequency: 1.2 kV
• Width: 70mm
• Product Type: Cable Jointing Kit

Additional Features:

• Certified to an IP68 protection standard, delivering full transverse and longitudinal waterproofing when buried or fully submerged.
• Clear, injection-molded polycarbonate body shell allows effortless internal tracking and spatial checks prior to dispensing the resin.
• Engineered with a clean two-chamber compound bag system that enables isolated mixing to protect the user from skin contact or fumes.
• Exhibits extreme structural stability, high insulation capacities, and heavy-duty resistance against UV degradation and soil alkalinity.
• Supplied as a comprehensive, ready-to-use straight kit complete with armor continuity materials, P1 mechanical connectors, sealing tape, and gloves.

Care Instructions:

• Store the unopened resin pouch inside its original protective foil layer in a cool, dark environment to retain its 40-month shelf life.
• Thoroughly strip, scrape, and degrease all joining cable sections to remove oil or dirt tracking before positioning the mold shell.
• Allow the liquid polyurethanic composite to rest undisturbed for at least 2 hours to achieve full mechanical cure before handling the joint.

Additional information

Size

(length) 400mm X (depth) 70mm X (height) 95mm

Brand

S/Code

SJK4
