Description
Product Description:

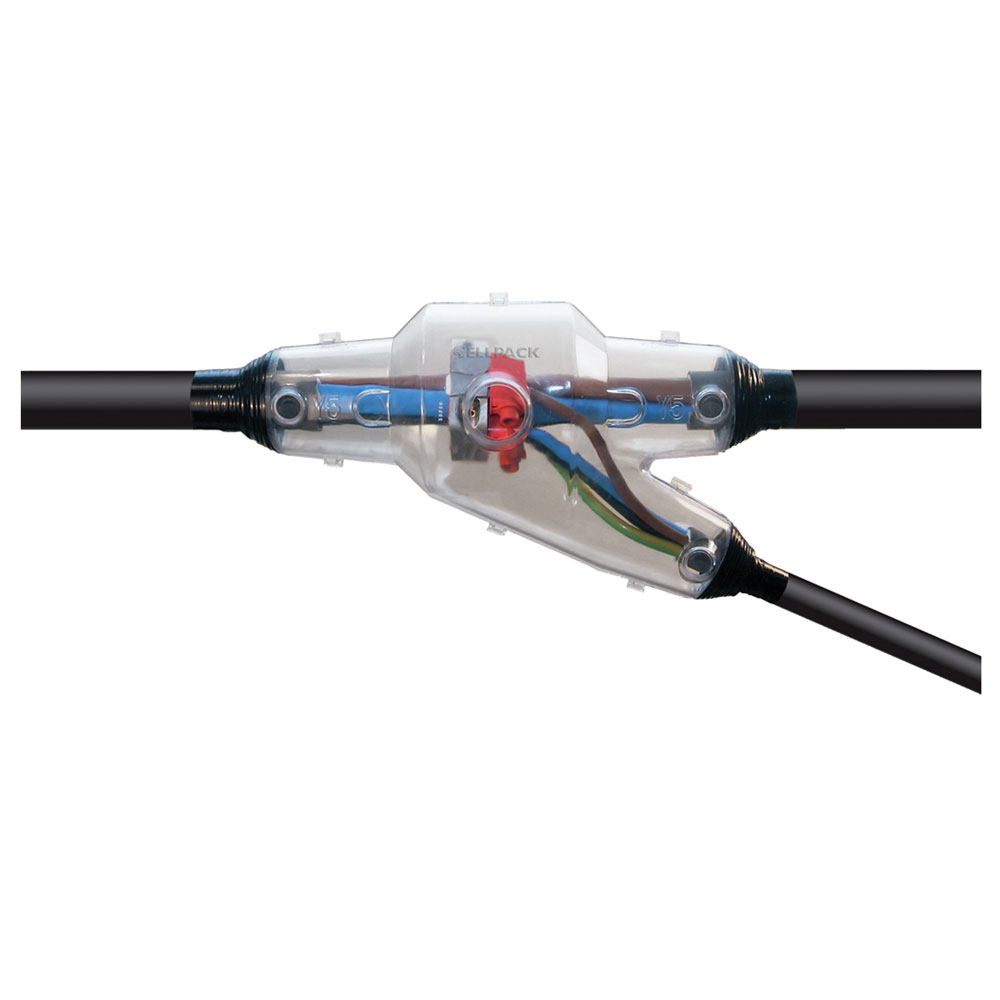

The SWA Cellpack Purecast BJK2 branch resin joint kit provides a professional-grade, high-integrity electrical insulation and sealing solution designed for establishing secure branch connections on low-voltage power cables. Engineered for maximum reliability in underground, overhead, and submerged marine installations, this premium kit is optimized for splicing main lines and branch offshoots in challenging external environments. It features a transparent, impact-resistant polycarbonate mold shell that allows installers to verify correct cable alignment and connector positioning before pouring the liquid insulation. The kit utilizes a high-grade, two-part Purecast polyurethane resin system packaged in a user-safe, mix-in-the-bag setup to minimize direct chemical contact and ensure an optimal curing balance. Once cured, the dense encapsulation establishes complete protection against water ingress and mechanical stresses, making it ideal for street lighting networks, industrial processing facilities, and outdoor infrastructure maintenance.
Product Specifications:
• Brand: SWA
• Finish: Smooth transparent shell with glossy poured resin
• IP Rating: IP68
• Material: Polycarbonate Shell & Polyurethane Resin
• Size: BJK2
• Colour: Green (Resin) & Transparent (Shell)
• Product Type: Branch Resin Joint Kit
Additional Features:
• Constructed with a rugged, snap-together transparent plastic shell to guarantee visible, void-free resin distribution.
• Employs a two-part Purecast resin packet with an enclosed mixing configuration for safe, clean handling on site.
• Attains a full IP68 water and dust ingress rating upon completion of the chemical curing phase to support deep submersion.
• Delivers exceptional dielectric strength along with premium mechanical defense for armored and unarmored cable paths.
• Supplied as an all-in-one installation set including the transparent housing, resin pack, sealing tape, and installation guide.
Care Instructions:
• Knead and blend the two-part resin component within its sealed protective bag until completely homogenous before cutting the application nozzle.
• Thoroughly clean, dry, and degrease all outer cable jackets, armoring structures, and copper cores prior to locking the shell halves together.
• Store the unmixed kit components in a dry, temperature-controlled environment kept between 5°C and 25°C to preserve resin chemical shelf life.
Warranty Information:
• Warranty Period: 1 Year
• Coverage: Standard replacement of components showing verified factory formulation defects or structural moulding flaws before mixture.
• Conditions: Requires validation through an authentic proof of purchase; coverage is invalidated if specified temperature boundaries or mixing directions are disregarded.
