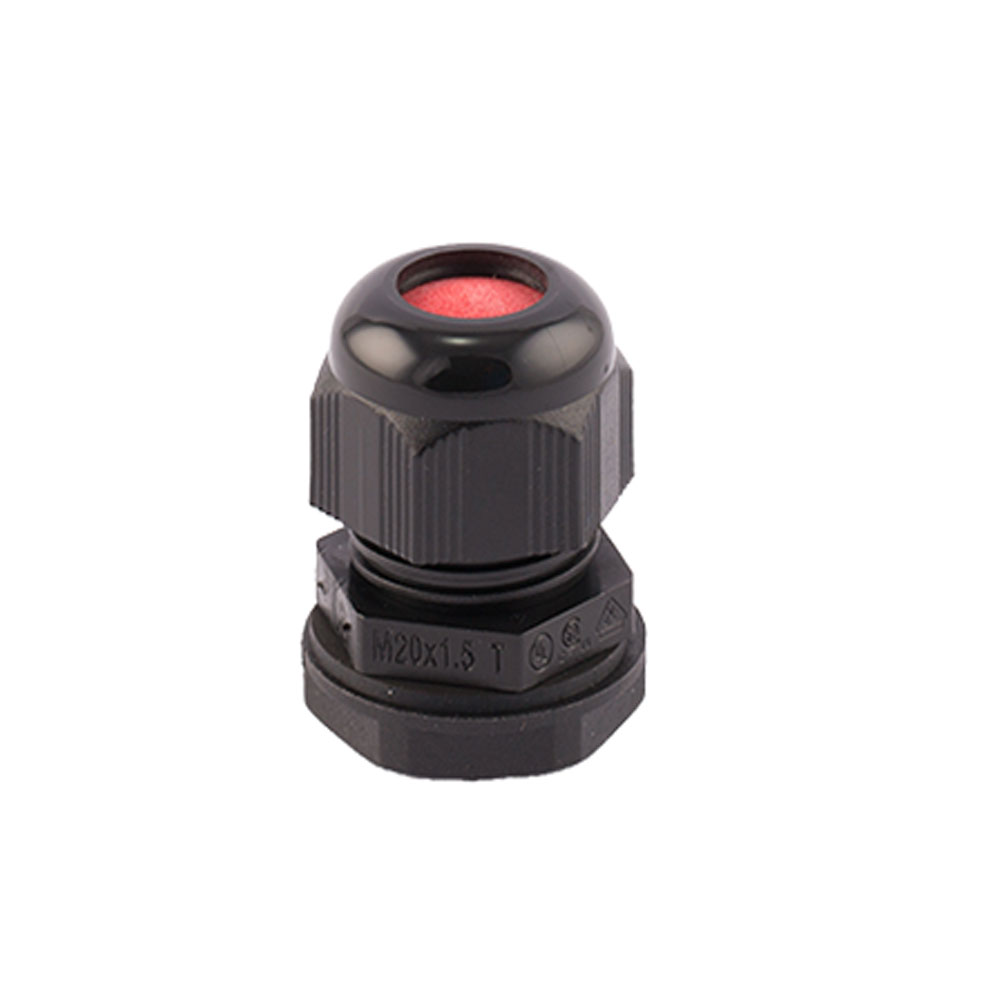

SWA Black Polyamide Dome Top Cable Gland 32mm

SKU: 073628
£10.07£8.39

Description

Product Description:

The SWA black polyamide dome top cable gland provides exceptional protection and strain relief for electrical cables entering enclosures, junction boxes, and consumer units. Engineered from high-grade, halogen-free Polyamide 6 (Ultramid B), this M32 metric gland features a robust dome top design integrated with a durable neoprene rubber sealing insert. This combination guarantees an exceptional watertight and dustproof seal, making it highly suited for demanding industrial environments, commercial installations, and outdoor hospitality applications. It offers an effortless spanner-tight installation with a built-in vibration protection system that prevents torque loss over time. Designed for swift deployment without dismantling, it accommodates circular cables while supplying optimum grip and structural stability at critical entry points.

Product Specifications:

• Brand: SWA
• Finish: Matte Black
• IP Rating: IP68 (5 bar)
• Material: Polyamide 6 / Neoprene (Seal)
• Size: 32mm
• Colour: Black
• Product Type: Cable Gland

Additional Features:

• Features an impressive IP68 environmental rating, offering total immersion protection against water and dust ingress for outdoor installations.
• Molded with a built-in vibration lock system within the dome cap to eliminate the risk of accidental loosening or loss of torque in high-vibration environments.
• Supplied complete with a matching polyamide locknut and washer to facilitate quick, secure, and permanent anchoring to enclosure walls.
• Constructed from halogen-free Ultramid B plastic, presenting excellent chemical resistance against mineral oils, fuels, weak acids, and vegetable fats.

Care Instructions:

• Ensure the circular profile cable is wiped clean of grease and grit prior to feeding it through the neoprene seal.
• Tighten the dome top using the correct size wrench to achieve the specified torque without over-stressing the plastic threads.
• Inspect the exterior casing and seal integrity during scheduled electrical panel maintenance for signs of environmental degradation.

Additional information

Brand

S/Code

CG/LNM32B
