Description
Product Description:

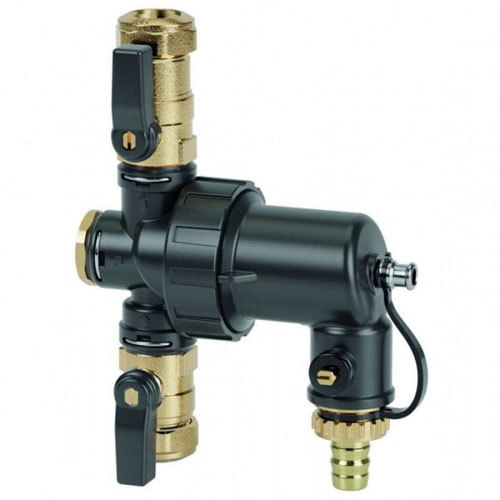

The Worcester Bosch Greenstar mini magnetic central heating system filter delivers high-performance, compact protection designed to shield boilers and heat pumps from the damaging effects of system debris and pollutants. Engineered for systems with 22mm piping, this space-saving filter uses a dual-action filtration mechanism to aggressively capture both magnetic iron oxides (black sludge) and non-magnetic particles before they can enter and damage delicate boiler components. Its ultra-compact layout allows it to be installed flexibly over, under, or remotely from the appliance, making it ideal for tight spaces in both modern domestic households and commercial hospitality fit-outs. Complete with isolation valve indicators, a one-way chemical injection point, and a bottom drainage plug, this unit maximizes overall boiler efficiency, prevents costly system breakdowns, and significantly extends the operational lifespan of the entire heating circuit.
Product Specifications:
• Brand: Worcester Bosch
• Height: 155mm
• Material: Plastic / Composite
• Size: 22mm
• Width: 182mm
• Colour: Black
• Product Type: Magnetic System Filter
Additional Features:
• Dual-action magnetic and non-magnetic filtration ensures comprehensive captures of diverse heating sludge
• Compact ‘mini’ construction enables versatile installation configurations in highly restricted boiler spaces
• Integrated one-way valve simplifies the addition of water treatment chemicals and system protectors
• Isolation valve status indicators provide clear, 90-degree visual feedback during maintenance operations
• Features an engineered over-tightening prevention lid to permanently eliminate damage to the inner O-ring seal
Care Instructions:
• Isolate the filter using the integrated quarter-turn valves before initiating any servicing or flushing.
• Utilize the bottom drainage point annually to flush away accumulated non-magnetic debris and magnetite.
• When reassembling the detachable filter body, hand-tighten until the built-in anti-over-tightening stop engages.
