Description
Product Description:

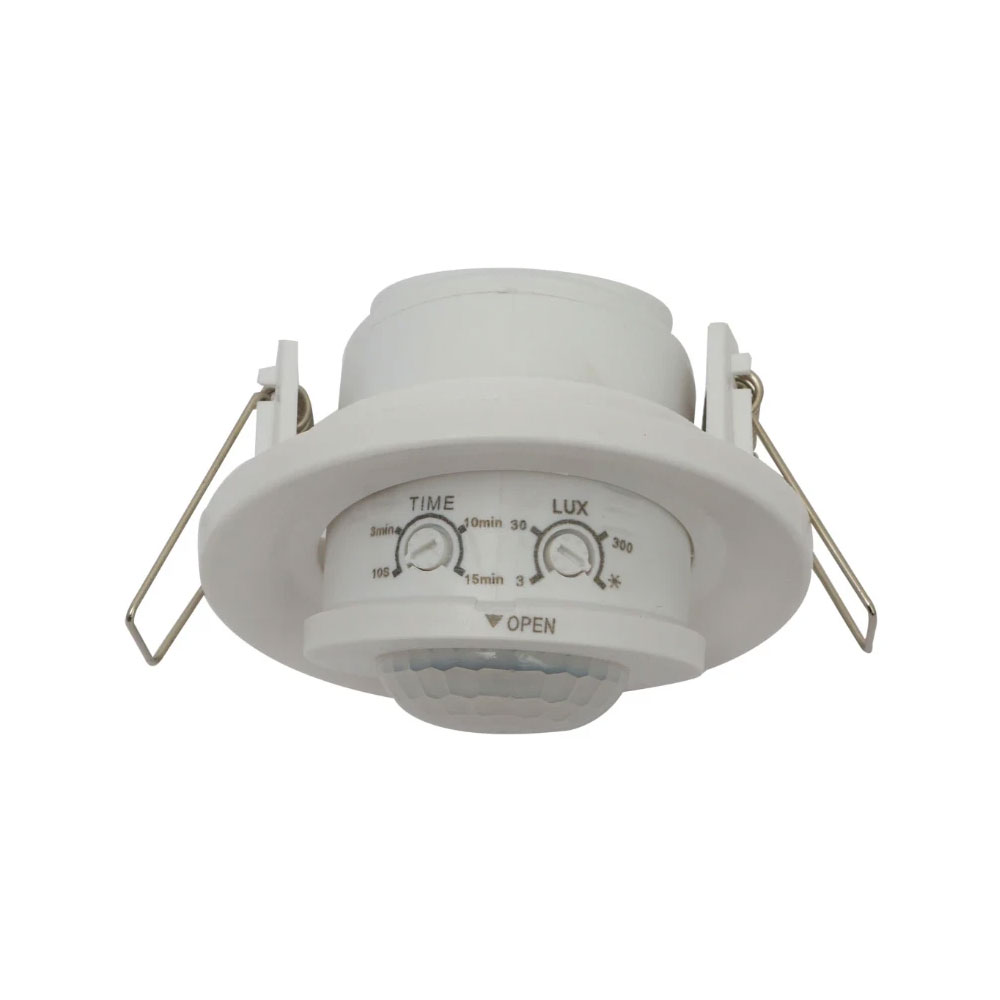

This indoor flush-mounted PIR motion detector from Deta provides intelligent, automated lighting control for residential and commercial interior spaces. Designed specifically for ceiling installations, it features an unobtrusive flush profile with a front-accessible concealed cover for hassle-free adjustments without needing to remove or dismantle the ceiling unit. The sensor offers a 360-degree detection zone with up to an 8-meter range, automatically switching connected luminaires upon detecting presence. Equipped with user-adjustable time delay and ambient lux sensitivity settings, as well as a convenient manual override function, it delivers maximum energy efficiency for hallways, offices, and utility spaces.
Product Specifications:
• Brand: Deta
• IP Rating: IP20
• Material: Plastic
• Voltage / Frequency: 220V – 240V / 50Hz
• Colour: White
• Product Type: PIR Detector
Additional Features:
• Flush ceiling mounting configuration for a subtle, low-profile appearance
• Easy-access adjustment dials hidden behind a front-facing concealed lid for quick lux and timer tuning
• 360-degree passive infrared detection coverage with up to an 8m detection distance
• Adjustable time delay (10 seconds to 15 minutes) and lux levels (3 to 2,000 lux)
• Supports switching for up to 300W LED and 1200W incandescent/halogen lighting loads
• Built-in manual override function for continuous lighting control when needed
Care Instructions:
• Ensure the mains power supply is fully isolated before inspecting, adjusting, or cleaning the sensor.
• Gently wipe the outer fascia and sensor lens using a soft, clean, dry lint-free cloth to keep free of dust.
• Do not apply liquid chemical cleaners, aerosol sprays, or solvent solvents directly onto the sensor body.
Warranty Information:
• Warranty Period: 3 Years
• Coverage: Guarantee against defective materials and manufacturing faults.
• Conditions: Must be installed by a competent person or qualified electrician in compliance with current IET wiring regulations.
