Description
Product Description:

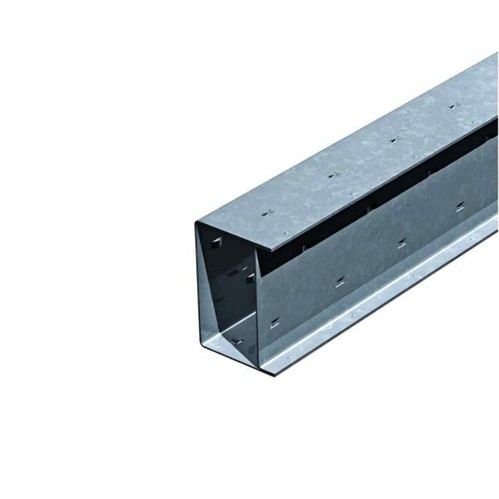

A galvanised steel internal wall box lintel designed for use above openings in 100mm internal block walls. Supplied in a 900mm length, the lintel provides structural support for suitable load-bearing masonry applications and features a hot-dip galvanised finish for enhanced corrosion protection.
Product Specifications:
• Brand: Birtley
• Product Type: Standard Duty Internal Wall Box Lintel
• Finish: Hot-Dip Galvanised
• Height: 76mm
• Length: 900mm
• Material: Mild Steel
• Size: 900mm x 95mm
• Width: 95mm
Additional Features:
• Designed for use with 100mm internal block walls
• Standard duty box section provides structural support above suitable wall openings
• Hot-dip galvanised coating helps protect the steel against corrosion
• Safe working load of 15kN
• 60-minute fire rating when finished with a suitable two-coat plaster system
• Requires a minimum 150mm end bearing during installation
Care Instructions:
• Store in a clean, dry location before installation
• Protect from impact, bending and damage during handling
• Install with suitable end bearings and in accordance with structural and building requirements
