Product Description:

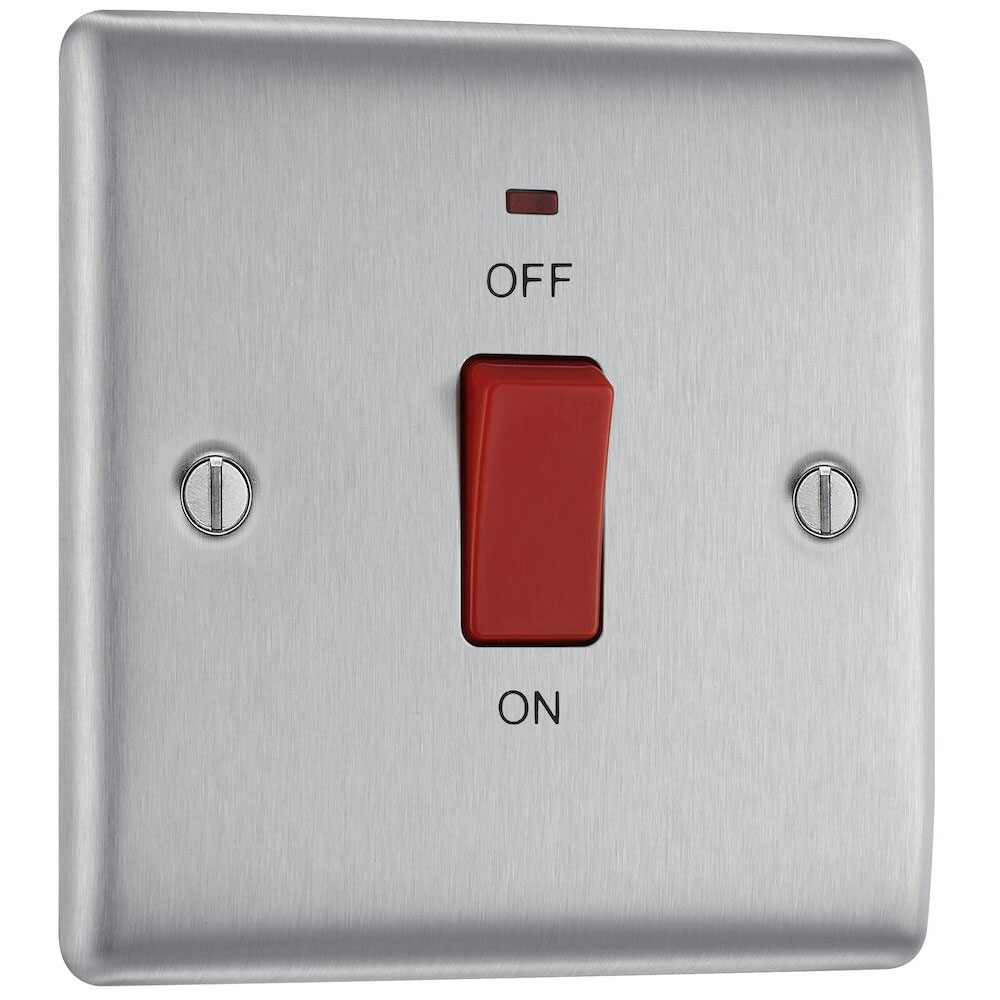

This premium heavy-duty 45A double pole isolation switch from British General’s Nexus Metal collection provides a robust, high-capacity solution for safely isolating large household appliances, such as electric cookers, hobs, and high-load electric showers. Featuring a compact single-sized square mounting plate, it provides a clean and streamlined aesthetic where wall space is optimized. The switch comes equipped with a low-profile, flush-fitting LED power indicator to provide a distinct, clear visual tracking of active live circuits at a glance. Boasting a sleek, modern frontplate depth of just 6.9mm with softly rounded edges, its premium high-grade steel face is treated with an anti-fingerprint protective lacquer to ensure a clean finish in busy household and commercial environments. To prevent surface discoloration or edge corrosion from newly applied plaster or ambient kitchen condensation, the unit includes an integrated plastic moisture control gasket. For enhanced installation safety and speed, it features twin earth terminals along with color-coded, backed-out captive screws.
Product Specifications:
• Brand: BG
• Amp Rating: 45A
• Finish: Brushed Steel
• Height: 86mm
• IP Rating: IP20
• Material: Premium Grade Steel
• Size: 86mm x 86mm
• Voltage / Frequency: 220-250V AC
• Width: 86mm
• Colour: Grey
• Product Type: Heavy Duty Switch
Additional Features:
• Compact single-gang square plate design allows high-power appliance management in space-restricted layouts.
• High-capacity 45A double pole mechanism safely interrupts both live and neutral lines to provide total isolation for high-load equipment.
• Sleek, integrated neon/LED indicator delivers instant visual confirmation of current circuit status.
• Premium steel plate utilizes a specialized anti-smudge lacquered finish to minimize fingerprint traces.
• Equipped with a built-in moisture control gasket to protect structural metallic edges from damp wall environments.
• Features dual earth terminals to easily accommodate high-integrity protective grounding configurations.
Terminal Capacity:
• Live & Neutral (L & N): 4 x 4.0mm², 3 x 6.0mm², or 1 x 16.0mm²
• Earth (E): 3 x 4.0mm², 2 x 6.0mm², or 1 x 16.0mm²
Care Instructions:
• Ensure the target heavy-appliance circuit is completely isolated at the consumer unit before initiating any hardware cleaning or structural adjustments.
• Wipe external plate components periodically using a completely dry, clean lint-free microfiber fabric.
• Do not clean using aggressive liquid chemical solvents, direct aerosol sprays, or highly abrasive kitchen scrubbers.
Warranty Information:
• Warranty Period: 25 Years
• Coverage: Material cracks, structural component failures, and underlying manufacturing defects.
• Conditions: Must be professionally fitted inside a standard single-gang mounting box with an absolute minimum internal installation depth of 47mm.
