Bg
Switches & Sockets

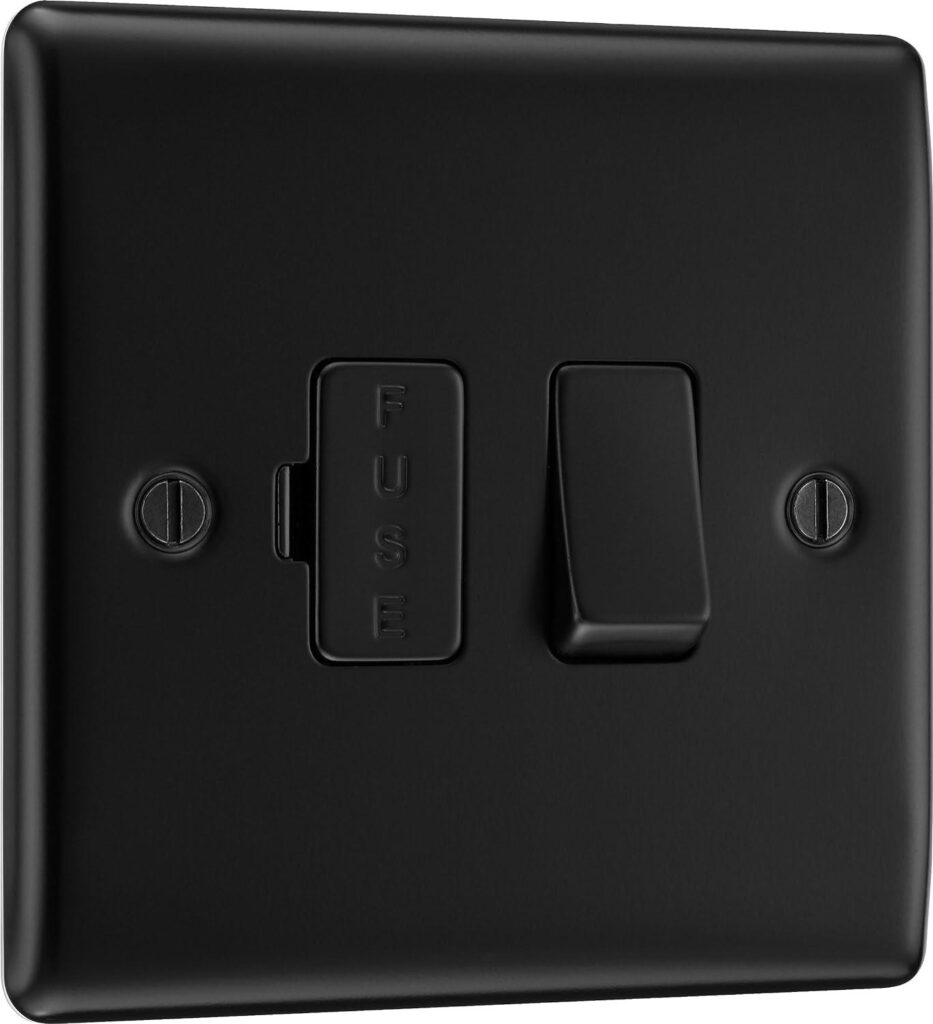

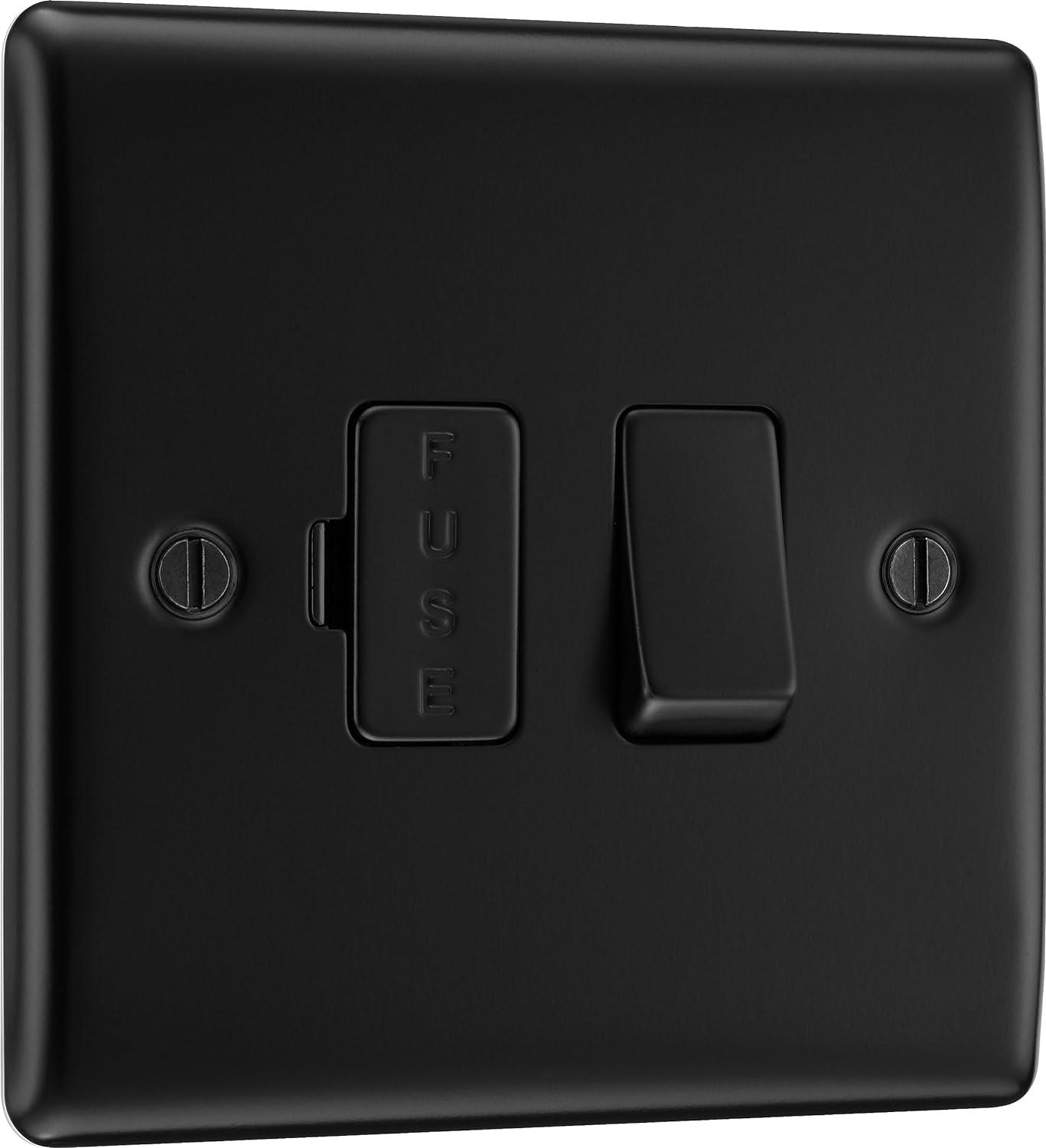

BG Nexus Metal Matt Black 1 Gang 13A Switched Fused Connection Unit 8.6cm x 8.6cm (3.4″ x 3.4″)

SKU: 076957
£7.43£6.19

Description

Product Description:

This premium BG Electrical switched fused connection unit offers a sleek, high-integrity power protection solution designed specifically for luxury hospitality and premium commercial interiors. Part of the architectural Nexus Metal range, it features a modern, low-profile front plate with gently rounded corners and a premium matt black finish that actively resists unsightly fingerprint smudges. Rated at 13A, this fused spur unit provides a safe, independent mains electrical outlet incorporating a replaceable fuse, making it completely suitable for isolation control over hardwired commercial kitchen appliances, extractors, refrigeration equipment, and localized spur circuits. Its heavy-duty double pole switching mechanism cuts through both live and neutral lines simultaneously, guaranteeing complete electrical isolation for staff or maintenance crews. Built for pristine, long-term performance, it comes fitted with a dedicated moisture control gasket that blocks fresh plaster tarnish and wall dampness from corroding the steel faceplate edges.

Product Specifications:

• Brand: BG Electrical
• Amp Rating: 13A
• Finish: Matt Black
• Height: 86mm
• IP Rating: IP2X
• Material: Steel
• Size: 8.6cm x 8.6cm x 2.9cm (3.4″ x 3.4″ x 1.1″)
• Voltage / Frequency: 220-250Vac (50/60Hz)
• Width: 86mm
• Colour: Matt Black
• Product Type: Switched Fused Connection Unit

Additional Features:

• Provides high-level circuit protection and isolation for fixed electrical appliances and downstream ring main extensions.
• Sleek, low-profile metal plate features softly rounded contours and a matching black rocker switch with zero visible surrounding plastic.
• Double pole switching isolates both the live and neutral feeds to guarantee a safer maintenance environment for hospitality service staff.
• Streamlines commercial electrical installation via angled, in-line, colour-coded captive terminal screws that prevent wire or screw loss during wiring.
• Equipped with dual/twin earth terminals as standard to seamlessly support high-integrity circuits within commercial building regulations.
• Features the word ‘FUSE’ cleanly embossed into the front of the removable fuse holder cover for swift identification.

Care Instructions:

• Always isolate the main electrical power supply at the consumer unit before executing surface cleaning or faceplate removal.
• Wipe down the decorative metal front plate using a soft, entirely dry, lint-free microfiber cloth to remove dust, smudges, or grease.
• Never introduce wet cloths, liquid detergents, or abrasive scouring pads, which risk compromising internal circuits and stripping the lacquer.

Warranty Information:

• Warranty Period: 25 Years
• Coverage: Guarantee against any structural manufacturing defects or faulty workmanship under standard installation.
• Conditions: Must be fitted by a competent, licensed electrician in compliance with local IET wiring and building regulations.

Additional information

Pack Size

1

Brand

Product Type

Fused Switch

amp-rating

Colour

Matt Black

S/Code

NFB50
