Description
Product Description:

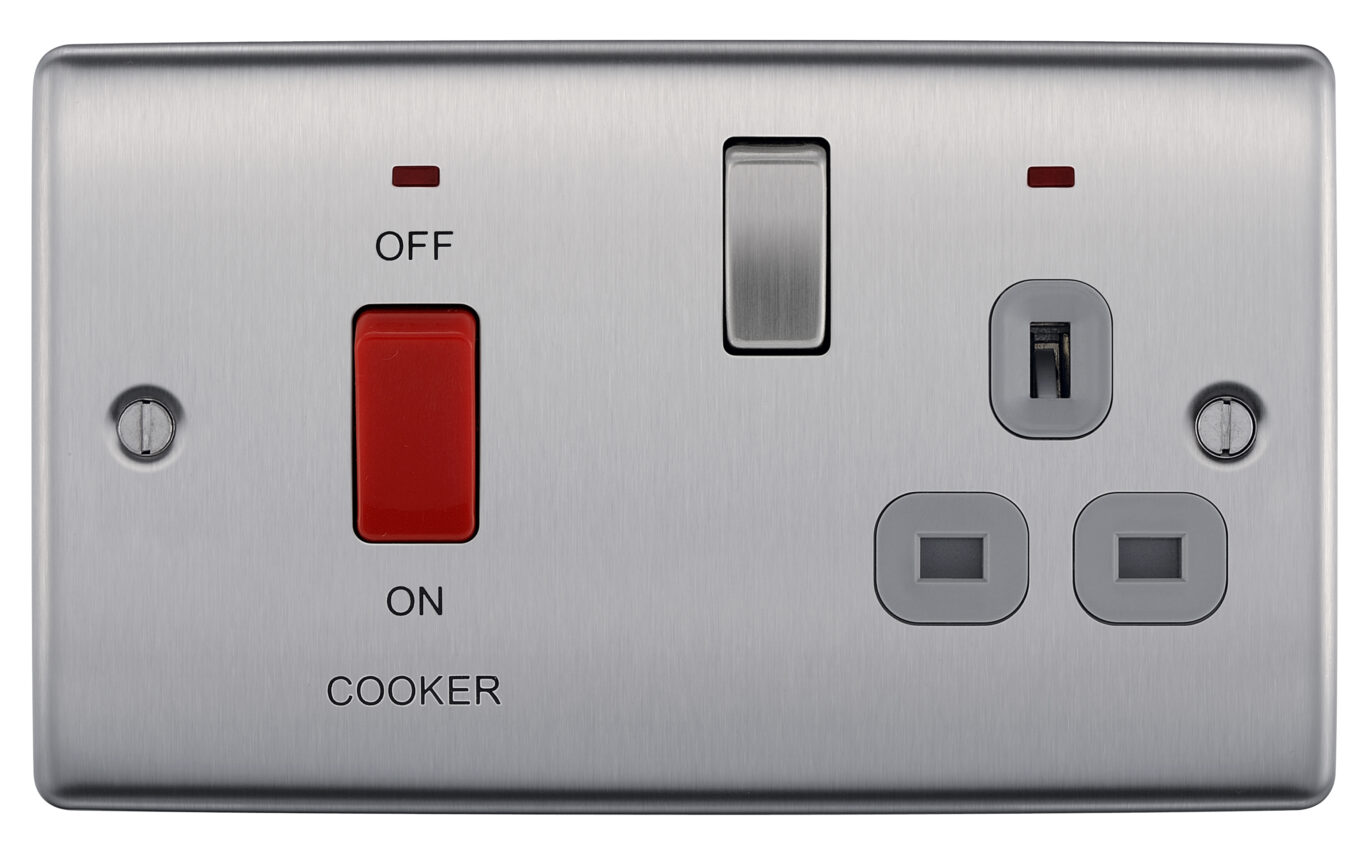

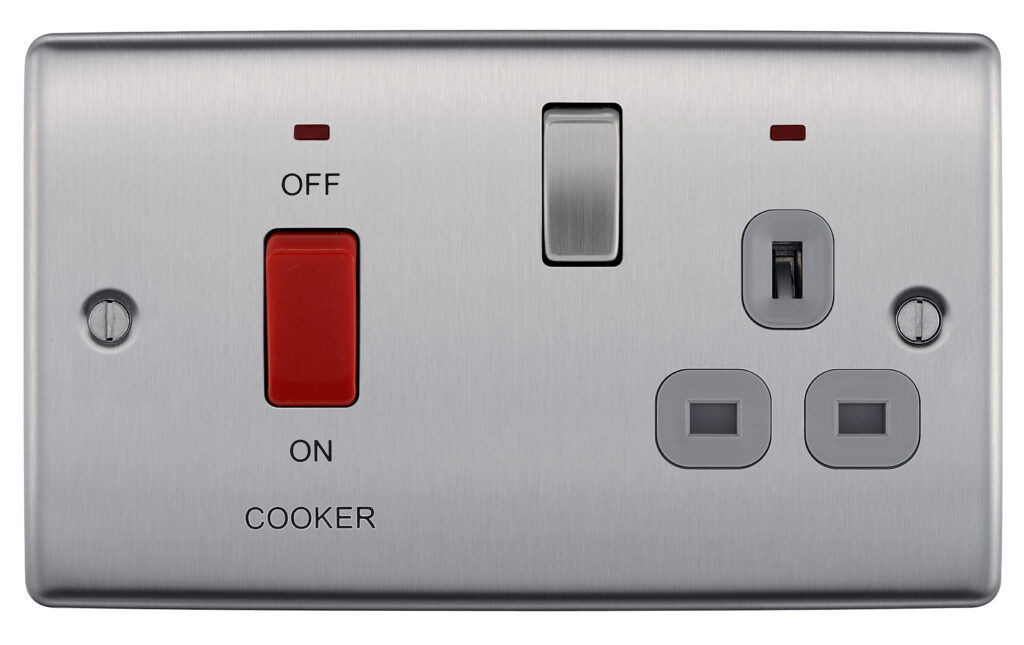

This premium 45A cooker control unit from British General’s Nexus Metal collection provides a high-capacity, heavy-duty solution for safely powering and controlling high-wattage domestic cooking appliances and electric ovens. It comes integrated with an independent 13A switched power socket, allowing you to run a separate countertop kitchen appliance simultaneously from the same convenient wall point. The unit features dual neon power indicators to provide a clear, real-time visual tracking of live operational statuses for both the main cooker and the secondary outlet. Designed with a sleek, modern profile boasting a frontplate depth of just 6.9mm, the double-sized faceplate is crafted with softly rounded edges and contrasting grey inserts to seamlessly complement contemporary high-end kitchen installations. The premium steel surface is coated with a specialized light lacquer that inherently resists fingerprint marks and grease smudges under daily culinary use. To prevent unsightly edge tarnishing from wet plaster or ambient condensation, the plate is constructed with a fixed, integrated moisture control gasket. For a swift, secure installation, the unit utilizes angled, color-coded terminals with backed-out captive screws and is supplied with color-matched hardware for a completely unified, premium appearance.
Product Specifications:
• Brand: BG
• Amp Rating: 45A (Cooker Switch) / 13A (Socket Outlet)
• Finish: Brushed Steel
• Height: 86mm
• IP Rating: IP20
• Material: Premium Grade Steel
• Size: 146.5mm x 86mm
• Voltage / Frequency: 220-250V AC
• Width: 146.5mm
• Colour: Grey
• Product Type: Cooker Control Unit
Additional Features:
• Sleek 6.9mm low-profile frontplate with subtle convex lines blends smoothly into modern kitchen design concepts.
• Heavy-duty 45A double pole main switch safely isolates high-power electric cookers and structural cooking arrays.
• Integrated 13A switched outlet provides an extra local power source for countertop kitchen electronics.
• Dual neon power indicators offer separate, clear visual tracking of active power delivery for the cooker and socket.
• Specially lacquered anti-fingerprint surface treatment cuts down on cleaning maintenance in busy cooking spaces.
• Fitted with an integrated plastic moisture control gasket that defends the steel edges from damp plaster tarnishing.
Care Instructions:
• Ensure the main cooker electrical circuit is fully isolated at the consumer unit before executing any physical maintenance or plate adjustments.
• Dust or clean external surfaces regularly by wiping across the faceplate with a dry, clean lint-free cloth.
• Do not use harsh chemical solvents, pressurized liquid sprays, or wet abrasive scrubbers near the electrical switch modules.
Warranty Information:
• Warranty Period: 25 Years
• Coverage: Manufacturing faults affecting material integrity, surface corrosion, and foundational structural craftsmanship.
• Conditions: Must be professionally fitted inside a standard double-gang mounting box with an absolute minimum internal installation depth of 47mm.
