Switches & Sockets

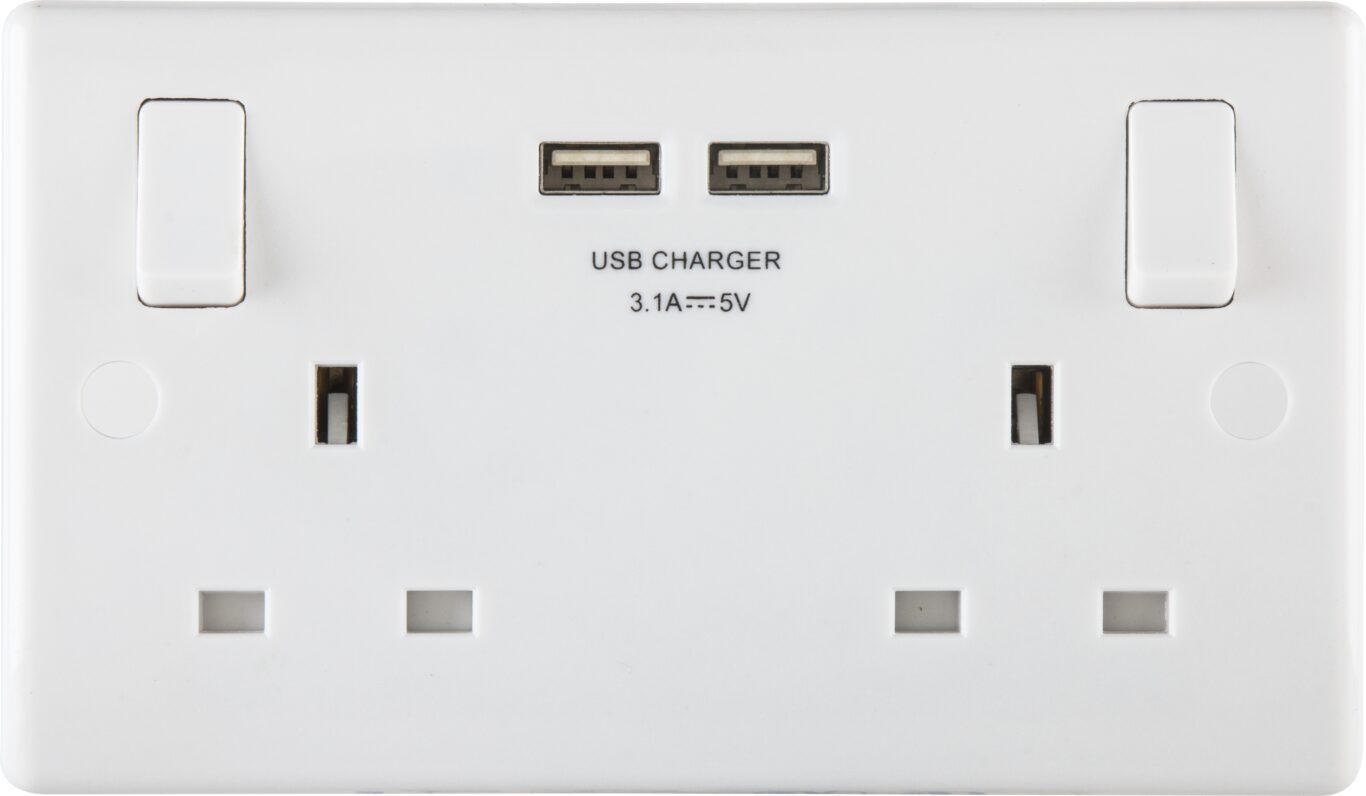

BG Nexus 800 Series White Moulded Double Switched Socket with 2-Port USB Charger 86mm x 146mm

SKU: 037414
£11.46£9.55

Description

Product Description:

This trade-quality BG Nexus double power socket offers a highly reliable, sleek, and modern solution for residential, commercial, and hospitality power hubs. Manufactured from high-grade, white urea plastic, the scratch-resistant front plate boasts inherent anti-microbial properties proven to inhibit bacterial growth and reduce discolouration over time. Featuring a low-profile, softly rounded edge design, it seamlessly integrates into modern decor and fits standard 25mm backboxes, making it ideal for straightforward retrofit upgrades. It features two 13-amp single-pole switched outlets equipped with inlaid red rocker indicators for clear on/off visibility. The unit features built-in Smart USB technology with dual Type-A charging ports that deliver a shared 3.1A (5V) output. This intelligent circuit automatically detects connected devices to optimize charging patterns, enters a low-energy standby mode when fully charged, and includes advanced overload protection. Designed with installer efficiency in mind, the back plate is configured with angled, colour-coded captive terminals and comes standard with a twin earth facility for clean, high-integrity grounding pathways.

Product Specifications:

• Brand: BG
• Height: 8.6cm (86mm)
• Width: 14.65cm (146.5mm)
• Depth: 2.12cm (21.2mm)
• Material: Urea Plastic (White Moulded)
• Voltage: 230V / 240V AC
• Amperage Rating: 13A
• Number of Gangs: 2
• Number of USB Ports: 2 (Type-A)
• USB Output: 5V DC, 3.1A (Shared)
• Minimum Mounting Box Depth: 25mm
• Terminal Capacity: 3 x 2.5mm², 3 x 4.0mm², 2 x 6.0mm²
• Colour: White
• Product Type: Switched Socket with USB

Additional Features:

• Anti-microbial property compound helps reduce bacterial growth on high-touch surfaces.
• Smart USB configuration features AutoDetect technology and a low-power standby mode (<75mW).
• Angled in-line colour-coded terminals with backed-out captive screws facilitate rapid, easy wiring.
• Twin earth terminal layout provides clean grounding loops compliant with BS 7671 standards.
• Supplied complete with matching white screw-cap covers to deliver a clean, screwless appearance.

Care Instructions:

• Ensure the mains electrical supply is isolated at the consumer unit before removing or installing accessories.
• Wipe down the faceplate using a soft, dry cloth; avoid chemical solvents, harsh abrasives, or excessive liquid moisture.
• During installation, verify that no bare wire conductor strands are left exposed outside the insulated terminal blocks.

Warranty Information:

• Warranty Period: 25 Years (Socket Mechanism) / 2 Years (USB Charging Circuit)
• Coverage: Defective structural components, internal switch failure, and material manufacturing anomalies.
• Conditions: Must be fitted into certified structural enclosures by a qualified installer following standard wiring regulations.

Additional information

amp-rating

Brand

Size

H8.6, W14.6, D3.3cm.

Pack Size

1

Product Type

Switch Socket

Colour

White

S/Code

822U3
