Description
Product Description:

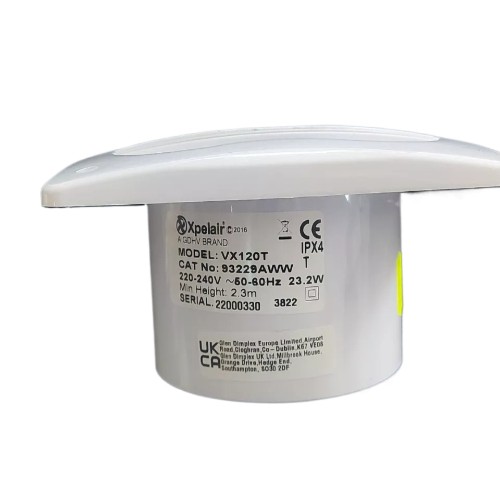

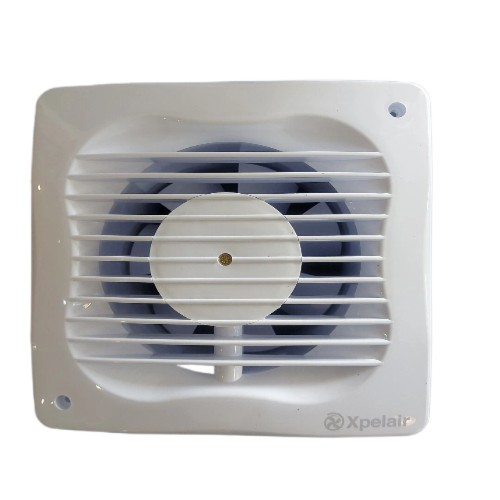

The Xpelair VX120T is a 120mm single‑speed axial extractor fan designed for bathrooms, toilets, shower rooms, and utility areas.
It features an adjustable over‑run timer (30 seconds to 30 minutes) and delivers reliable, high‑performance ventilation with a robust AC motor.
The fan is IPX4 rated, making it suitable for installation in bathroom zones 1 and 2, and is designed for simple surface‑mount installation on walls or ceilings.
Product Specifications:
– Brand: Xpelair
– Model: VX120T
– Manufacturer Code: 93229AWW
– GTIN: 5013562932295
– Fan Type: Axial extractor fan
– Size: 120mm (5 inch)
– Speed: Single speed
– Air Extraction Rate:
– 32 L/s
– 116 m³/h
– Power Consumption: 23W
– Timer: Adjustable 30 seconds – 30 minutes
– Ingress Protection: IPX4
– Mounting: Wall or ceiling surface mount
– Material: White ABS plastic
– Voltage: 230V AC
– Frequency: 50Hz
– Dimensions:
– Height: 170mm
– Width: 170mm
– Depth: 90mm
– Impeller Diameter: 120mm
– Noise Level: Standard axial performance
– Guarantee: 2 years
Additional Features:
– Adjustable over‑run timer for controlled ventilation
– Suitable for bathrooms, toilets, shower rooms, and utility spaces
– IPX4 rating allows installation in wet zones
– Reliable AC motor for long service life
– Easy surface‑mount installation
– Square fascia for a clean, modern appearance
– Compatible with 120mm ducting systems
– Ideal for domestic and light commercial applications
