Description

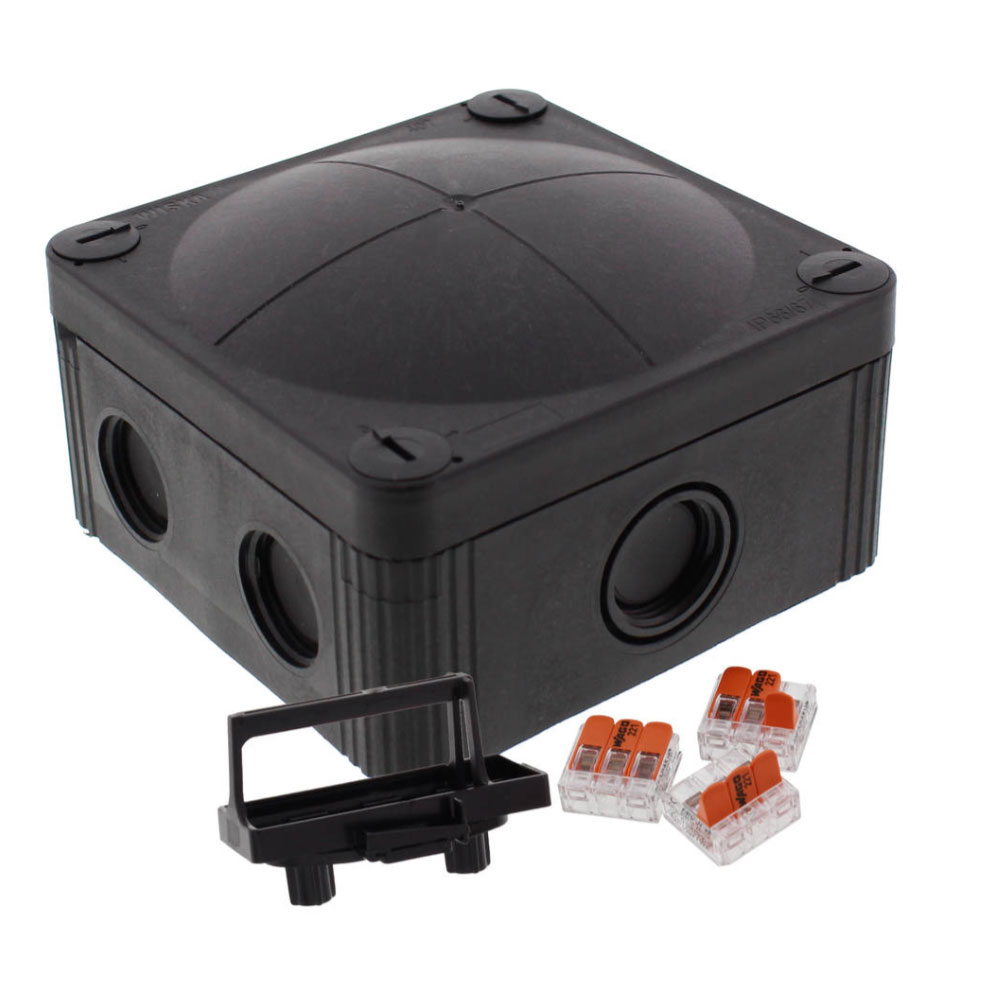

This black Combi 407 empty enclosure has been designed for extreme conditions both indoors and out. It consists of strong thermoplastic housing made from two separate plastic components with unique design ribbed corners and the unique WISKA bellied cover, that allows for 10% more installation space. It also features quick and secure closing, rust-free captive quick-release fasteners and the ability to close and seal the box with just a quarter turn. Protection against moisture and dust is ensured with high protection class of IP 66/67 and combined threaded and membrane entries allow for installation without tools or locknuts.
For use in commercial, industrial and domestic applications
Impact-resistant, shatter-proof, weather and UV-resistant, flame-retardant and halogen-free
Resistance to fats, mineral oil, diesel, weak acids, strong alkalis and alcohol
Can be mounted with mounting clips or internal openings outside the sealing area
Material sealing gasket: TPE
Temp. range min: -30°C
Temp. range max: 100°C
Temperatures during install: -5°C – 60°C
Protection class: IP66/IP67
Glow wire test: 750°C
Voltage: 690V
Rated cross section: 4mm²
Fixing: 4 internal openings
Ø cable diameter min: 3mm
Ø cable diameter max: 12mm
