Description

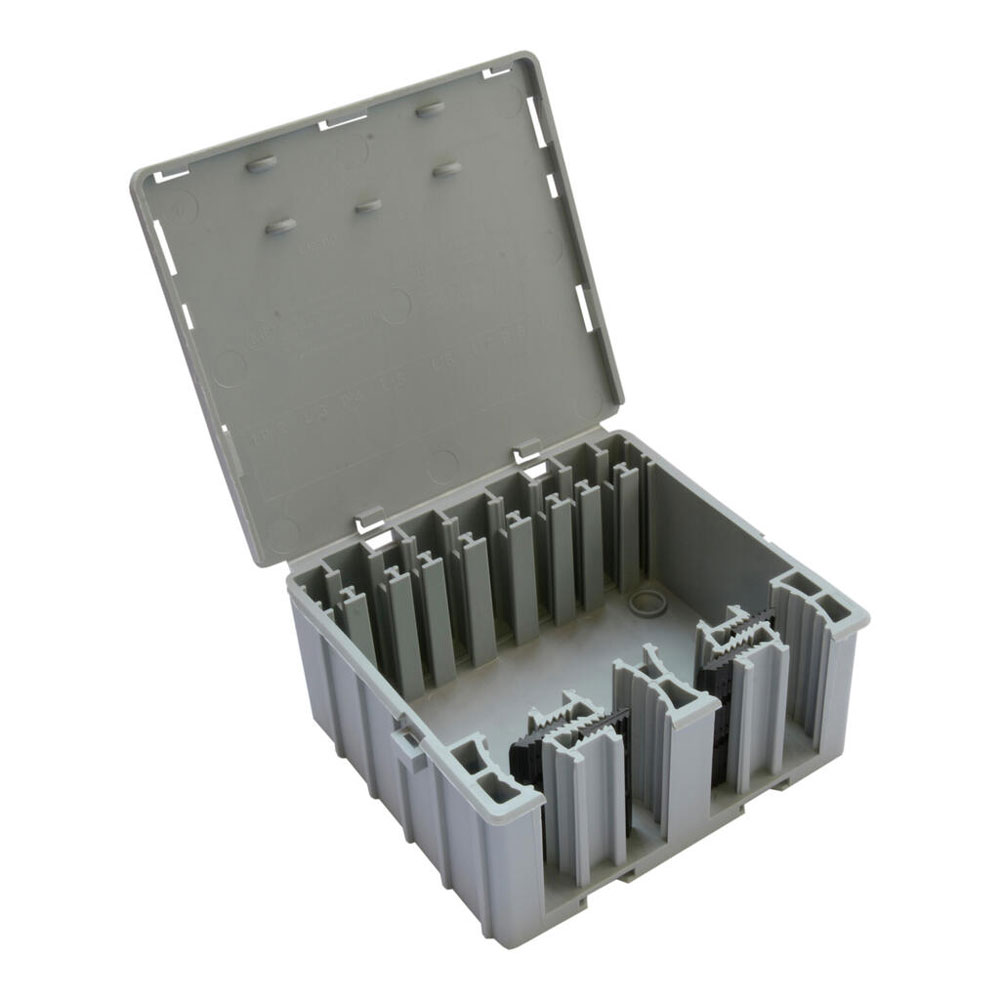

The WAGOBOX® XL junction box is designed for use with the WAGO 221 and 2773 series connectors. The WAGOBOX® XL junction box is rated 450V/4KV and can support conductor sizes from 0.14mm² to 4mm².
The maximum number of supported individual conductor connections is 36. Each cable clamp can grip cables with an overall diameter between 3mm and 15mm.
General purpose electrical enclosure designed for use with WAGO 221 and 2273 series connectors (not included)
The WAGOBOX XL junction box is rated at 450V/4KV and can support conductor sizes from 0.14mm² to 4mm²
Fast fit slide action mounting point so the box can be fixed to a surface after the connectors have been fitted into the box by using the WAGOBOX mounting button which is included
Time saving installation
Can be used in maintenance free applications
125mm x 55mm x 115mm (W x H x D)
IPX2 IP rating
Manufacturers part 60339091
