Description

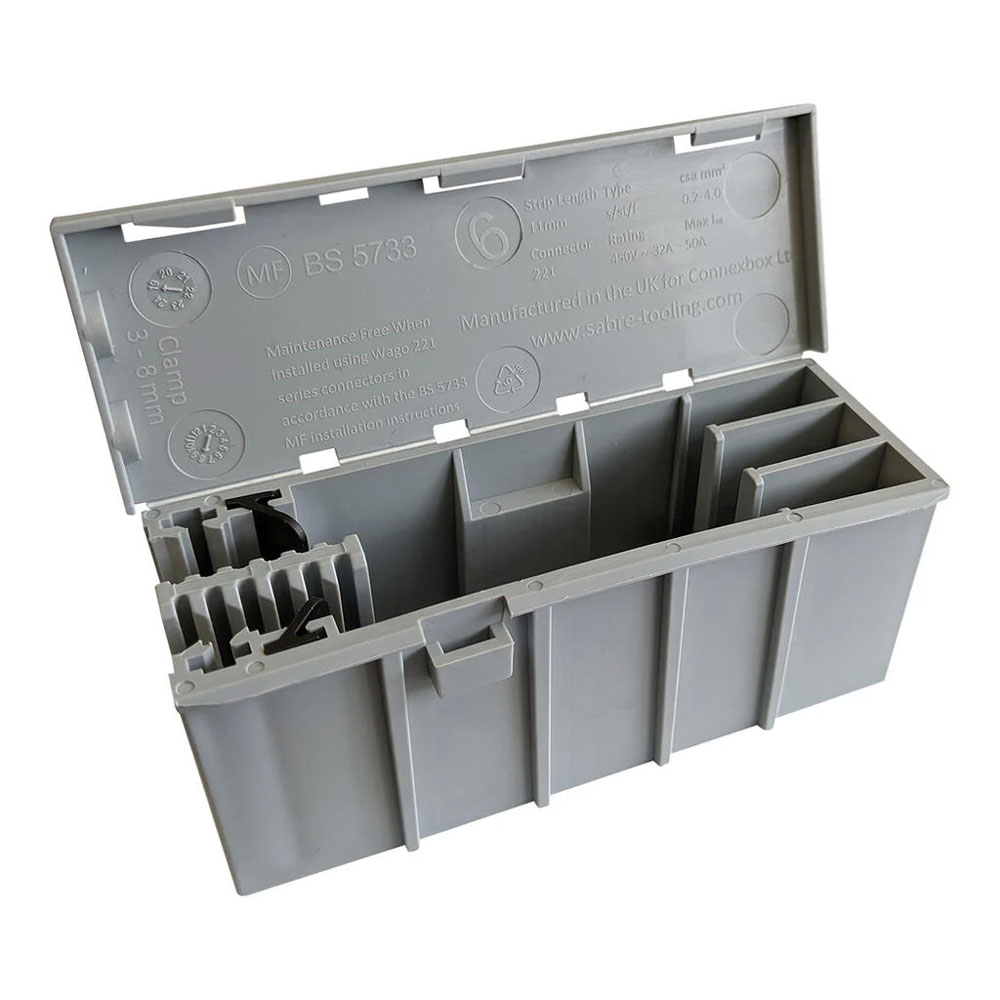

The WAGOBOX® 221-4 enclosure is designed for use with the WAGO 221-4xx series connectors. The WAGOBOX® 221-4 is rated 400V/4KV and can support conductor sizes from 0.2mm² to 4mm².
The maximum number of supported individual conductor connections is 20. Each cable clamp can grip cables with an overall diameter between 3mm and 8mm.
General purpose electrical enclosure designed for use with WAGO 221 series connectors (not included)
The WAGOBOX 221-4 is rated at 400V/4KV and can support conductor sizes from 0.2mm² to 4mm²
Fast fit slide action mounting point so the box can be fixed to a surface after the connectors have been fitted into the box by using the WAGOBOX mounting button which is included
Time saving installation
Can be used in maintenance free applications
39mm x 44mm x 108mm (W x H x D)
IPX2 IP rating
