Description

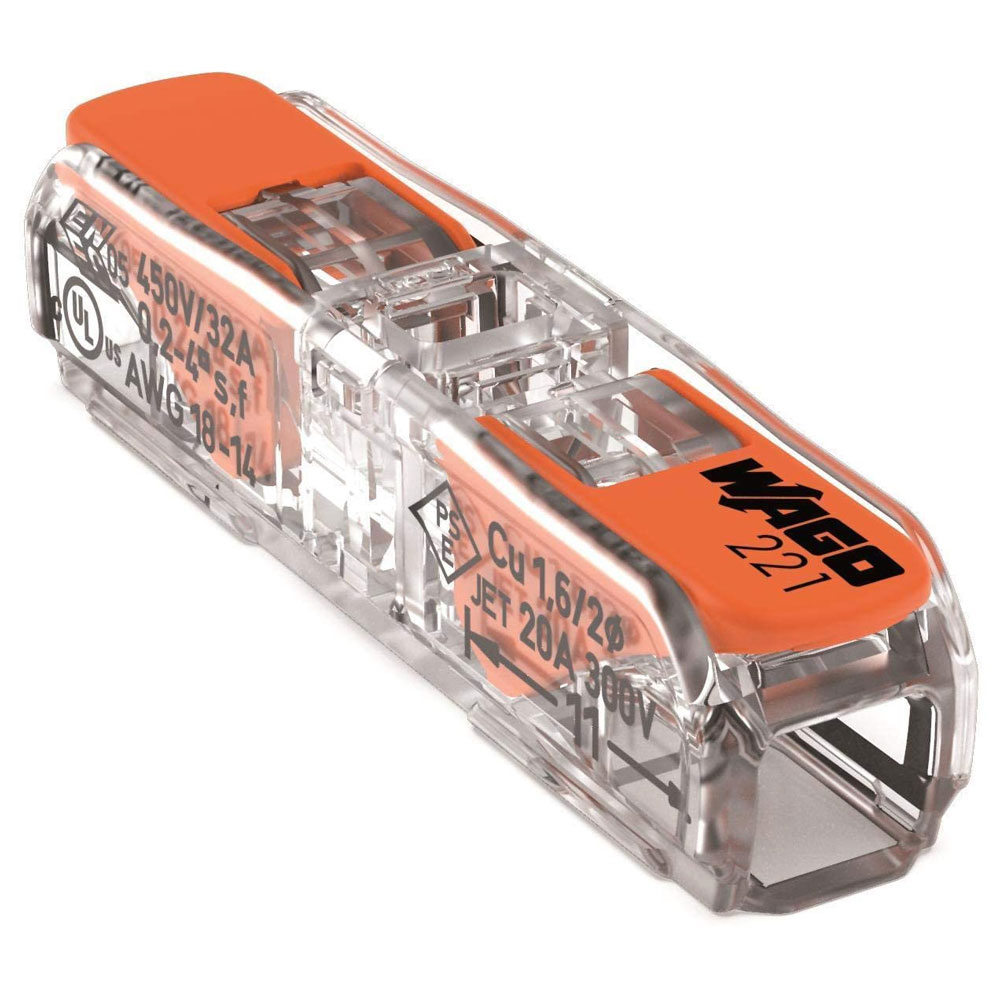

Inline connecting box terminal with lever for solid conductors with a maximum diameter of 4 mm2. With two connection points. Suitable for installation anywhere in the world.
Properties:
Convenient connection due to extremely compact design
Cross-section range: 0.2-4 mm²
Solid, multi-wire and fine stranded wires can be connected
CAGE CLAMP connection
Operating temperature up to 105 °C
The package contains 60 pieces
Values according to IEC/EN
Rated voltage 450 V
Rated impulse voltage 4 kV
Voltage overload category II/2
Rated current 32 A
Values according to UL
Certificates according to UL 486C
Rated voltage (UL) 600 V
Rated current UL 20 A
