Description

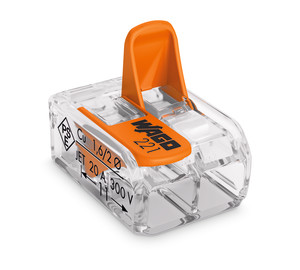

For all conductor types; max. 6 mm²; 2-conductor; with levers; transparent housing; Surrounding air temperature: max 85°C (T85); 6,00 mm²; transparent
Ease of use – pull the lever up, insert a conductor and push the lever back down
Available as 2-, 3- and 5-wire connectors
Easily terminate conductors from 0.5 to 6 mm²
Connection of all conductor types
Time savings for installers and device manufacturers
Quickly install devices with higher levels of power consumption
Safely install long cable runs with larger conductor cross sections
Mounting carrier for installation conforms to standards
Custom carriers are possible
Electrical data
Ratings per IEC/EN 60664-1
Ratings per EN 60664
Rated voltage (II / 2) 450 V
Rated impulse voltage (II / 2) 4 kV
Rated current 41 A
Legend (ratings) (II / 2) ≙ Overvoltage category II / Pollution degree 2
Approvals per UL 1059
Rated voltage UL (Use Group C) 600 V
Rated current UL (Use Group C) 30 A
Approvals per UL 486C
Connection data
Connection technology CAGE CLAMP®
Actuation type Lever
Connectable conductor materials Copper
Nominal cross section 6 mm²
Solid conductor 0,5 … 6 mm² / 20 … 10 AWG
Stranded conductor 0,5 … 6 mm² / 20 … 10 AWGFine-stranded conductor 0,5 … 6 mm² / 20 … 10 AWGStrip length 12 … 14 mm / 0.47 … 0.55 inchTotal number of connection points 2Total number of potentials 1Type of wiring Side-entry wiring
More
Geometrical Data
Width 16 mm / 0.63 inch
Height 10,1 mm / 0.398 inch
Depth 21,1 mm / 0.831 inch
Material Data
Color transparent
Flammability class per UL94 V2
Weight 3 g
Environmental Requirements
Surrounding air (operating) temperature 85 °C
Continuous operating temperature 105 °C
T-Marking per EN 60998 T85
Commercial data
Packaging type BOX
Country of origin CH
GTIN 4055143704168
Customs Tariff No. 85369010000
