Description

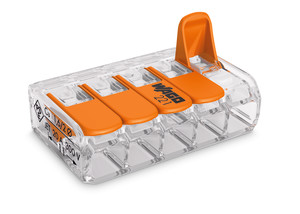

For all conductor types; max. 4 mm²; 5-conductor; with levers; transparent housing; Surrounding air temperature: max 85°C (T85); 4,00 mm²; transparent
Ease of use – pull the lever up, insert a conductor and push the lever back down
Available as 2-, 3- and 5-wire connectors
Easily terminate conductors from 0.14 to 4 mm²
Connect solid, stranded and fine-stranded conductors
Time savings for installers and device manufacturers
Quickly install devices with higher levels of power consumption
Safely install long cable runs with larger conductor cross sections
Mounting carrier for installation conforms to standards
Custom carriers are possible
Electrical data
Ratings per IEC/EN 60664-1
Ratings per EN 60664
Rated voltage (II / 2) 450 V
Rated impulse voltage (II / 2) 4 kV
Rated current 32 A
Legend (ratings) (II / 2) ≙ Overvoltage category II / Pollution degree 2
Approvals per UL 1059
Rated voltage UL (Use Group C) 600 V
Rated current UL (Use Group C) 20 A
Approvals per UL 486C
Connection data
Connection technology CAGE CLAMP®
Actuation type Lever
Connectable conductor materials Copper
Nominal cross section 4 mm²
Solid conductor 0,2 … 4 mm² / 24 … 12 AWG
Stranded conductor 0,2 … 4 mm² / 24 … 12 AWGFine-stranded conductor 0,14 … 4 mm² / 24 … 12 AWGStrip length 11 mm / 0.43 inchTotal number of connection points 5Total number of potentials 1Type of wiring Side-entry wiring
More
Geometrical Data
Width 29,9 mm / 1.177 inch
Height 8,3 mm / 0.327 inch
Depth 18,6 mm / 0.732 inch
Material Data
Color transparent
Flammability class per UL94 V2
Weight 4 g
Environmental Requirements
Surrounding air (operating) temperature 85 °C
Continuous operating temperature 105 °C
T-Marking per EN 60998 T85
Commercial data
Product Group 7 (Push Wire Conn.)
Packaging type BOX
Country of origin DE
GTIN 4055143234658
Customs Tariff No. 85369010000
