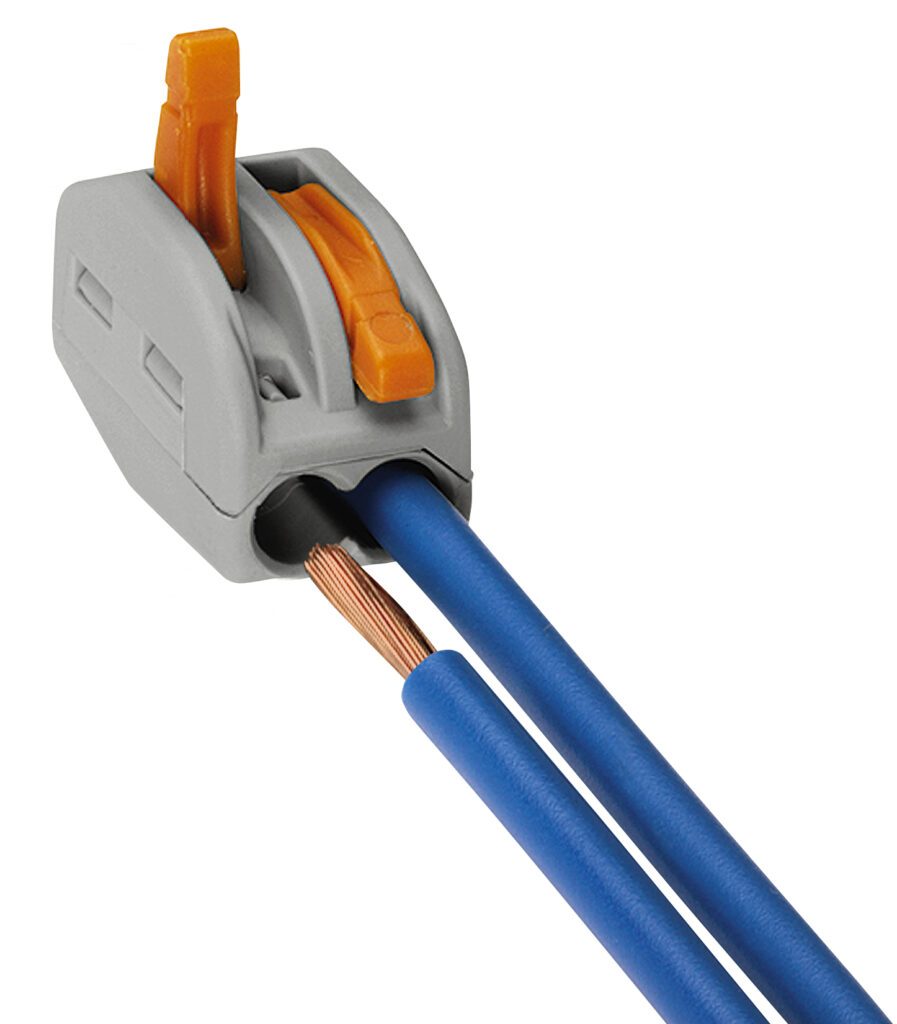

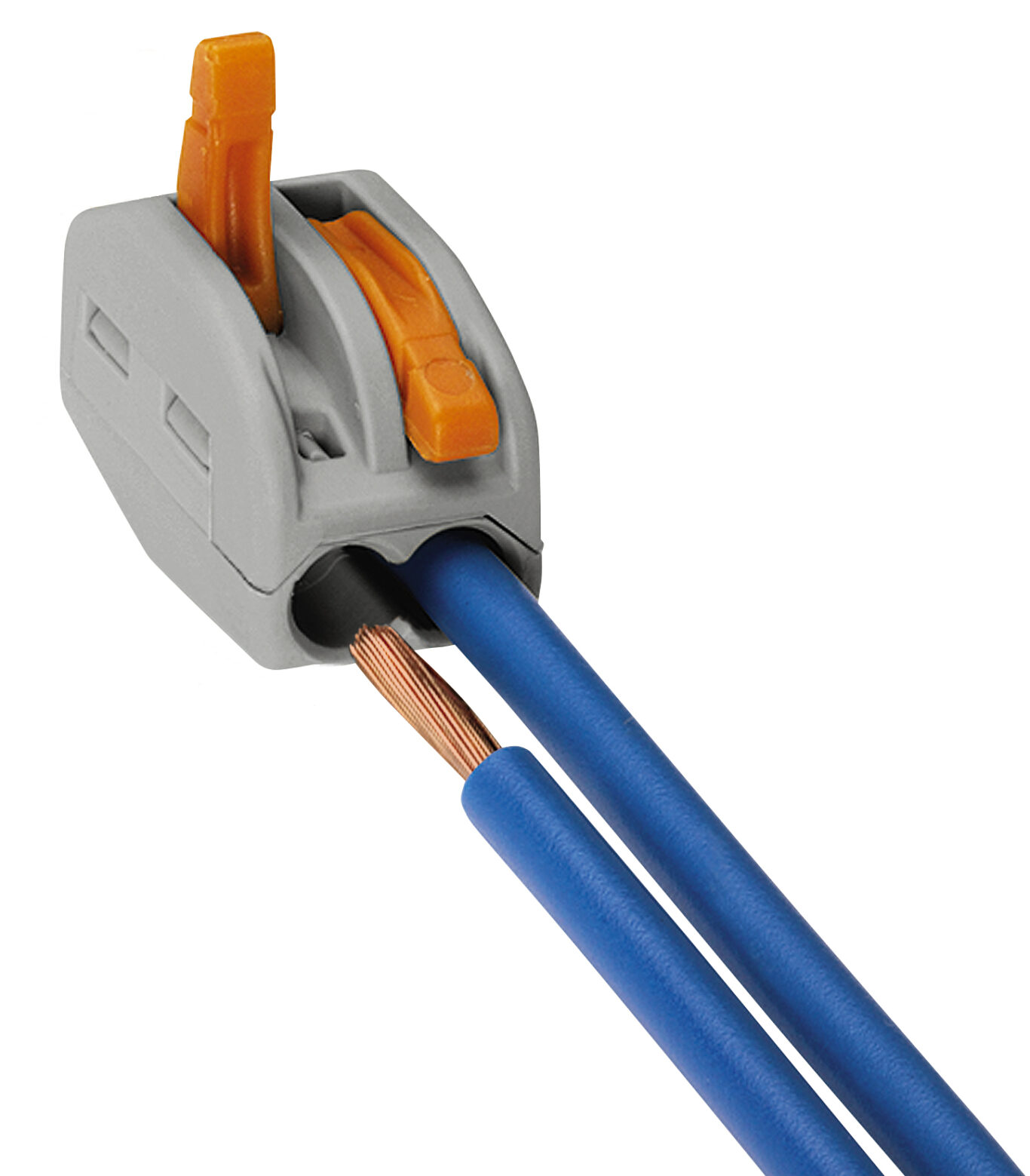

Description
For All Conductor Types; Max. 4 mm²; 2-conductor; with levers; gray housing; Surrounding air temperature: max 40°C; 2,50 mm²; gray
Electrical data
Ratings per IEC/EN 60664-1
Ratings per EN 60664
Rated voltage (II / 2) 400 V
Rated impulse voltage (II / 2) 4 kV
Rated current 32 A
Legend (ratings) (II / 2) ≙ Overvoltage category II / Pollution degree 2
Connection data
Connection technology CAGE CLAMP®
Actuation type Lever
Connectable conductor materials Copper
Solid conductor 0,08 … 2,5 mm² / 28 … 12 AWG
Stranded conductor 0,08 … 2,5 mm² / 28 … 12 AWG
Fine-stranded conductor 0,08 … 4 mm² / 28 … 12 AWGStrip length 9 … 10 mm / 0.35 … 0.39 inchTotal number of connection points 2Total number of potentials 1Type of wiring Side-entry wiring
More
Geometrical Data
Width 12,4 mm / 0.488 inch
Height 14,5 mm / 0.571 inch
Depth 20,5 mm / 0.807 inch
Material Data
Color gray
Flammability class per UL94 V0
Fire load 0.067 MJ
Weight 3.1 g
Environmental Requirements
Surrounding air (operating) temperature 40 °C
Continuous operating temperature 85 °C
Commercial data
Packaging type BOX
Country of origin DE
GTIN 4050821346470
Customs Tariff No. 85369010000
