Description

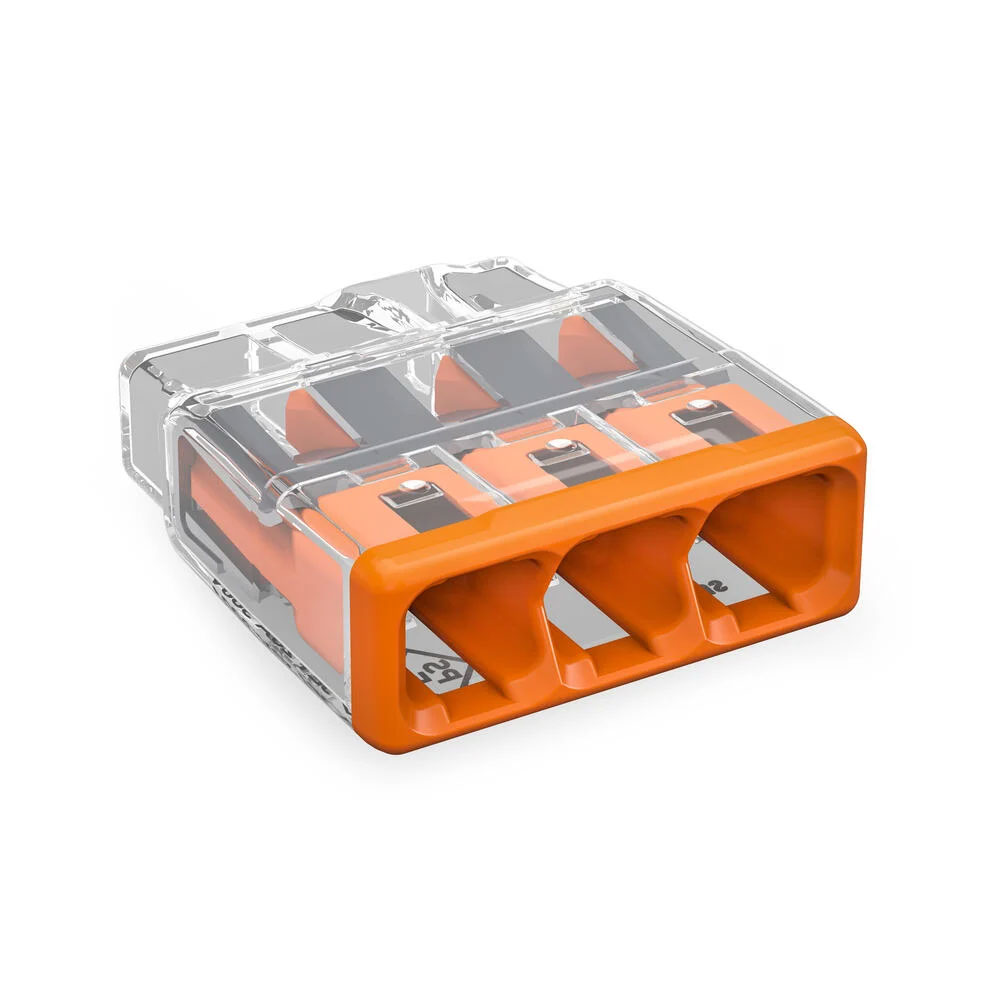

The 2773 Series connector from WAGO offers convenient wiring in a compact design.
These connectors can be used with solid copper or 7 stranded conductors. They are easy to use by simply pushing the stripped conductor into the connector. Once the conductor is pushed in fully, the connector grips and terminates the conductor. This simple system saves time on installations and ensures a good connection is made that can be visually checked using the transparent case.
The 2773 series, is available in 2, 3, 4, 5, 6, and 8 connector versions.
Quick and simple to use
3 Wire connectors
Easily terminate conductors from 0.75 4 mm² 20>12 AWG (solid) or 1.5 4mm² 20>12 AWG (stranded)
Side entry wiring
Connection of all conductor types
Current rating 32A
Transparent colour with orange cover
16.4mm x 6.3mm x 18.6mm (W x H x D)
UL94 V2 flammability class 0.014MJ
