Description

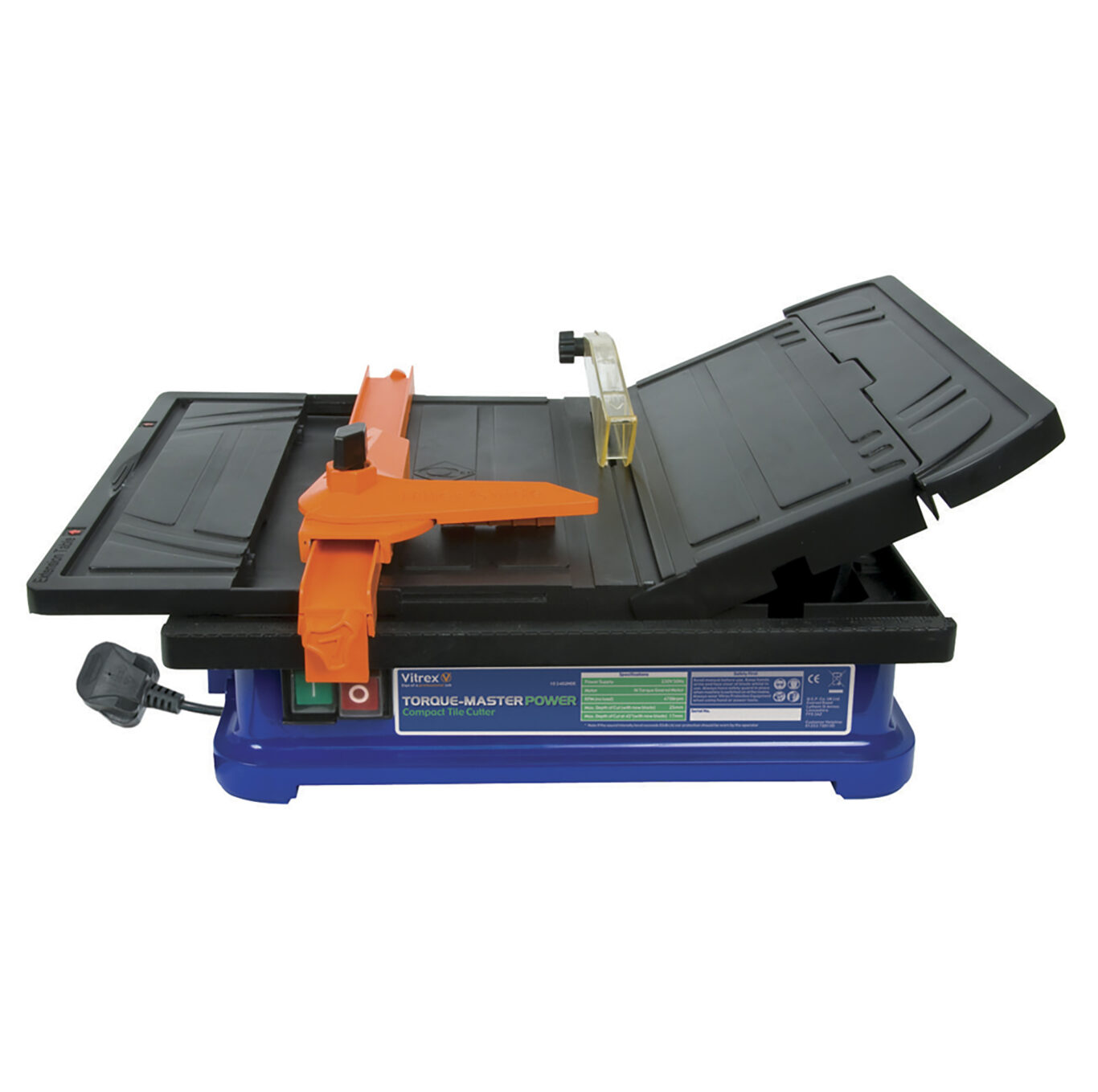

Versatile Power Max tile cutter with adjustable double extension arms to support large format tles. The cutting table tilts for mitre cuts and there is a water cooling system with a large reservoir.
560W hi-torque direct drive motor produces a constant cutting speed for ultra smooth cuts
Thermal overload protection to prevent overheating
ø180 x 16mm diamond blade with continuous rim for extra clean cut
Adjustable double extension arms to support larger format tiles
Cutting table tilts for mitre cuts
Integral ruler and adjustable rip guide for perfect straight cuts
Mitre guide for cutting tiles to any angle
Water cooling system with large reservoir
Transparent wheel guard with variable height adjustment
Moulded 3 pin plug with 1.5m cable
Blade carrier is reversible for both 16mm and 22mm bore sizes
Quick release splash guard for plunge cuts
Replacement rip guide code: 1413RG
Code: WS560180
Power Supply: 230V 50Hz
Motor: 560W
Speed (no load): 3000rpm
Max Sound Level: 95dB(A)
Max Depth Cut (new blade): 30mm
Max Depth Cut at 45° (new blade): 17mm
