Description

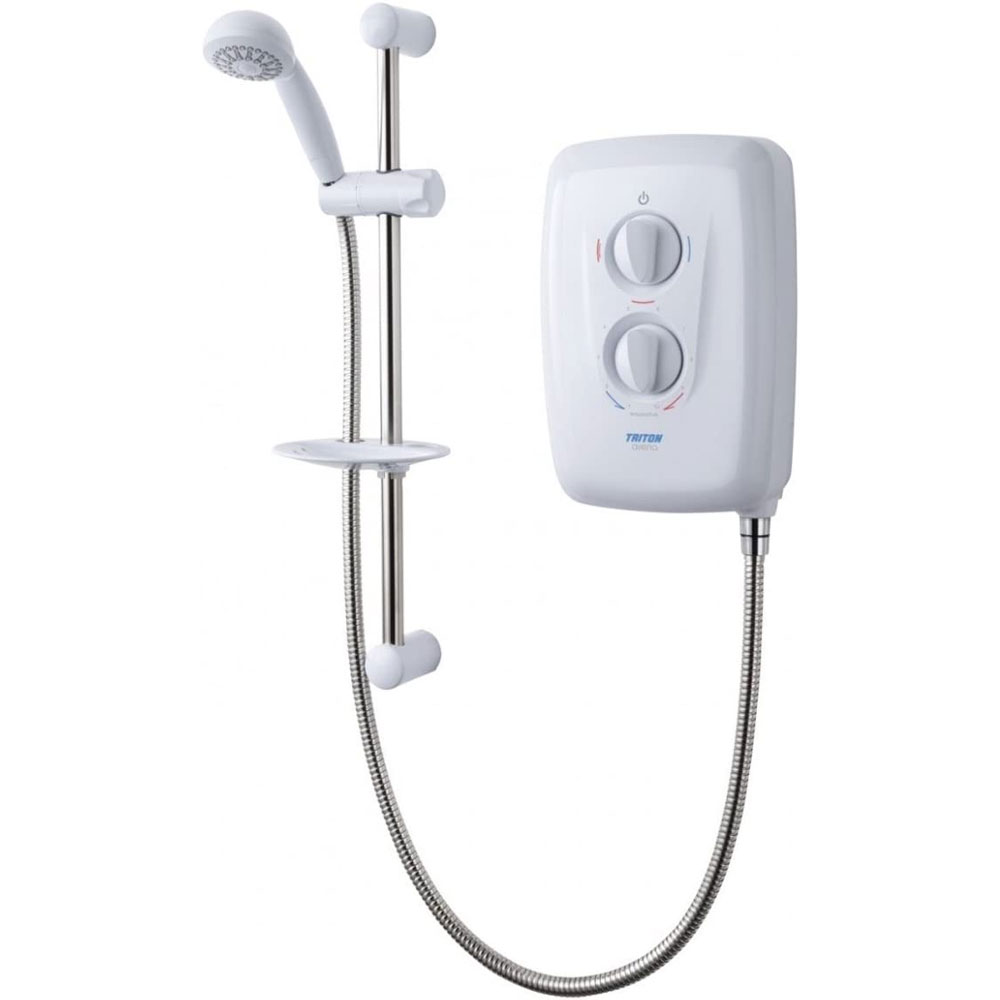

This original T80Z model offers flexible installation options and a great showering experience, featuring Triton’s ‘Swiv-let™’ 180° reversible water inlet for left or right hand side water entry. This flexibility makes the T80Z an ideal retrofit shower.
Multiple cable and water entry points – Left or right hand side water entry*
Rub clean shower head – Five spray patterns
Start/ Stop to select your favourite shower setting every time
Low pressure indicator – operates when the water pressure is insufficient
1 year parts and labour guarantee>
Will replace T80Z Eco, T70Z
TEMPERATURE CONTROL AND FLOW PERFORMANCE
Temperature Control Stabilised
Power Ratings 7.5kW; 8.5kW; 9.5kW; 10.5kW
SAFETY
Installation Set Maximum Temperature Limit No
Phased Shutdown No
Low Pressure Indicator Yes
CONTROLS
Start/Stop Button Yes
Combined Start/Stop and Power Control No
Rotary Power Control Yes
Push Button Power Control No
Temperature Control Yes
Power on Indicator Yes
Installation Set Timer Setting No
Audible Alerts No
SHOWER FITTINGS
Number of Showerhead Spray Patterns 5
Shower Head Diameter 110mm / 4 inches
Rub Clean Nozzles Yes
Rail Diameter 20.6mm / 0.81inches
Rail Length 530mm / 20.87inches
Distance Between Rail Brackets 480mm / 18.90inches
Shower Head Holder Mechanism Push Button Release
Soap Dish Yes
Hose Length 1.25m
Hose Retainer Yes
Hose Material Double interlocked stainless steel
Colours Available White / Chrome
FINISH
Finish White/ Chrome
GUARANTEE AND APPROVALS
Guarantee 1 Year
Approvals BEAB,CE,BSIKitemark
INSTALLATION
Plumbing System Cold Mains
Water Entry Points Left Hand Side – Bottom Back : Right Hand Side – Top, Bottom, Back
Cable Entry Points Left – Top, Bottom, Back : Right (with ‘Z uni-fit kit’) – Top, Bottom, Back
Outlet Connection 1/2″ BSP
Minimum Running Pressure / Flow1 Bar @ 8 l/min : 1.5 Bar @ 11 l/min for 10.5kW
Maximum Static Pressure 10 Bar
