Description

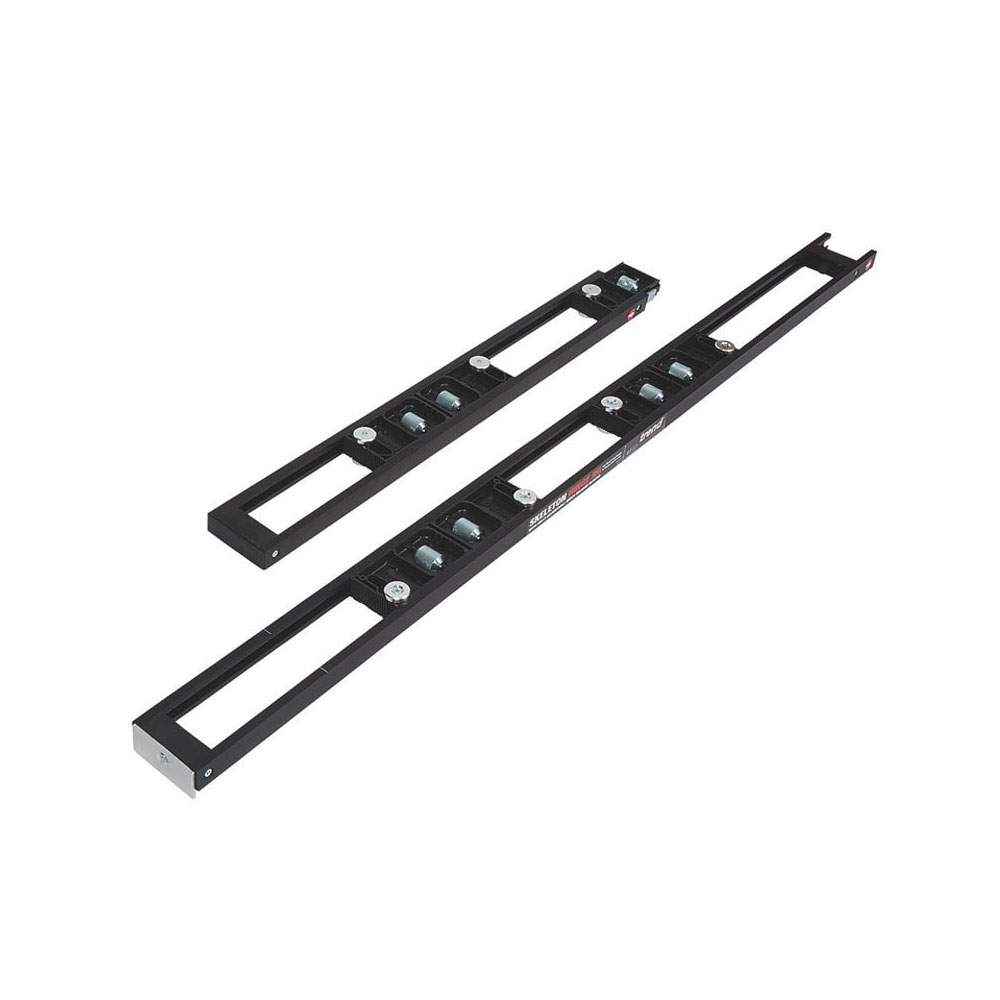

The Trend H/JIG/C 2 Part 20mm 25mm 30mm Skeleton Hinge Jig is an adjustable portable template set designed for recessing hinges in wooden doors and frames with a router. It is easy to use with minimal setting-up time, ensuring that the job can be completed accurately and quickly. It is ideal for use on-site and in joinery shops to increase productivity with excellent results. The jig has fully adjustable apertures for fire door requirements and renovation work. It is ideal for fitting a new door into an old frame and is suitable for timber-based doors and square butt hinges.
The jig is supplied with a carry case, bradawls and a special 16mm guide bush, making it ideal for professional and DIY use. Many hinge sizes are possible, minimum length is 67mm and the maximum length is 127mm and the minimum width is 12.7mm and the maximum width is 35mm.
Product Highlights:
Clean & Accurate Results
No Need for Marking Out
Fully Adjustable Apertures
Features and Benefits:
Quick & simple to set-up as the hinge is used as the pattern.
Ideal for fitting a new door in an old frame.
Excellent results.
Fully adjustable apertures.
Clean & accurate recesses are achieved every time. Suitable for timber based doors & square butt hinges.
Supplied with carry case.
Technical Specifications:
Preset hinge sizes – 20mm, 25mm and 30mm
Weight – 2.9kg.
Overall length – 1956mm.
Minimum Length – 67mm
Maximum Length – 127mm
Minimum Width – 12.7mm
Maximum Width – 35mm
Minimum door height – 1956mm
Maximum door height – 2100mm
Minimum door thickness – 16mm
Maximum door thickness – 51mm
Supplied With:
1 x H/JIG/C 2 Part Skeleton Hinge Jig.
4 x Apertures.
4 x Bradawls with Spacer.
1 x 16mm Guide Bush.
1 x Carry Case.
