Description

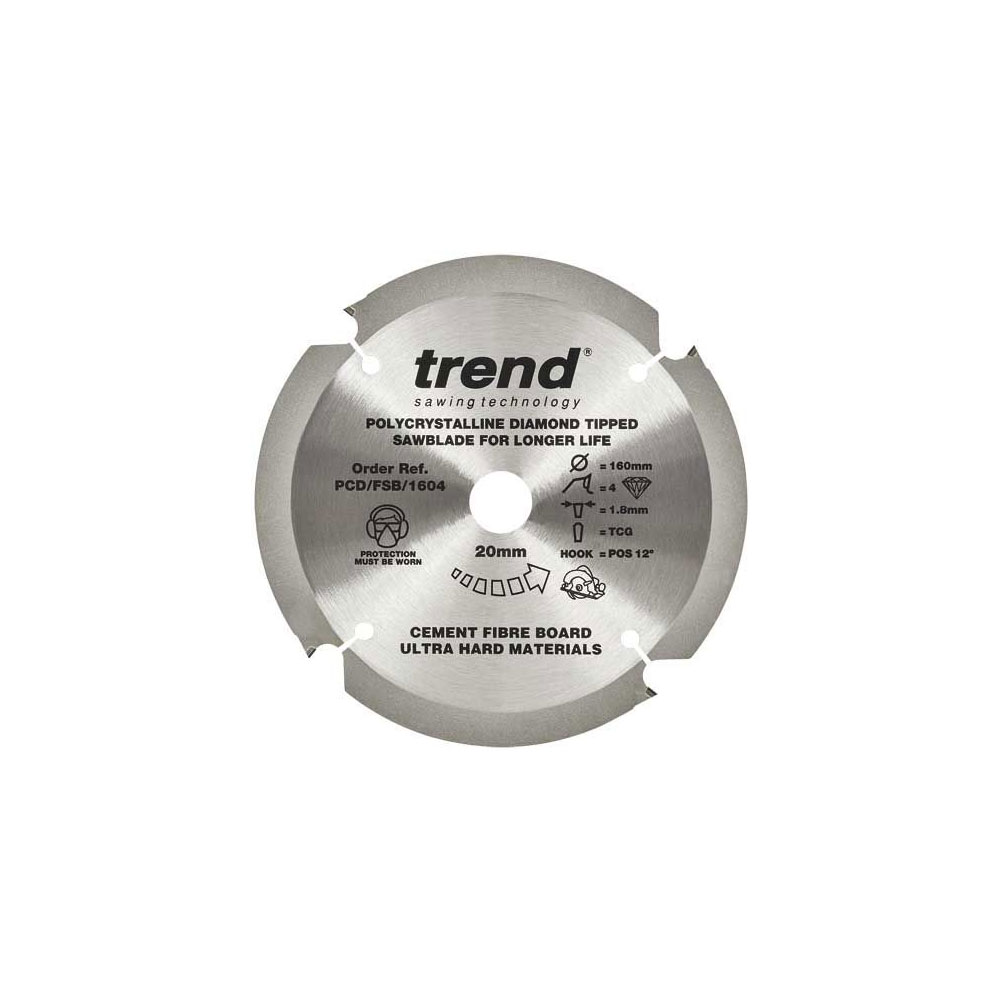

PCD sawblade for use on cement fibre board and tool-wearing material eg laminate, solid wood and ultra hard materials.
Precision EDM ground high-quality industrial polycrystalline diamond cutting tips.
Flat tooth with chamfer (Triple Chip Grind)
Specification:
D1=6 1/4 inches
D1=160 mm
Bore=20 mm
Kerf=1.8 mm
Plate thick=1.4 mm
No. of Teeth=4
Tooth form=TCG
Hook=12 degrees
Quick Selector No.=7.2
Cut Finish=Coarse
Max rpm=8000
It is recommended that the blade should not project more than 1mm out of bottom of subs
