Description

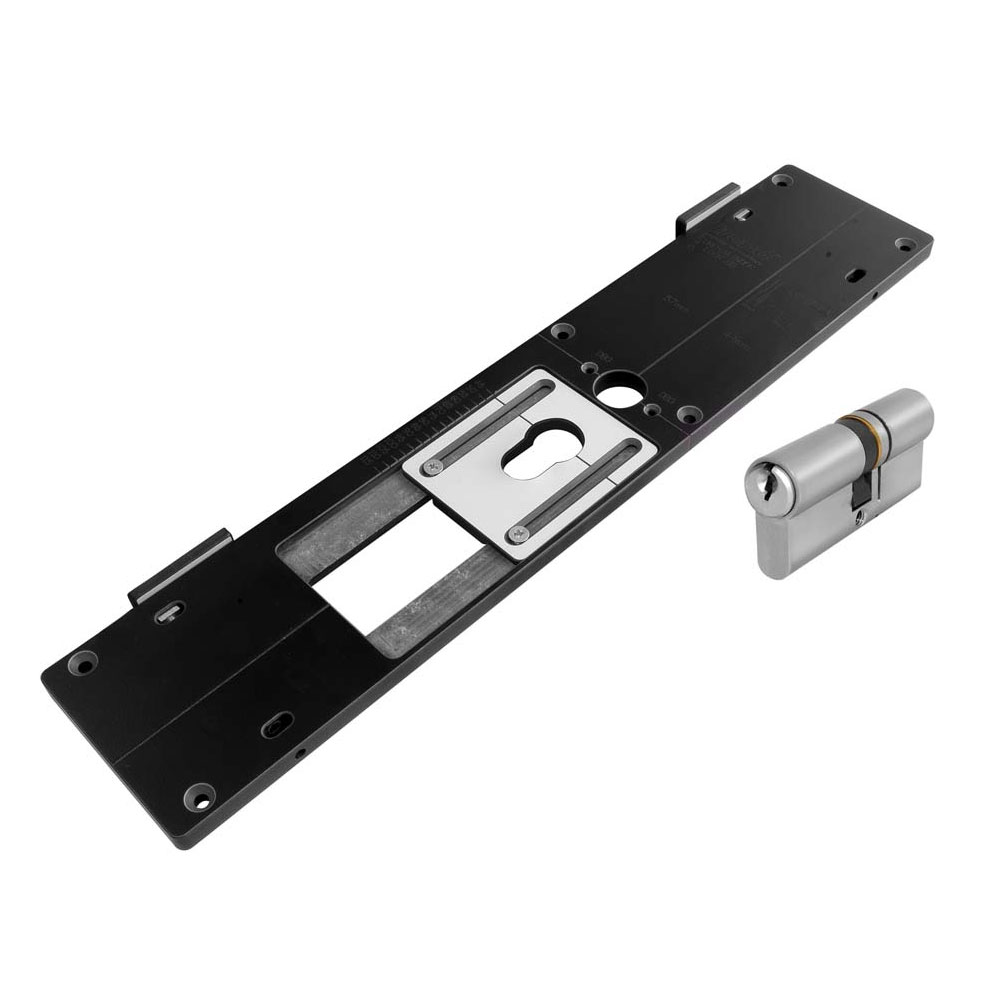

The Trend ECL/JIG is a Euro Cylinder Lock Barrel Jig . Ideal for professional carpernters / woodworkers.Routing jig to cut hole for Euro Cylinder Lock barrels. Routs out recess to suit Euro lock cylinder barrel size 33mm x 17mm/10mm. Sliding plate allows handle pitch to lock body adjustment from 45mm to 115mm. 44mm and 57mm backset. Jig is designed to give
Features and Benefits:
Routing jig to cut hole for Euro Cylinder Lock barrels.
Routs out recess to suit Euro lock cylinder barrel size 33mm x 17mm/10mm.
Sliding plate allows handle pitch to lock body adjustment from 45mm to 115mm.
44mm and 57mm backset.
Jig is designed to give
Technical Specification:
Brand – Trend
Barrel size=33 mm x 17/10 mm
Finished hole size=35mm x 19/12 mm
Backset=44 mm & 57 mm
Handle spindle hole=16 mm
Size=490 mm x 101 mm
Supplied With:
Euro Cylinder Lock Barrel Jig
