Description

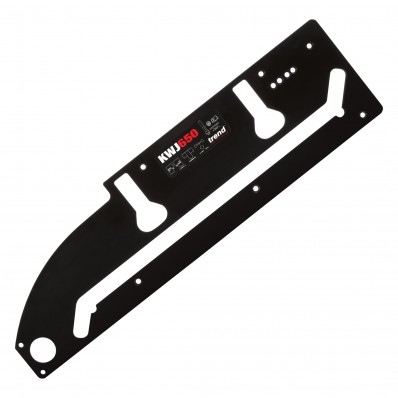

Hard wearing CNC machined Compact Grade High Pressure Laminate 12mm thick jig that cuts both parts of the joint in 15 minutes including setting up.
Left hand and right hand corners, 400mm radius peninsular joint, 35mm kitchen door hole.
Fixed lengths for 600mm, 616mm, 635mm and 650mm wide worktops.
Cuts up to 40mm thick worktops with or without anti-drip postformed edge.
Two open ended bolt recesses (dog bone style) for 150mm bolts.
10mm diameter plastic pins with tapered shoulder for tight fit provides three point pin contact to ensure ease of setting up.
Pins made from ABS plastic for strength.
Length 880 mm
Width 233 mm
Thickness 12 mm
Weight 3.3kg
Female cut material width loss (inset) 33 mm
Curved Peninsular Radius 400mm
Bolt recesses 2
Guide bush 30 mm
Plunge router 1/2-inch (min. 1300 watts)
Cutter 12.7 mm x 50 mm cut
