Description

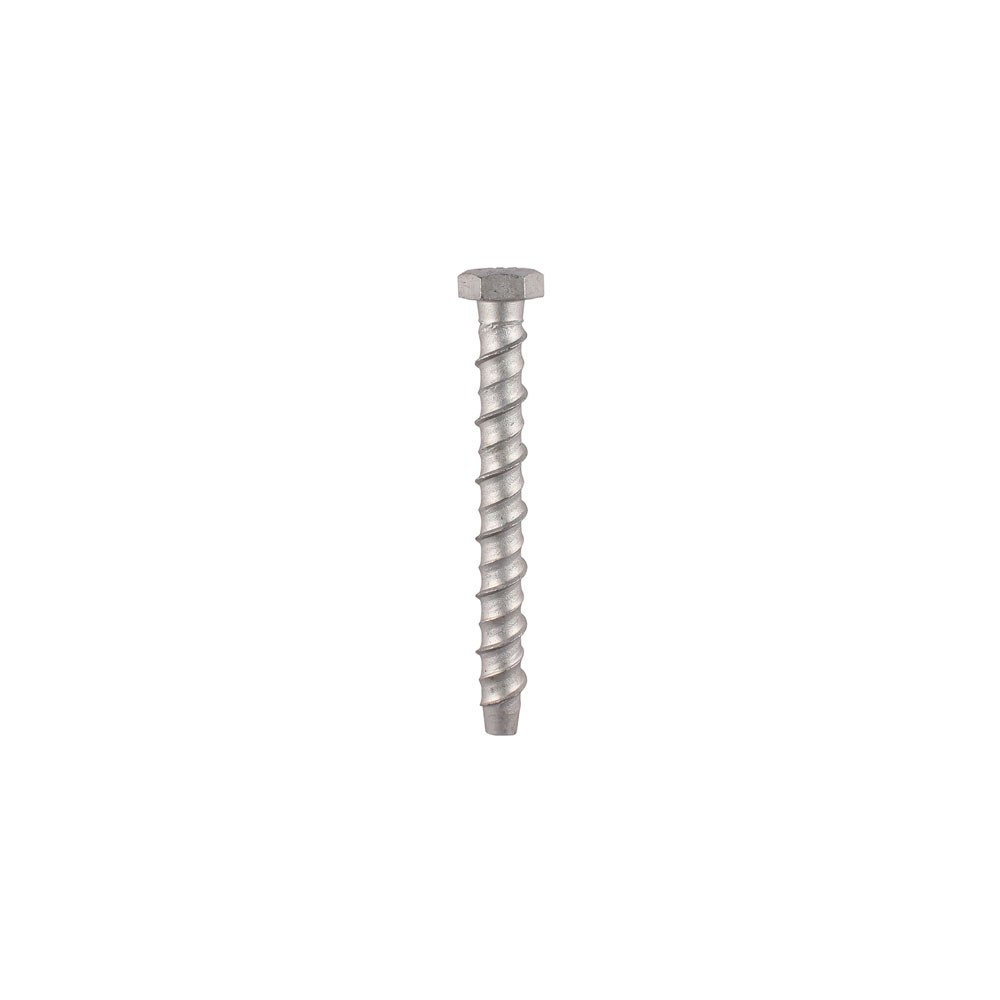

Timco MF1075 Multi Fix Masonry Bolts Hex Head 10 X 75 mm
This stress free, non-expansion through fixing is the new solution for heavy duty anchoring into concrete, brick, stone, wood and concrete block replacing the need for traditional anchors such as throughbolts, shield, sleeve and drop-in anchors.
Designed to replace traditional expansion anchors
TIMCO micro plating technology gives a higher resistance to corrosion and enhances speed of installation
High-Low parallel threads for ease of insertion and high pull-out values
Removable & adjustable non-expansion through fixing
Unique concave thread configuration
All steel, non-flammable fixing conforming to BS 7671 standard’s 18th edition, which requires wiring systems to be supported by materials which are unlikely to prematurely collapse in the event of a fire.
Specification:
Point Type: Chamfered
Socket Size: 17 mm
Size Ø x L: 10 x 75 mm
Pack Weight: 2.826 kg
Thread Type: High-Low Parallel
Pack Dimensions L x W x H: 162 x 138 x 86 mm
Drill Hole Ø: 10 mm
Substrates: Wood, Concrete, Brick, Block, Stone
Finish: Exterior (Silver Organic)
Head Type: Hex
Fixture Hole Size Ø: 12 mm
