Description

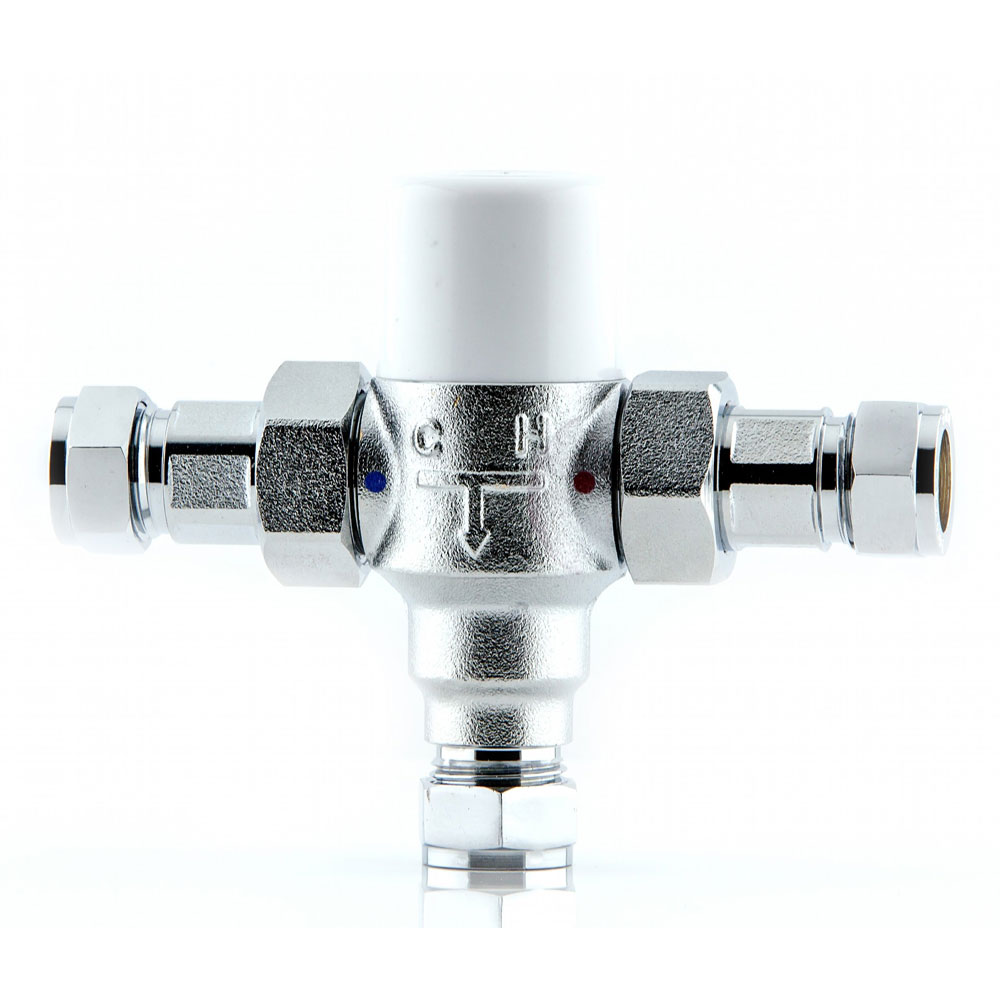

The Tower TMV is designed to blend the hot and cold water supplies to a maximum set temperature. Chrome plated with compression fittings, removable 0.6mm filters and single non-return valves on inlets.• 15 mm compression fittings
• Outlet Temp. 35 – 50°C (Tamperproof ajustment)
• Accuracy /- 2°C
• Max Hot Temp. 85°C
• Supply Temp. Hot 52 – 65°C
• Supply Temp. Cold 5 – 20°C
• Min Supply Pressure 0.2 bar dynamic
• Max Supply Pressure 10 bar static
• Max Differential Pressure 10:1 (between Hot & Cold)
(Differential pressure example: -:- Pressure=1 bar Max. Diff=0.1 bar)
• Filter 600um (0.6mm) Hot & Cold inlets
