Description

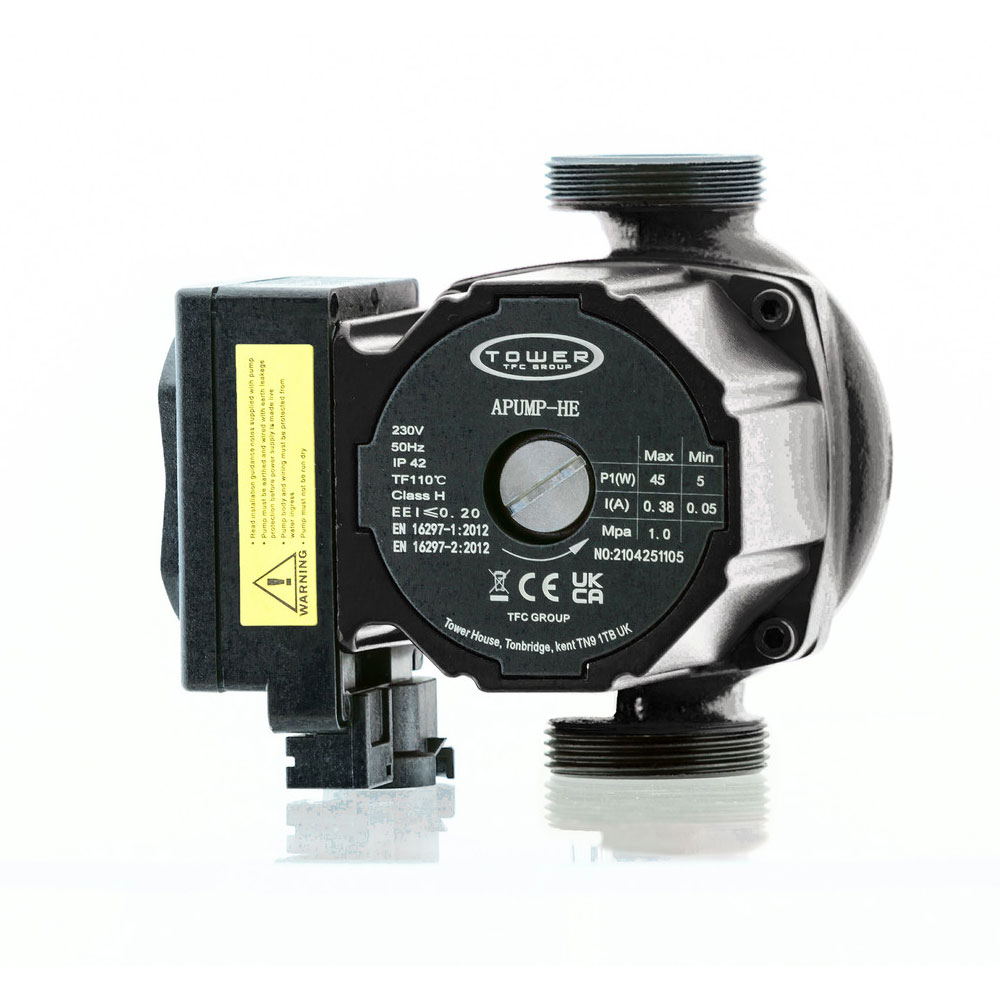

High-efficiency permanent magnet central heating pump
Equipped with a differential pressure controller
Continuously adjusts input power to match system requirement.The APUMPHE is a high-efficiency permanent magnet canned-motor central heating pump, for circulation of the primary water in a domestic heating system. Equipped with a differential pressure controller, the APUMPHE (when in auto setting) continuously adjusts its power input according to system load, to match the pump power to the system requirement. Alternatively, if required the installer or user can set the pump on a constant speed setting, between Min—Max levels.
Specification:
Dimensions: 130 x 130 x 128mm
Connection: 1.5” G1 (BSP) threaded flange
130mm Across Ports
Output: Max. 6m head
Max Flow Rate: 3.0 L³/ hour
Power: Auto-adjusting, 5—45 Watts
Noise level: < 43 dB(A)
Max Flow Rate: 3 cubic Ltrs/hour
ERP Compliant
E.E.I. < 0 .20
