Description
Speed-prongs allow easier attachment
Face fix or wrap over applications
Technical approvals : ETA-06/0270

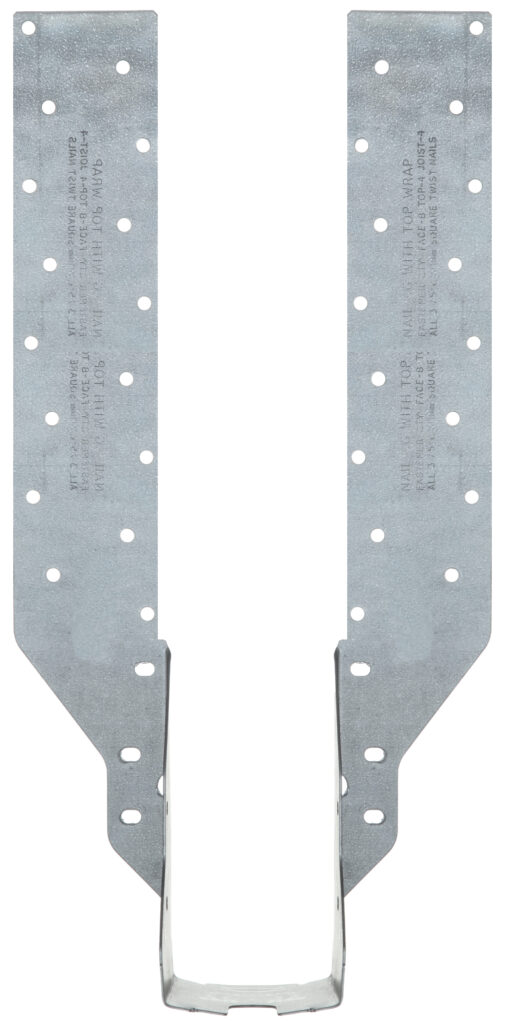

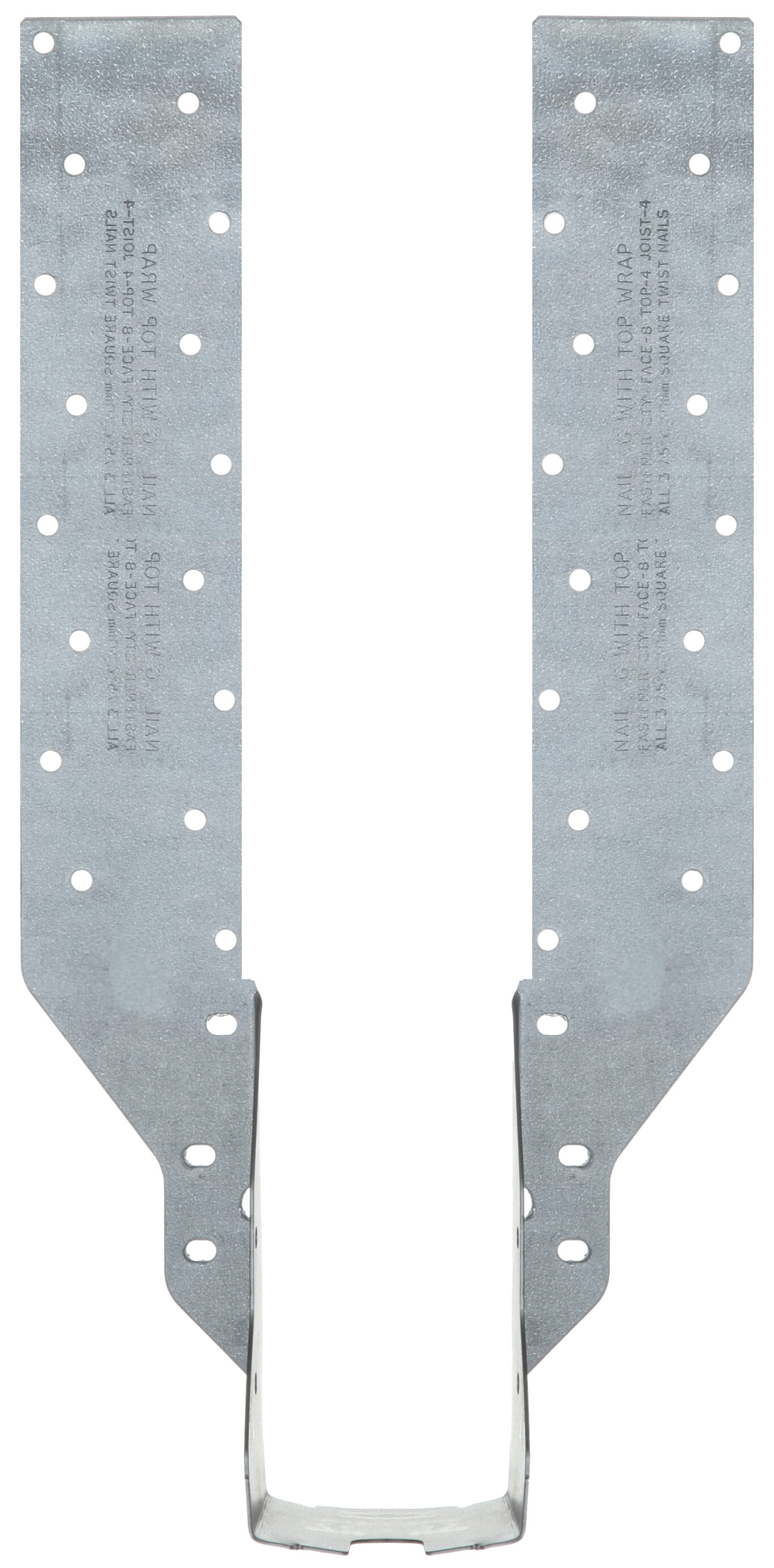

The Simpson JHA270 joist hanger is a height adjustable joist hanger for supporting timber joists from timber members. The Simpson Strong-Tie JHA is made from pre-galvanised mild steel and has European Technical Approval for use in construction. The JHA270 (short leg) version features speed-prongs for easy attachment.
Galvanised joist hanger that provides ease of installation
Published performance values are based on 3.75x30mm twist nails
Wider strap for greater surface area & allows increased nail spacing
Min. and max. nailing schedules are stamped into the strap
Speed-prong holds the hanger in position for easy attachment
JHA270 range features a location tab for easier alignment
The model number & size are stamped into the seat of the hanger
Specifics
Hanger width (A): 47mm (1 x 45mm joist)
Stirrup height (B): 101.5mm
Depth (C): 50mm
Led width (D): 48.8mm
Height (E): 236.5mm
Thickness (t): 0.9mm
