Description
Suitable for use with solid or I-joist headers
Fully tested on a range of solid headers
Light duty joist hanger

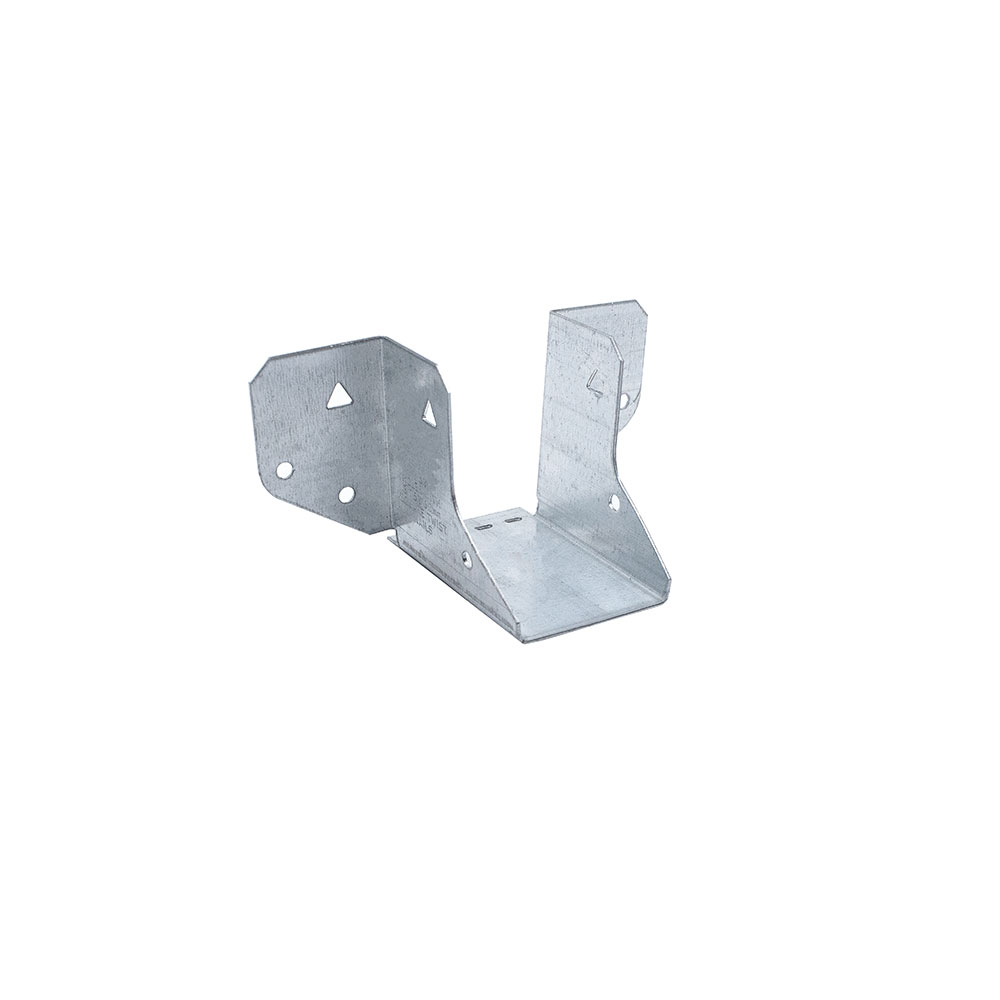

The Simpson MH mini hanger is a one-piece galvanised joist hanger for light duty applications such as trimmers and ceiling joists of rectangular section. The MH is suitable for use with solid or I-joists and can also be used to build decking platforms. The hanger depth should be at least 60% of the carried member depth to prevent rotation, if less than 60% additional lateral restraint is required to the top of the carried member.
Technical Data
Declarations of Performance: UK-DoP-e06/0270
Technical approvals: ETA-06/0270
Technical data sheet
Features
Suitable for use with solid or I-joist headers.
Tab on seat ensures easy and accurate placement with easy bend feature when not required
Fully tested on a range of solid headers
Hanger depth is to be at least 60% of the carried member depth
Specifics
Width (A): 50mm
Height (B): 50mm
Depth (C): 56mm
Leg width (D): 32mm
Thickness (t): 1.0mm
Header fixing holes: 4 x Ø4mm, 2 x triangular
Joist fixing holes: 2 x Ø4mm, 2 x triangular
