Description
Product Description:

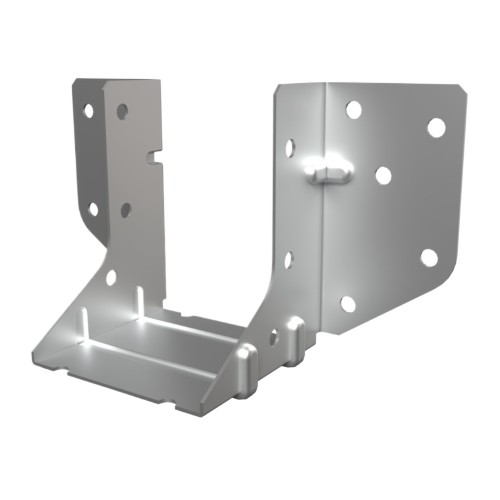

The Simpson Strong-Tie MHA50 Mini Joist Hanger is a light-duty galvanised steel connector designed for supporting 50mm wide timber joists in applications such as trimmers, noggins, and ceiling joists. Its one-piece construction ensures strength and ease of installation, while the pre-punched fixing holes allow for quick and secure attachment to timber headers.
Product Specifications:
Brand: Simpson Strong-Tie
Product Type: Mini Joist Hanger
Material: Pre-Galvanised Mild Steel
Width: 50mm
Height: 60mm
Depth: 45mm
Thickness: 0.8mm
Fixing Holes: 10 x Ø4.1mm (header), 6 x Ø4.1mm (joist)
Usage: Suitable for timber-to-timber connections in light-duty applications
Additional Features:
– One-piece design for added strength and simplicity
– Galvanised finish for corrosion resistance
– Compatible with solid timber, I-joists, and LVL
– Replaces older MH50 and LUP230/50 models
– Ideal for ceiling joists, trimmers, and noggins
