Description

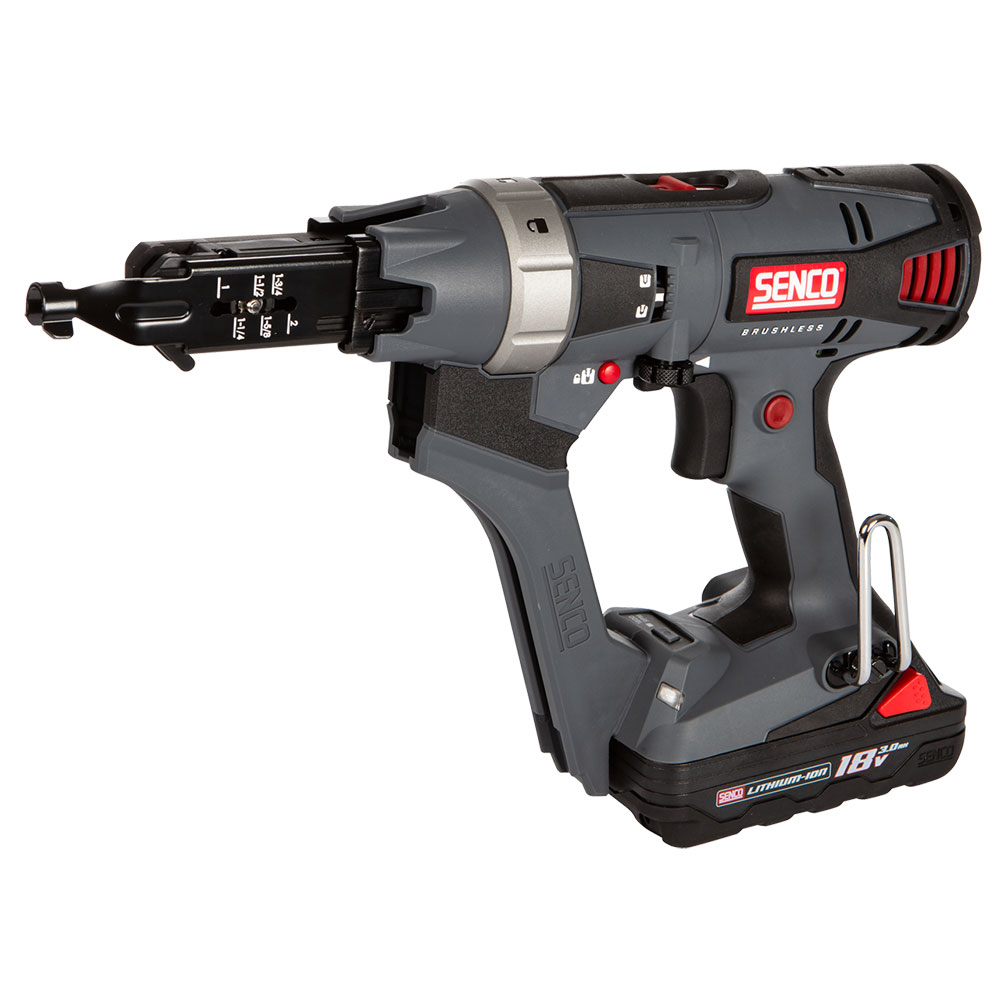

Powered by an efficient brushless motor, this high speed auto-feed screwdriver, a quick release feed system with our patented corner fit technology. The DS525 also features feed on return – the next screw is aligned with the bit for better line of sight and easier, more accurate screw placement.
Patented corner-fit feed system Detachable feed system to expose bit for quick reversing 5000 RPM high speed brushless motor Precise depth of drive adjustment with depth lock Quick slide button bit change Variable speed trigger with lock and reverse
Applications
Drywall (to wood or steel studs), Cement board, Underlayment, Sheating to steel, Metal framing, Structural steel decking, Rigid foam insulation
Length – 372 mm
Width – 86 mm
Height – 241 mm
Min. length fastener 1 – 25 mm
Max. length fastener 1 – 55 mm
Magazine capacity – 50 pieces
Includes case – Yes
Voltage (ac) – 230 V
Frequency – 50 Hz
Electrical plug type – UK
Rotations per minute (RPM) – 5000 RPM
Battery type – Li-Ion
Battery voltage – 18 V
Battery ampere rating – 3 Ah
Battery power – 54 W
Recharge time 80% – 15 minutes
Recharge time 100% – 45 minutes
Shots per charge – 2000
Number of batteries in kit – 2 pieces
Bit length – 174 mm
Torque – 5 Nm
Fastener type – Collated Screws
Fastener length 1 – 25-55 mm
Screw diameteR – 3.5-5.5 mm
