Description

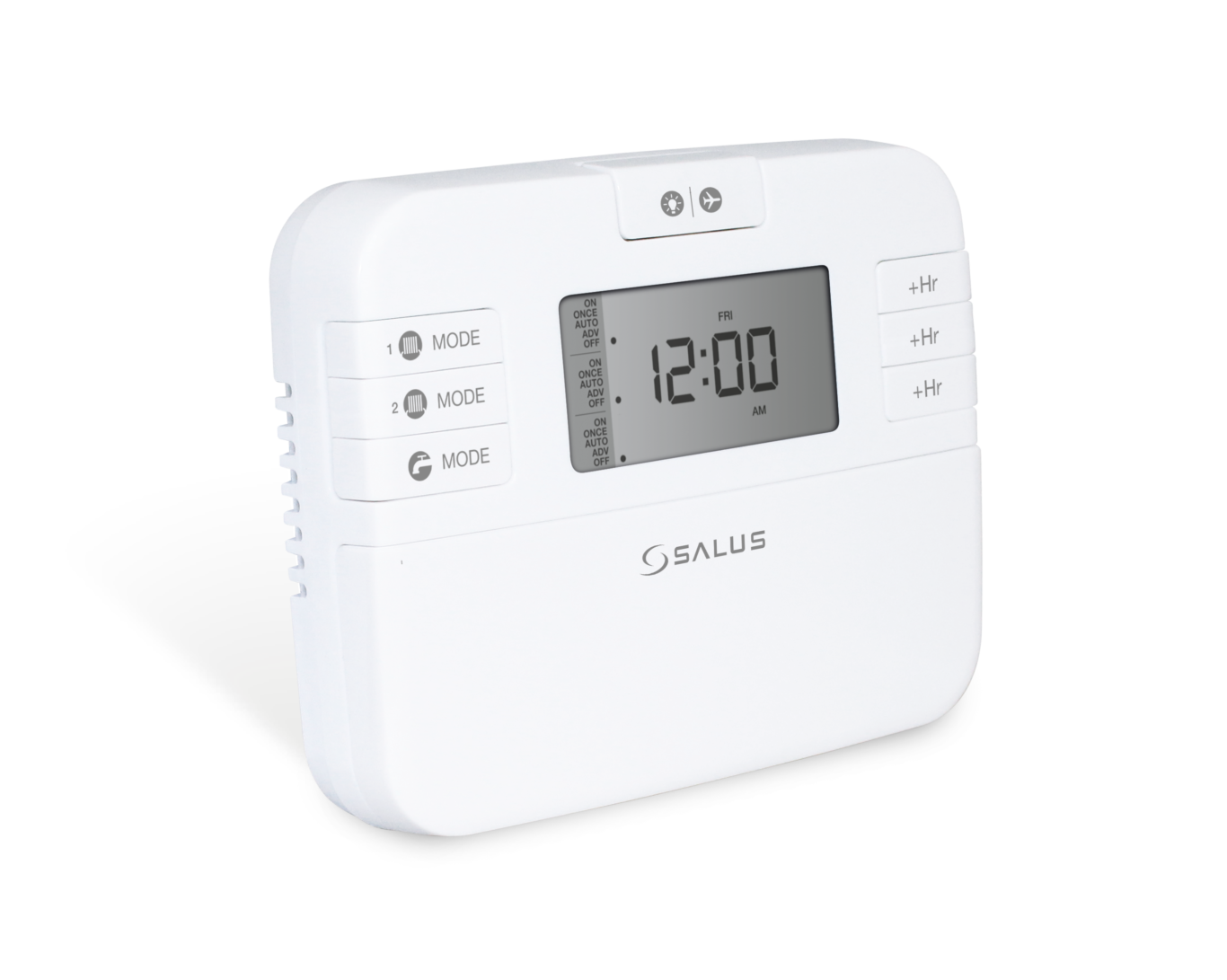

3 Channel programmer with two individual timed heating zones and one timed hot water zone in a domestic system.
FEATURES
Can only be used for 230V applications.
Time control for the two heating zones and hot water zone
3 On/Off periods
Large, easy to read LCD
Holiday function
Advance function
Boost function
Simple installation
Default program
5 Year Warranty
Supply:
230V AC 50Hz
Rating Max:
3 (1) A SPDT
Output:
230V AC 50Hz
Size (mm):
W- 120 H-98 D-27
Wiring
N
Neutral connection
L
Live connection
(1)
Hot water OFF
(2)
Central heating zone 1 OFF
(3)
Hot water ON
(4)
Central heating zone 1 ON
(5)
Central heating zone 2 ON
(6)
Central heating zone 2 OFF
