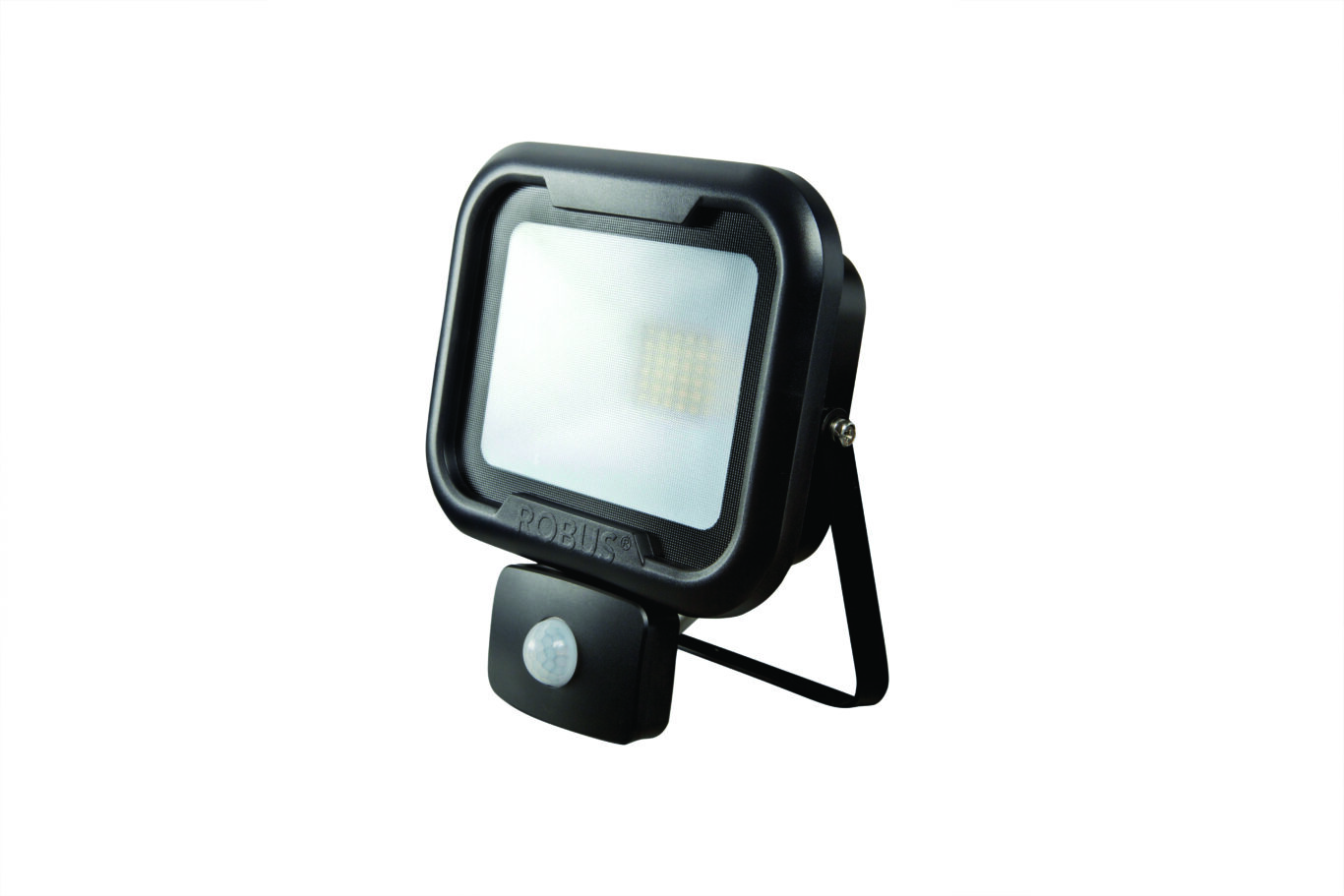

Description
Suitable for use in decking areas, drives, pathways, sign illumination, wall washing, atriums, patios, car parks, garages, industrial units
LED replacement for 20-80W Metal Halide/ 75-350W Halogen flood lights
Polycarbonate trim with tempered glass providing high impact rating of IK07
Easy installation through 20mm PG gland and large connector block
Pre-drilled, angled mounting bracket for fast and simple installation
No warm up or cool down period required by LED
High efficacy of 96lm/W
Wide operating ambient temperature range of -20øC to 40øC
10W, 20W, 30W available with PIR sensor with adjustable time 10sec to 10min, detection range of 7-10m, and light level of 10lx to 2000lx
Cap Type LED
Total Power (Mkt) 28.7
Lumens (lm) (Mkt) 2750
Beam Angle (Mkt) 100
Lamp Life (Hrs) 30000
Number of LEDs 36 (12C3B)
Comparable To 50W Metal Halide 200W Halogen
CRI (Mkt) 80
CCT (K) (Mkt) 4000
Efficacy (lm/cctW) – Mkt 96
Lux at 1m (Mkt) 1200
Power Factor (Mkt) 0.95
Colour Black
Width (mm) 173
Depth (mm) 96
Unit Weight / kg 0.9
Height (mm) 233
