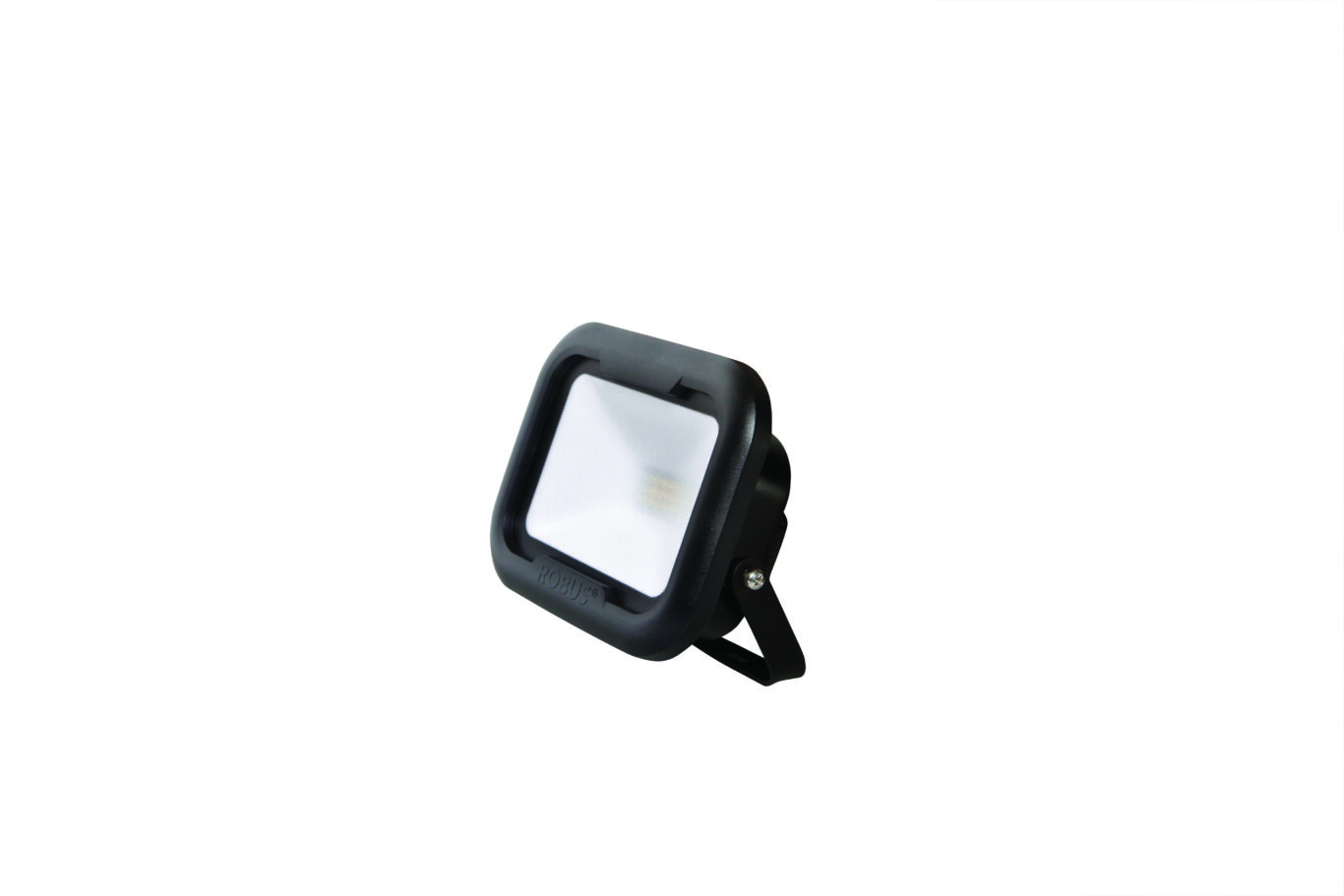

Description
Suitable for use in decking areas, drives, pathways, sign illumination, wall washing, atriums, patios, car parks, garages, industrial units
LED replacement for 20-80W Metal Halide/ 75-350W Halogen flood lights
Polycarbonate trim with tempered glass providing high impact rating of IK07
Easy installation through 20mm PG gland and large connector block
Pre-drilled, angled mounting bracket for fast and simple installation
No warm up or cool down period required by LED
High efficacy of 90lm/W
Wide operating ambient temperature range of -20øC to 40øC
10W, 20W, 30W available with PIR sensor with adjustable time 10sec to 10min, detection range of 7-10m, and light level of 10lx to 2000lx
Cap Type LED
Total Power (Mkt) 19.6
Lumens (lm) (Mkt) 1730
Beam Angle (Mkt) 100
Lamp Life (Hrs) 30000
Number of LEDs 1 (11C2B)
Comparable To 35W Metal Halide/ 150W Halogen
CRI (Mkt) 80
CCT (K) (Mkt) 4000
Efficacy (lm/cctW) – Mkt 90
Lux at 1m (Mkt) 780
Power Factor (Mkt) 0.95
Colour Black
Width (mm) 148
Depth (mm) 73
Unit Weight / kg 0.63
Height (mm) 150
