Description

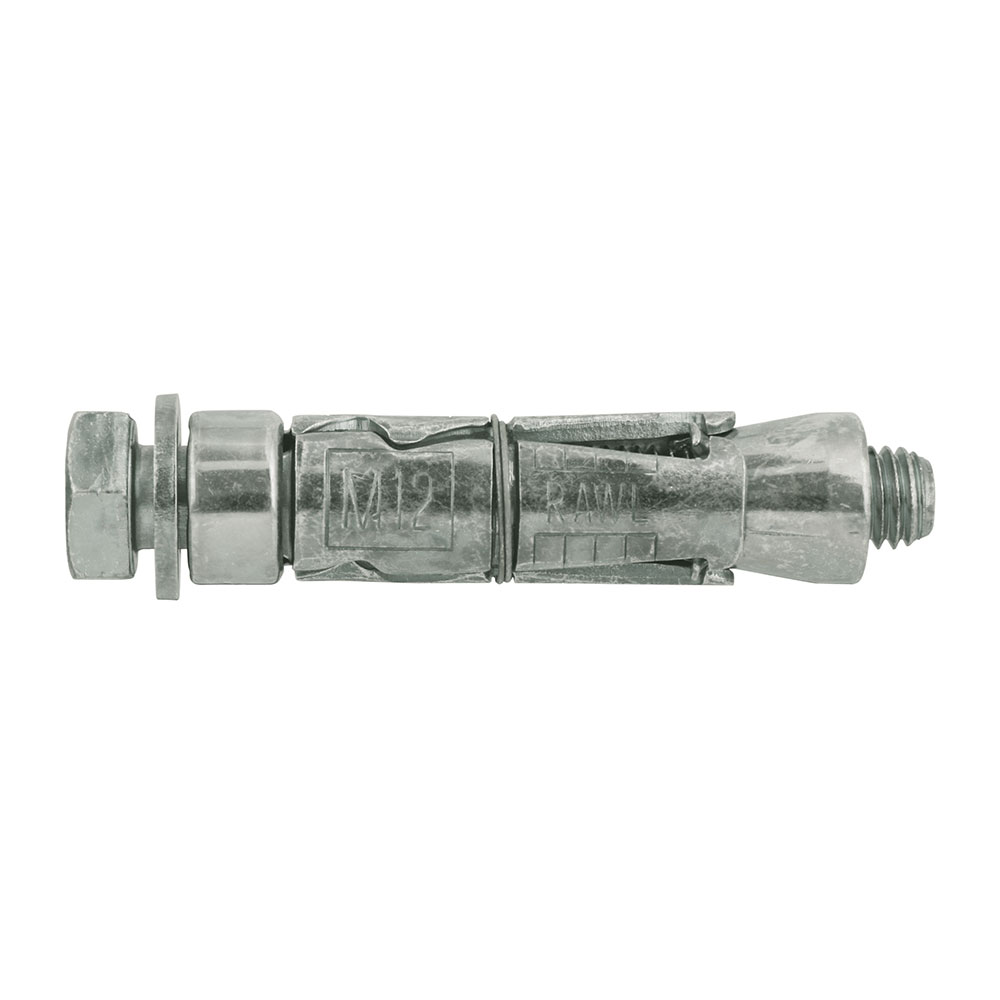

World’s most popular expanding shield anchor. Easy to use with good load carrying capacity. Ideal general purpose anchor bolt with excellent tolerance to variation in hole size. The collapsible ferrule ensures positive clamping force is transmitted to the fixture.
TYPICAL APPLICATIONS
– Roller shutter doors
– Fire doors
– Steelwork
– Security grills
– Machinery
– Pipework/duct work supports
SUITABLE FOR USE IN:
– Concrete
– Brickwork
– Stone.
Features: Bolt lengths suitable for fixture thickness up to 150mm. Ferrule marked with hole diameter for correct installation. Pressed steel segments ensure consistent dimensional accuracy. Optimum taper nut angle for maximum expansion in all substrates.
Dimensions:
Size: M10
Length: 90mm
Hole Diameter: 16mm
Max Fixture: 25mm
Quantity: 5
