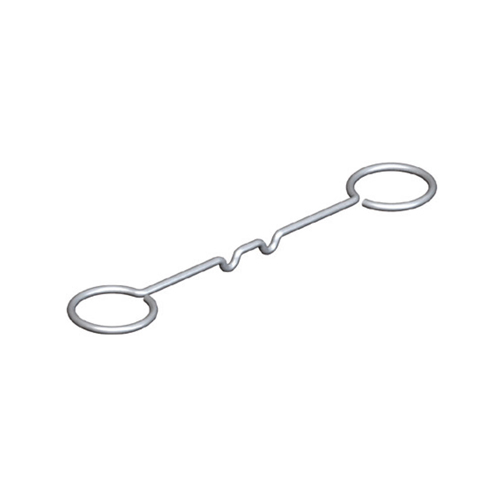

Description
Material – Stainless Steel 1.4301 to BS EN10088-3:2014
Coating/Finish/Colour – Mill Finish
Length (Projection) – 250mm
Length (height) – 2.8mm
Width/Wing Length – 28mm
Plaster/Render/Joist depth – 10-12mm Bed Joint Thickness
Material Gauge – 2.8mm
Individual Weight (kg) – 0.0162
Declared Tension Capacity – 1591N
Declared Compression Capacity – 546N
Fire Rating – Euroclass A1
Installation requirement 1 – Cavity size 101-125mm
Installation requirement 2 – Tie must be bedded and covered in fresh mortar before laying course above
Installation requirement 3 – Minimum design embedment 62.5mm
Installation requirement 4 – Tie spacings should be in accordance with PD6697
Installation requirement 5 – For dwellings up to 10m high, not more than 3 storeys
