Description

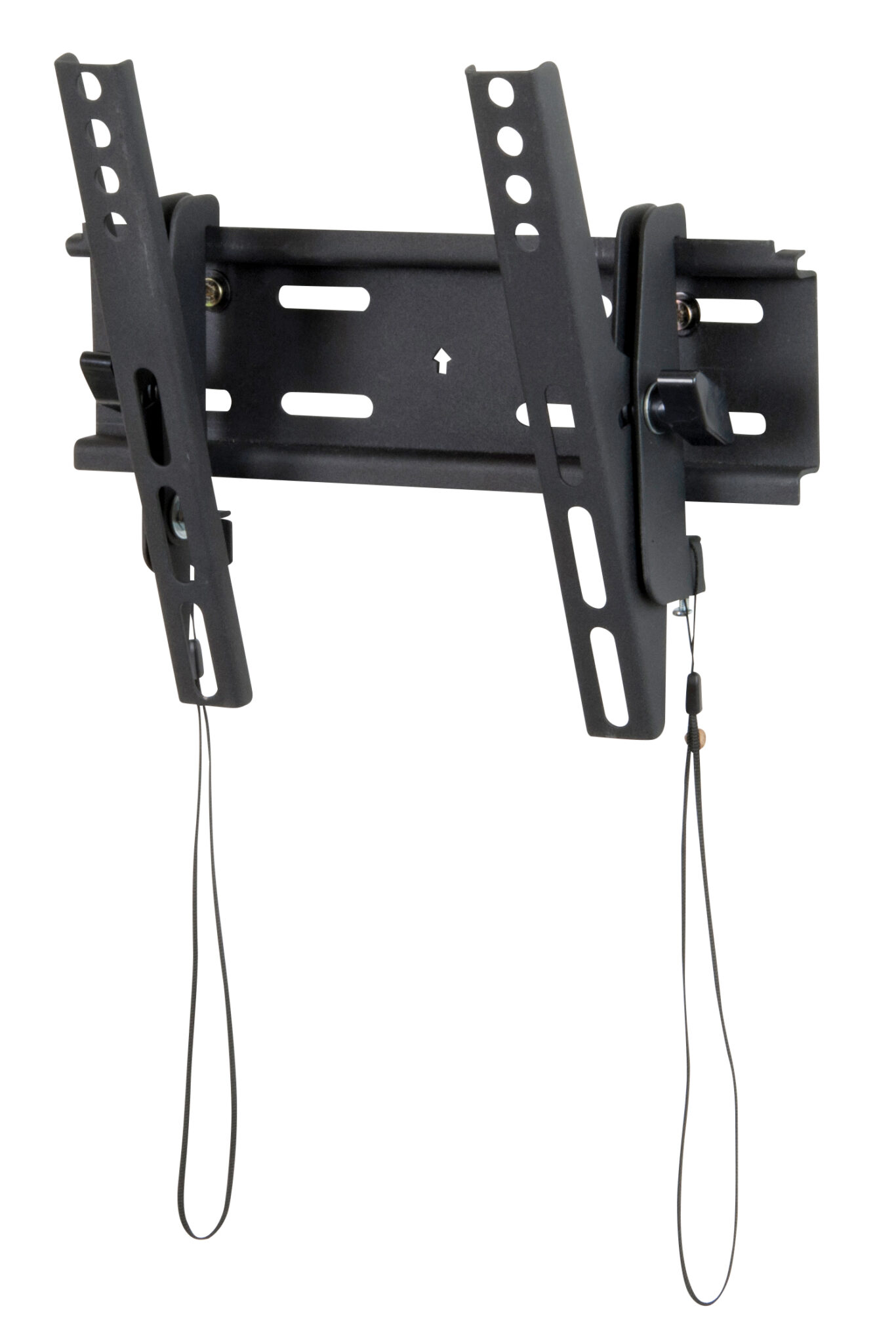

The 28083T ultra slim tilt TV wall mount is designed to fit any 24″-43″ Flat Panel TV up to 50kg. The Super Slim design sits just 40mm from wall to complement the sleek look of ultra-thin TVs. It tilts effortlessly and allows lateral shift adjustment meaning the TV can slide left or right on the wall plate so it is positioned exactly where you want it. It features an open design which maximizes airflow to equipment and provides easy access to the back of components. Maximum VESA 200×200
24″-43″ LED, LCD Flat Panel TVs
Freely tilting allows easy TV angle adjustment
Super slim design sits just 45mm from wall to complement the sleek look of ultra-thin TVs
Security screws hold TV securely in the wall plate
Open architecture provides superior ventilation and easy access for wiring
Lateral shift allows TV to slide left and right for perfect placement
Simple construction ensures a quick and easy installation
Automatically click-in spring lock with easily-release tab easily and securely attach your flat panels to wall
Specifications
Function: Tilting
Mounting Pattern: Universal
Material: Steel, Plastic
Surface Finish: Powder coating
Available Color: Black
Product Size: 265X222X20.5mm
Suggested Screen Size: 24″-40″
Installation: Solid wall
Rated Load: 35kgs/77lbs
Strength tested: 4 times approved
Max.Hole Pattern: 202x238mm
VESA: 50×50, 75×75, 100×100, 200×100, 200×200
Tilt: ＋0°～-8°
Profile: 45mm
