Description

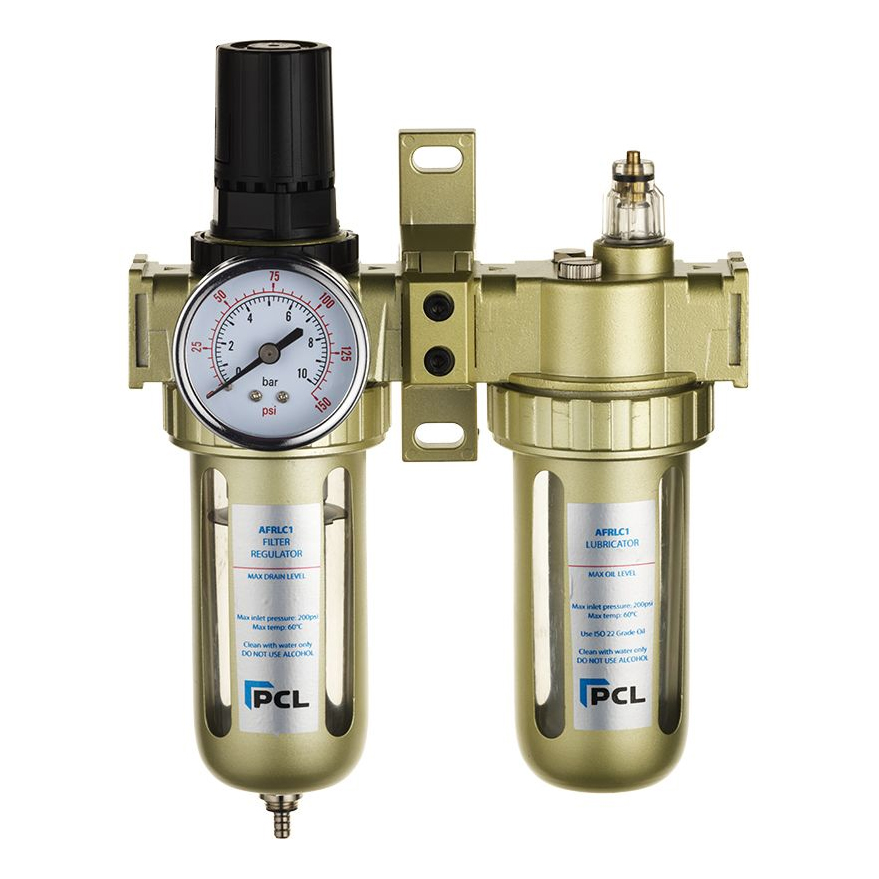

For budget applications, PCL’s Economy Air Treatment range of FRLs provides a ready constructed “connect and go” air treatment system which filters to 40 microns and has 1/2″ port inlets.
Semi-automatic drain valve
Polycarbonate bowls
40 micron filter
Weight (kg) – 1.212000
Type – Filter-Regulator-Lubricator
Filtration Size – 40 µm
Inlet / Outlet Connection – 1/2 in
Maximum Inlet Pressure – 10 bar
Capacity of oil bowl – 110 ml
Flow Rate – 1150 l/min @ 5 bar
Temperature Range – -10°C to 60°C
Adjustment – 0 – 8 bar / 114 psi
Calibration – 0-150 psi / 0-10 bar
