Description

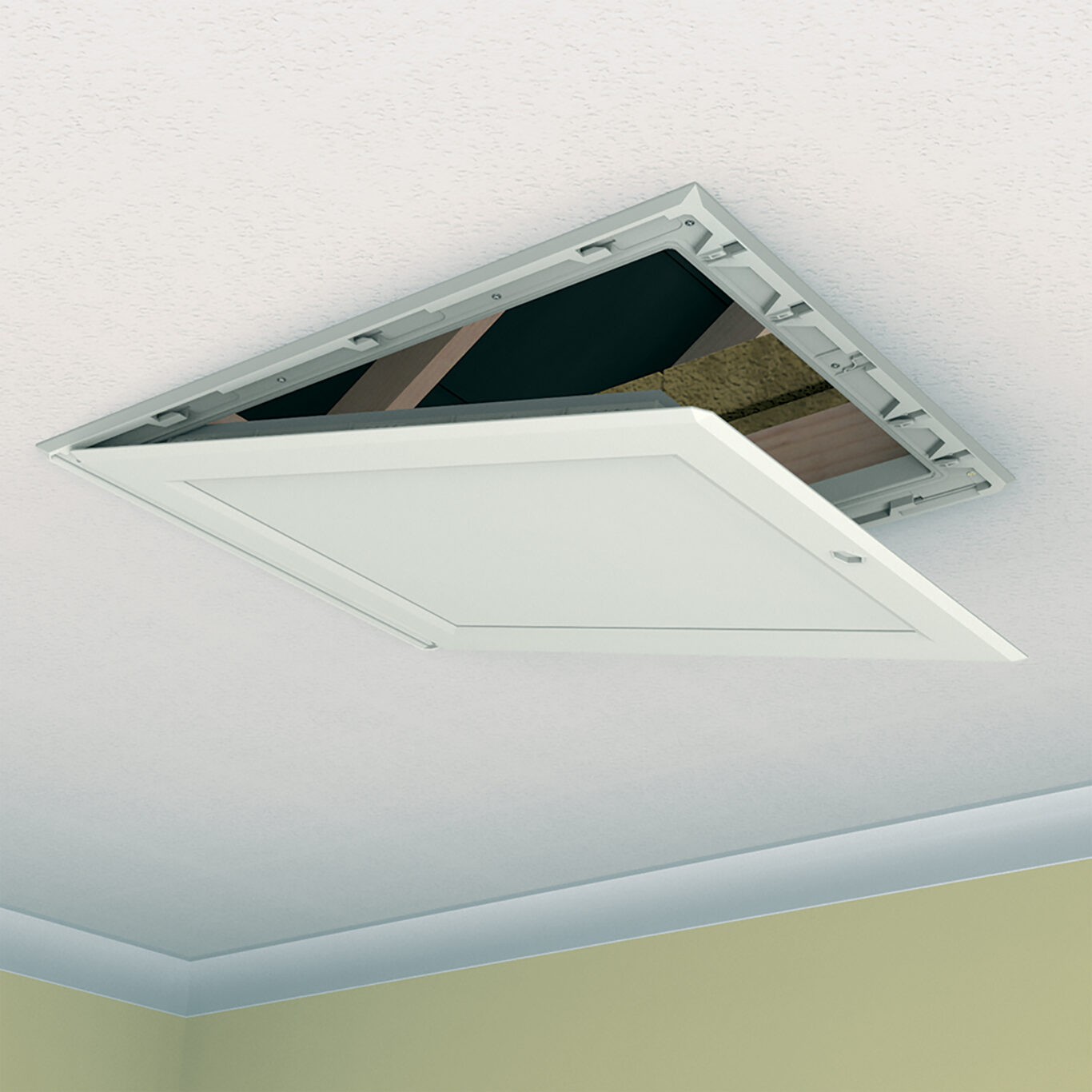

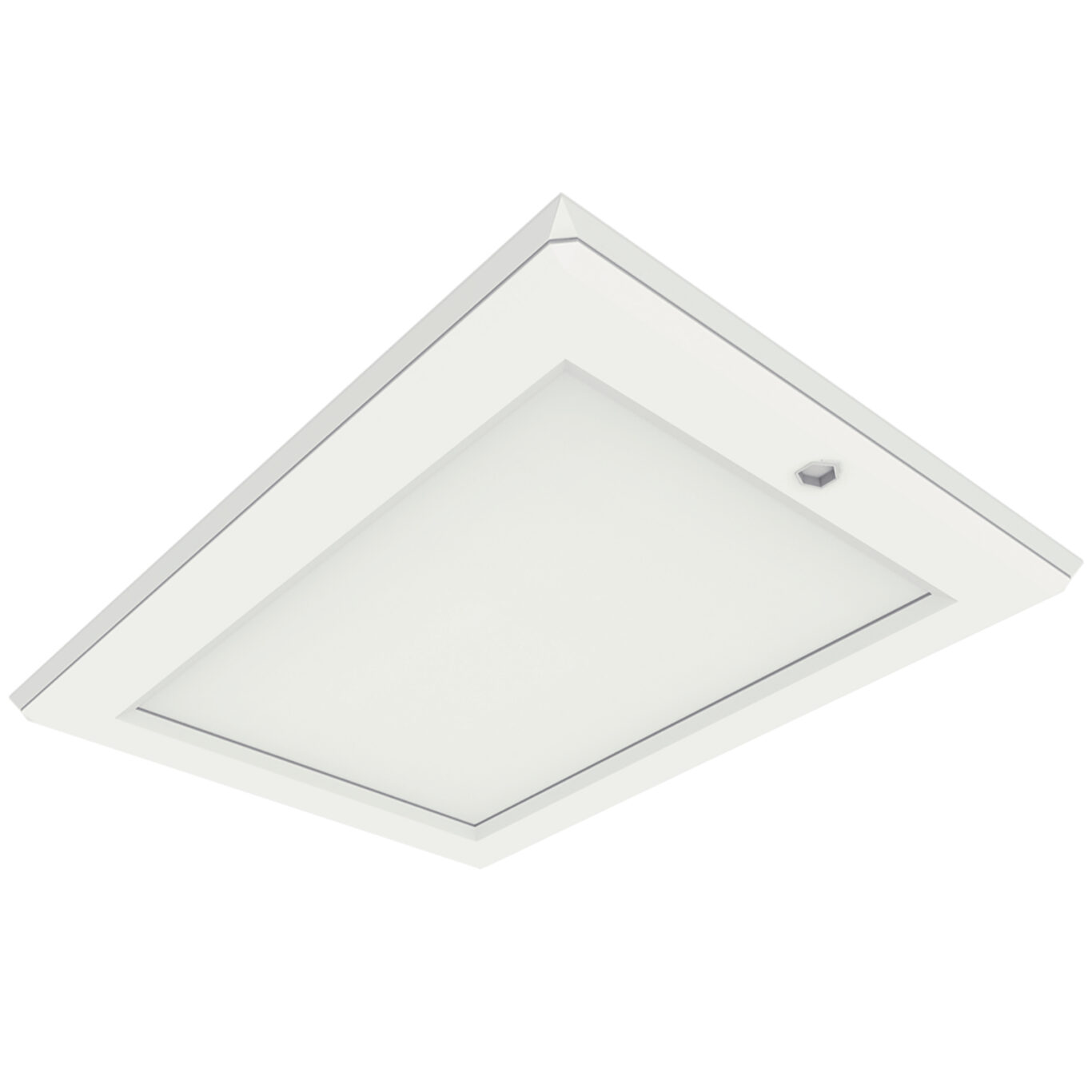

The GL250 drop down loft door is an innovative solution to the need for energy efficient loft space access, offering a cost effective alternative to traditional roof space entry. The unobtrusive design coupled with sleek, contemporary styling makes the door an ideal match for modern decors.
The revolutionary design of the multi-point catch mechanism means that the GL250 door can maintain a more effective draught seal around the entire accessible opening, helping to meet the air leakage requirements of Part L of the Building Regulations and preventing the problem of moist warm air entering the roof space causing condensation and heat loss issues.
Available with a range of insulation options to suit all requirements of modern construction levels; from an entry level insulation, to the Robust Construction Detail U-Value of 0.35 W/m²K and even down to a U-Value of 0.15 W/m²K to help meet the higher levels of the Code for Sustainable Homes.
Low profile design with sleek, contemporary styling
The door and frame are fully draught sealed
Sliding door mechanism supports the seals with multiple perimeter catches
Frame screws up into ceiling timbers for simpler installation
Innovative hinge detail is hidden when the door is locked
Hinge pivot positioned to provide largest accessible opening
Insulated area on the back of the door is fully maximised
Colour
White
Size
Overall: 856mm x 686mm
Insulation Type
50mm Expanded Polystyrene
U-Value
N/A
Fitting Size
562mm x 726mm
Accessible Opening Size
715mm x 545mm
BRE Airtightness Report No.
283-506
Packaging
Individually packaged in a polythene bag and cardboard box
Material
High Impact Polystyrene
Manufacturing Process
Injection Moulded
