Description

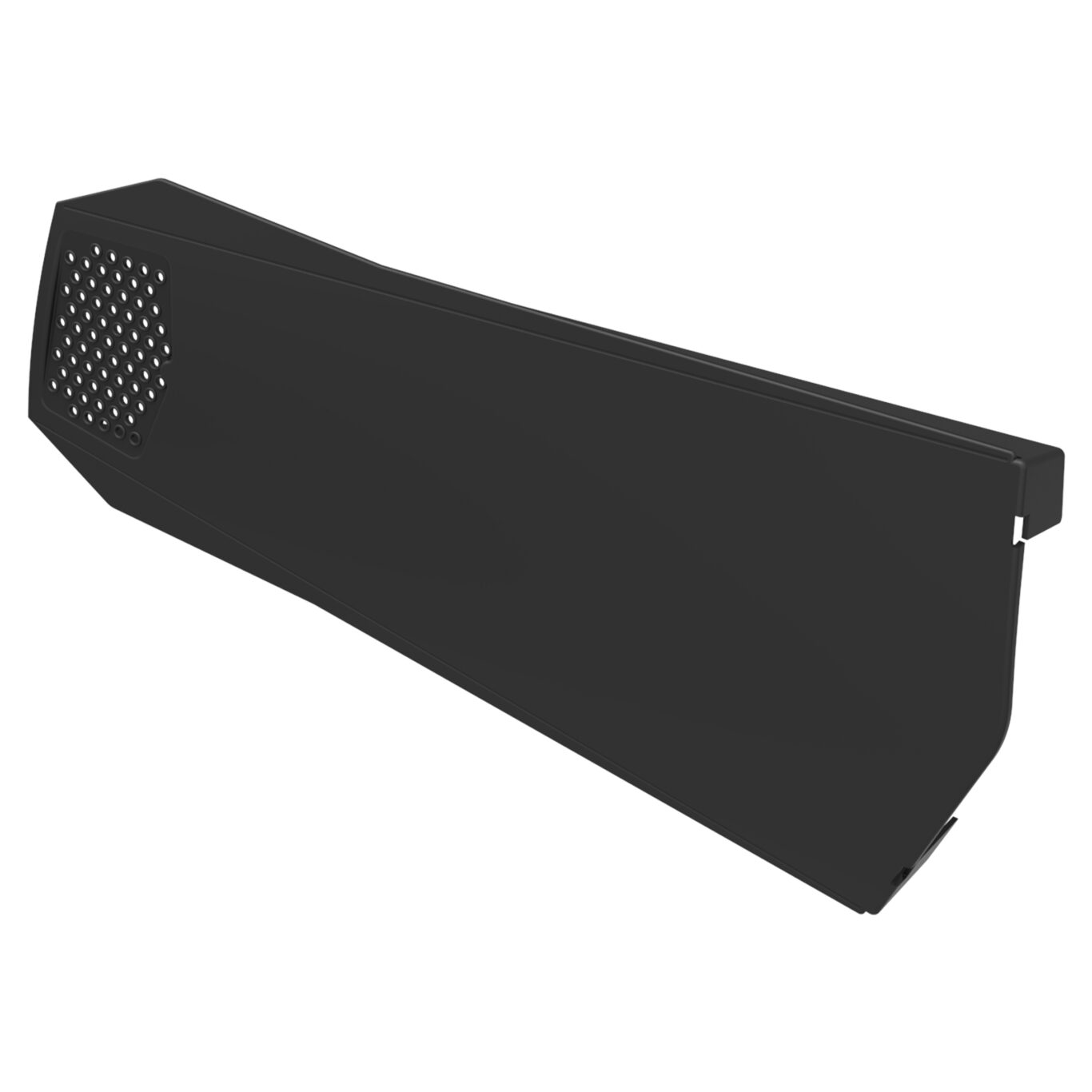

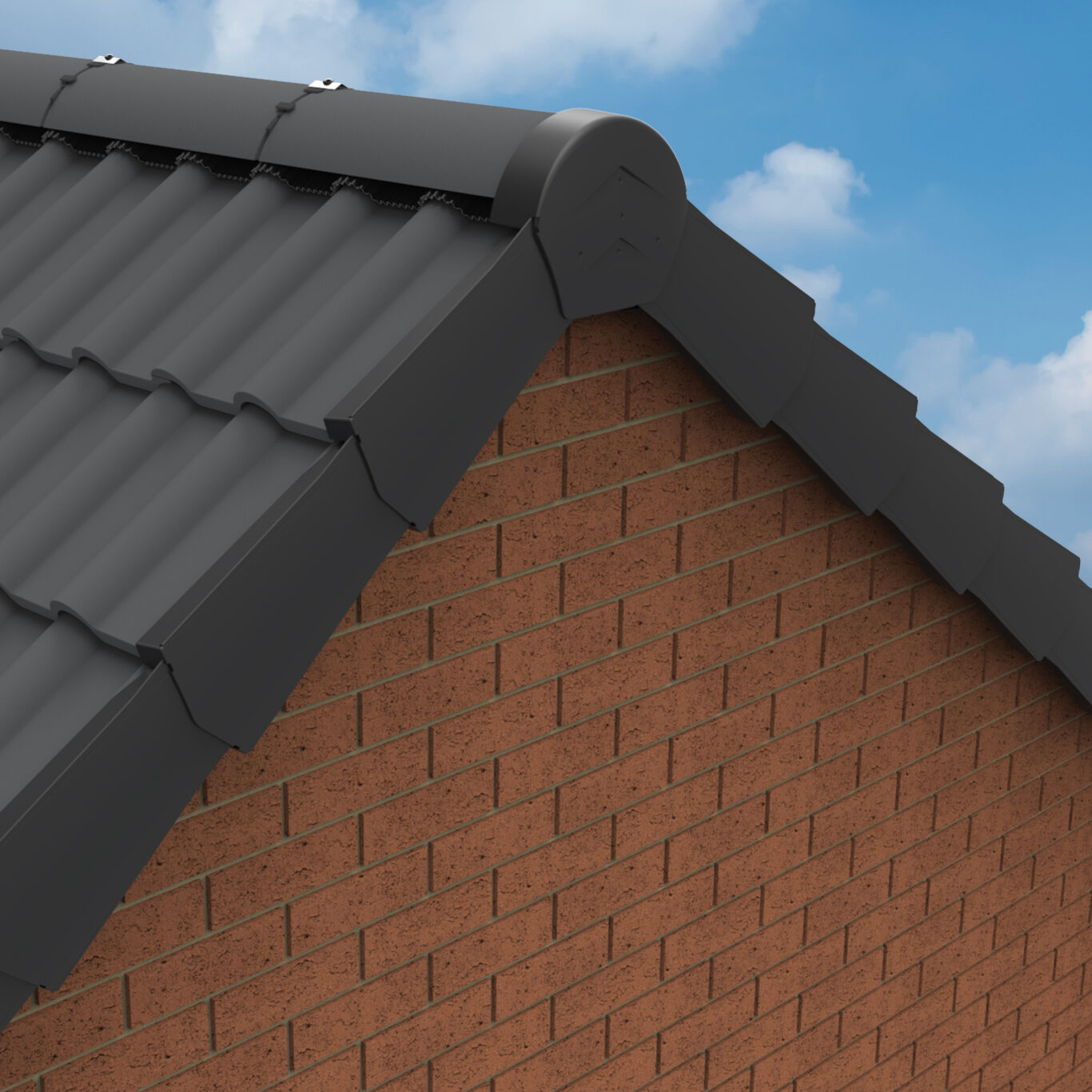

The SmartVerge Ambidextrous dry verge system provides an attractive finish to the verge detail of a roof for most makes and profiles of interlocking tiles laid between a batten gauge of 255mm to 345mm. The design of the system allows the units to be used on either side of the verge whilst still preserving the ‘stepped’ appearance of the roof tiles. The system is mortar-free and can be fixed in all weather conditions, easily capping over each tile in succession and once fitted they are weatherproof and maintenance free. The ambidextrous verge units are available in a range of colours to compliment any variation of roof design. Angled or round Ridge End Caps are available to protect the end of the ridge while the Eaves Closure fixes at the base of the verge, securing the first unit and preventing access for birds and large insects.
Fully compliant to the requirements of BS 8612
Fast and easy to install in all weather conditions
Ambidextrous design works on both hands of the verge
Suits small and large format concrete interlocking tiles
Provides a mechanically fixed, mortar-free solution
Drains moisture away from the wall to prevent staining
Manufactured from UV stabilised polypropylene
Size
423 x 182 x 52
Batten Gauge
255 to 345mm
Pitch Range
15° to 55°
BS 8612 BRE Test Report No.
P111832-1000
BRE Wind Tunnel Test Report No.
P110111-1000
Packaging
50 per box
Box Weight
11.5kg
Material
Polypropylene
Manufacturing Process
Injection Moulded
