Description

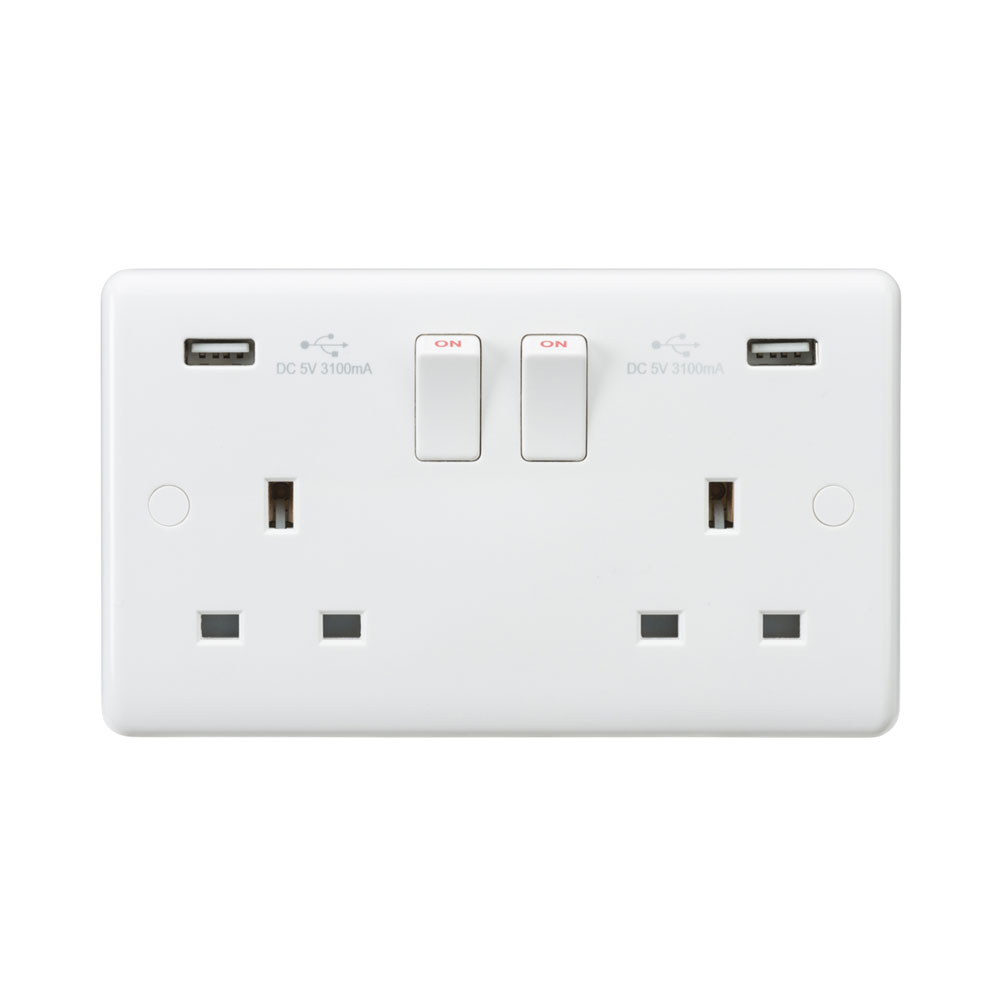

Gently contoured 7mm plate with rounded edges, includes screw cap covers.
13A rated
Built in Dual USB Charger 5V DC 3.1A (shared)
Top access to captive terminals to speed up installation.
Twin earths.
Min. Mounting box depth: 25-35mm dependent on wiring conditions
Certified to BS 1363-2, EN 60950-1
Packed in Individual Knightsbridge rip top polybag with euro slot
NB: Requires 35mm deep pattress box if surface mounting (CU1800)
HEIGHT – 86 mm
WIDTH – 146 mm
PROJECTION – 7 mm
MIN. MOUNTING BOX DEPTH – 25-35mm (dependent on wiring conditions)
CONSTRUCTION – Thermoset resin
FINISH – White (UREA)
CLASS – I
IP RATING – IP20
PRIMARY VOLTAGE – 230V 50Hz
