Description

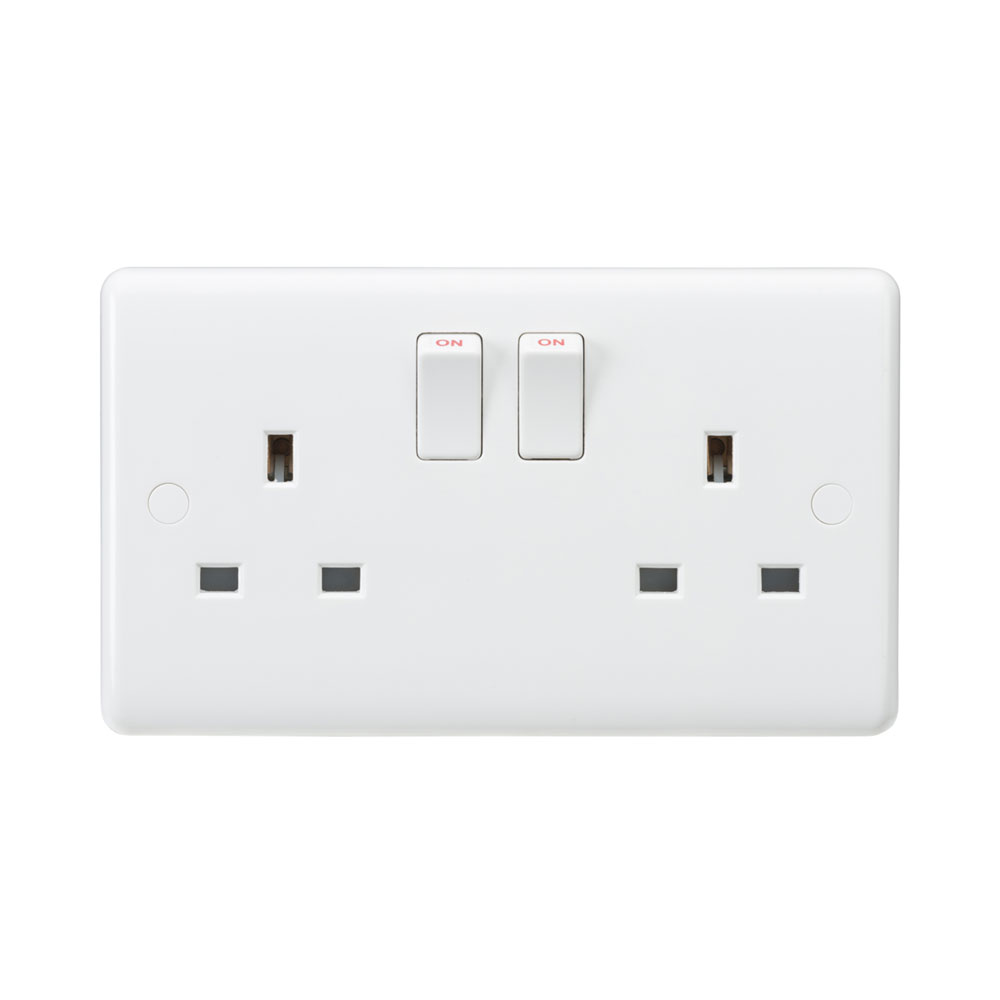

Gently contoured 7mm plate with rounded edges.
13A rated
Double Pole
Top access to captive terminals to speed up installation.
Twin earths
Includes screw cap covers
Min. Mounting box depth: 25mm
Certified to BS 1363-2
Packed in Individual Knightsbridge rip top polybag with euro slot
HEIGHT – 86 mm
WIDTH – 146 mm
PROJECTION – 7 mm
MIN. MOUNTING BOX DEPTH – 25m
CONSTRUCTION – Thermoset resin
IP RATING – IP20
PRIMARY VOLTAGE – 230V 50Hz
