Description

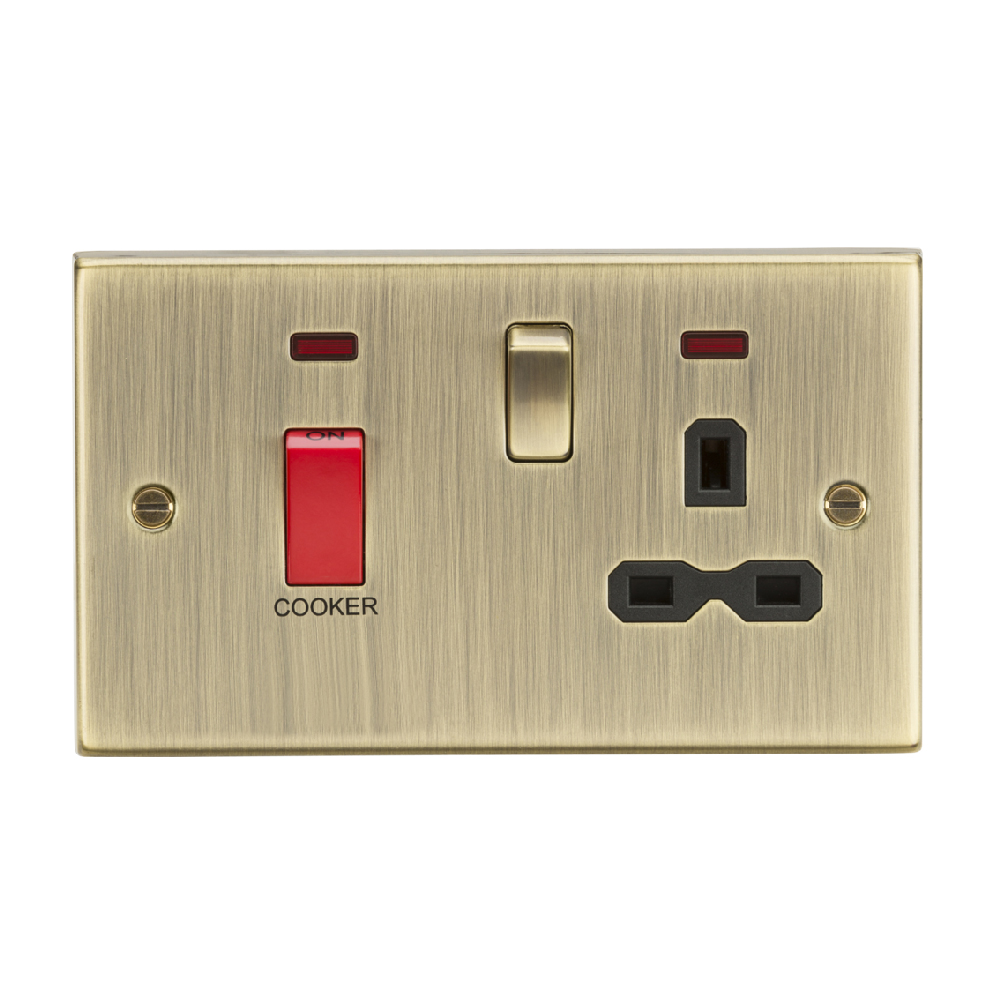

Cooker control units enable isolation of the unit so that maintenance and repairs to be carried out separately. The unit can be switched off, preventing the appliance from being turned on accidentally – for example whilst cleaning. Control two or more cooking appliances in the same room, providing rating is sufficient. This model combines a 45A switch with a 13A socket in square edge metal design
45A
Double pole
With neon indicators
13A switched socket
Square edge design with built in gasket
Certified to BS 4177, BS 1363-2
Minimum mounting box depth: 47mm
HEIGHT – 89 mm
WIDTH – 149.3 mm
PROJECTION – 10.5 mm
MIN. MOUNTING BOX DEPTH – 47mm
CONSTRUCTION – Premium grade steel
FINISH – Antique Brass
IP RATING – IP20
PRIMARY VOLTAGE – 230V 50Hz
EARTH TERMINAL – Yes
NEON INDICATOR – Yes
TERMINAL – Screw
