Description

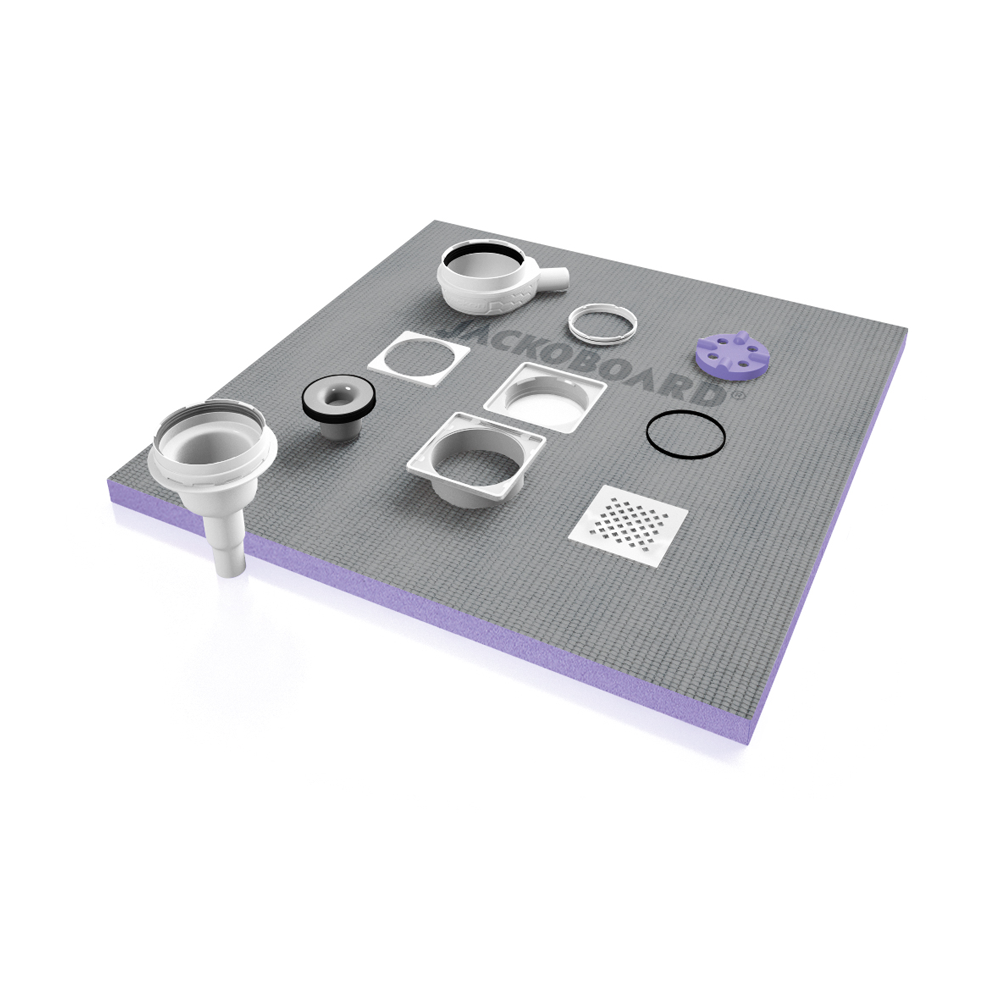

JACKOBOARD® Aqua drain systems are the matching accessory for JACKOBOARD® Aqua and Aqua Flat shower elements. There are two drain systems to choose from: a horizontal drain system with a super-flat drain and a minimum installation height of just 97 mm (including shower element) or a vertical drain system. Both drain systems include a high quality solid brushed stainless steel grate with a high drainage rate of 0.9l/s.
Product characteristics – JACKOBOARD® Aqua drain systems:
High quality designer grate made of solid brushed stainless steel
Grate frame with adjustable height range 3–18 mm
Horizontal, extra flat drain with a minimum installation height (including shower element) of just 97 mm
High drainage rate of 0.9 litres/sec
Water trap height 50 mm
DN 50 (horizontal), DN 40/50 (vertical)
Drain nozzle made of glueable ABS plastic
Fire safety configuration also available on request
Benefits – JACKOBOARD® Aqua drain systems:
Perfectly matched to the technical specifications of JACKOBOARD® Aqua shower elements.
Ideal application:
For the fast and precision-fit installation of a drain system that is perfectly matched to all JACKOBOARD® Aqua shower elements.
