Description
Fits any combination of 0.75mm2 – 4.0mm2 solid or 1.5mm2 – 2.5mm2 stranded (≤ 7 strands) copper conductors or tin bonded flexible wire
32 Amp / 450V rating (18th Edition/CE)
20 Amp / 600V rating (UL467)
High quality, secure connections
Clear shell allows verification of connection
Continuity test port
Colour coded for easy identification
BS 7671:2008 (18th Edition) compliant/CE and UL approved
Conform to EN 60998-1 and EN 60998-2-2 connecting device standards
Tough, UL 94V-2 flame-retardant shell rated at 105°C (221°F)
Approved for bonding and grounding applications
Strip, push, connect – the fastest way to make a connection.

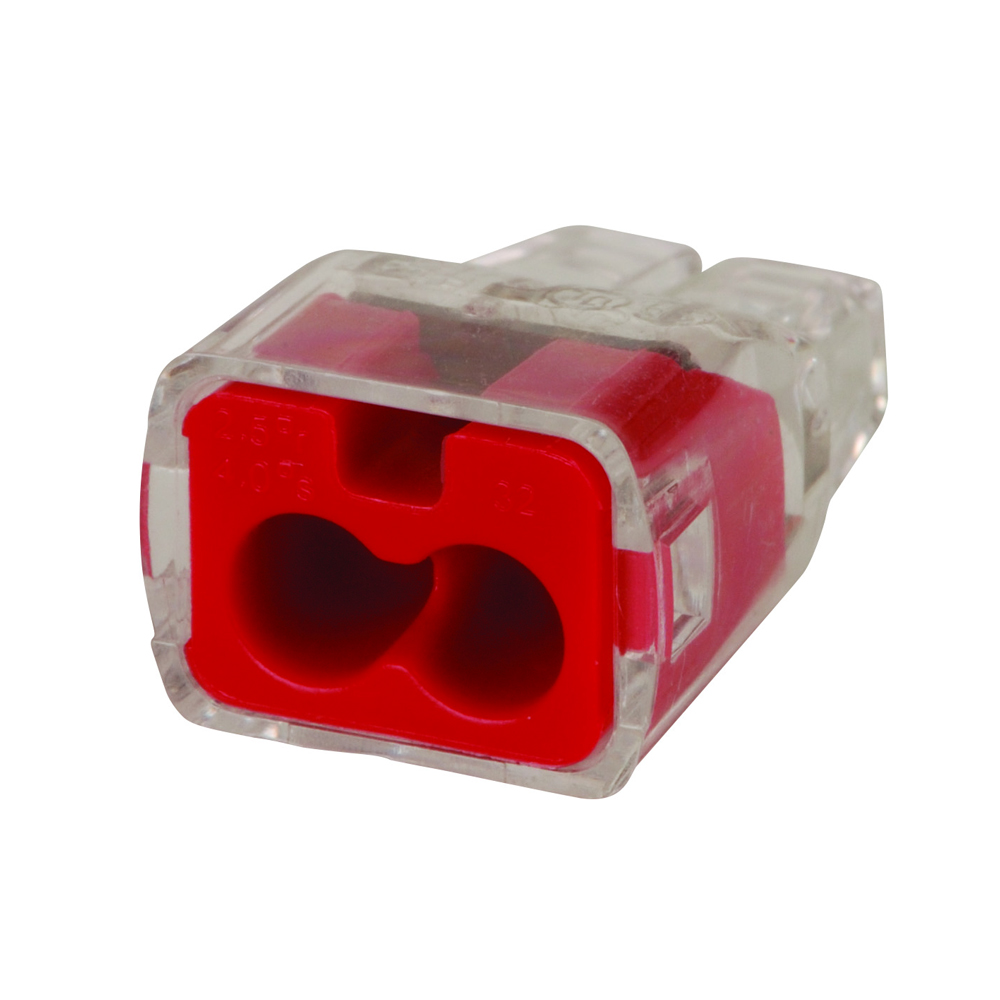

The In-Sure® Push-In Wire Connector is perfect for residential, light commercial, lighting retrofit, and pre-fab wiring systems, or any other branch circuit wiring application where a traditional twist-on wire connector would be used. Simply push the wire in – the low insertion force makes it easy.
The colour-coded shell allows for quick identification of port configuration while the clear polycarbonate housing allows for visual verification of every connection. The ergonomic design is easier to grip which means more comfortable push-in connections. The compact size makes for easy installations in even the tightest spots or shallow boxes, and the tough, flame-retardant shell stands up to the harshest environments.
2, 3 and 4 port models are rated to 32 Amps and can be used with the In-Sure® Box (30-4000) for a Maintenance Free installation as per BS 5733.
Conform to EN 60998-1 and EN 60998-2-2 connecting device standards, BS7671:2008 (18th Edition) compliant, CE approved, UL Listed, CSA Certified – the In-Sure® saves time and improves productivity while perfecting connections.
