Description

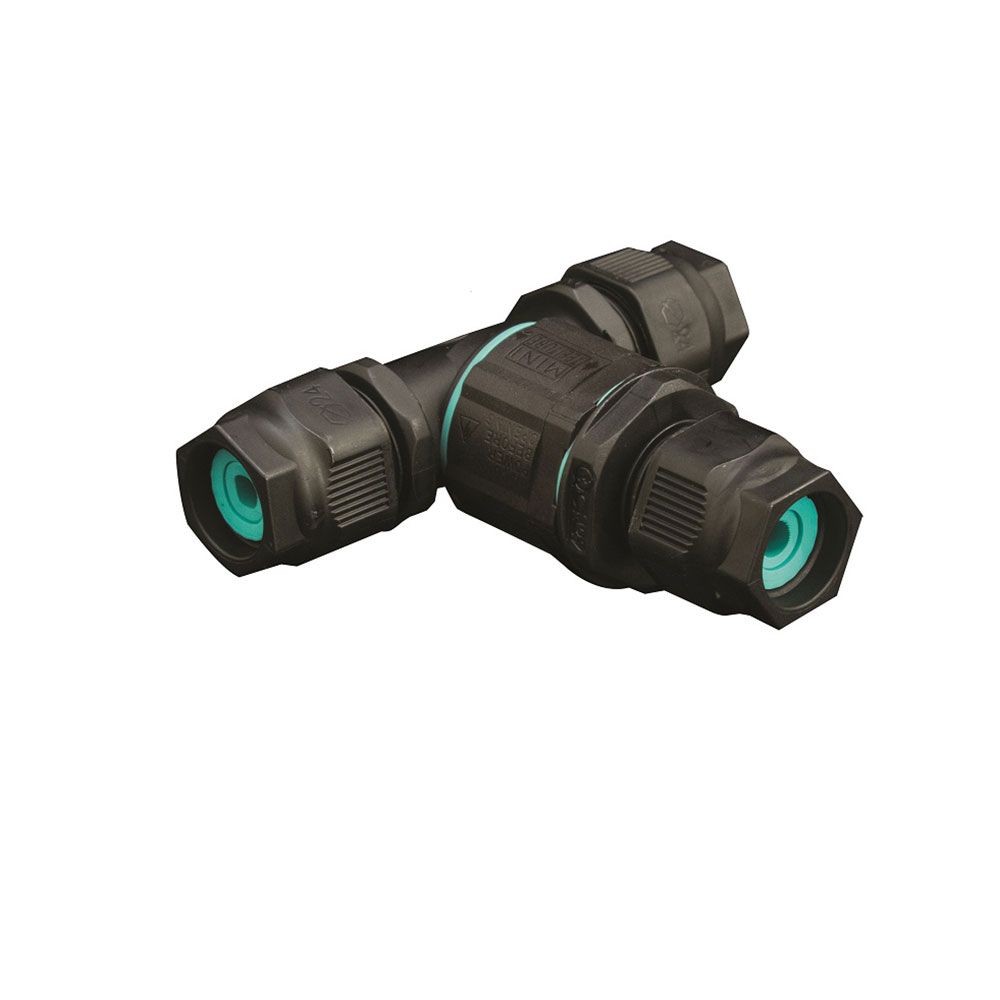

TeeTube Mini 3 Pole Screw – end barrier contact 7mm to 13.5mm, 4 mm max conducter size IP68 32A 450V 3 cable entries
Tough, robust construction with large cable range acceptance
Straight through, T splitter and Y splitter versions available
Dual terminal versions available for easy fitting and looping of conductors (2+2 and 3+3 poles)
Temperature rating of –40°C to +125°C
Type Junction connector
Cable Entries 3
Max Current (A) 32
Max Voltage (V) 450
Number of Poles 3
Max Conductor Size (Sq mm) 1.5
Minimum Cable Diameter (mm) 7
Maximum Cable Diameter (mm) 13.5
Tightening Torque of Cable Gland-Connector 2.5 Nm
IP Rating 68
Min Temperature Rating °C -40
Max Temperature Rating °C 125
Body Material PA66 GF UL94 V0
