Description

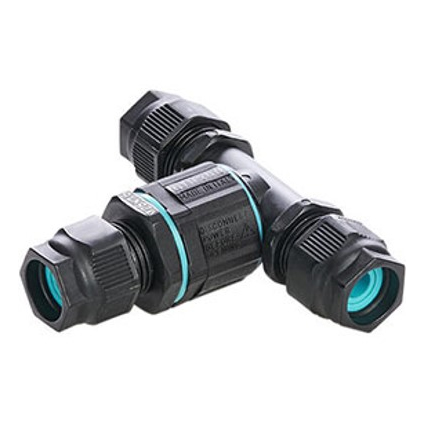

TeeTube Mini 3 Pole Screw – end barrier contact 7mm to 13.5mm, 4 mm max conducter size IP68 32A 450V 3 cable entries
Tough, robust construction with large cable range acceptance
Dual terminal versions available for easy fitting and looping of conductors (2+2 and 3+3 poles)
Temperature rating of –40°C to +125°C
SPECIFICATION
Cable Entries 3
Number of Poles 3
Terminal Type Screw – end barrier contact
Body Material PA66 / TPE
IP Rating 68
Max Conductor Size (Sq mm) 4
Max Current (A) 32
Max Voltage (V) 450
Min Temperature Rating °C -40
Max Temperature Rating °C 125
Minimum Cable Diameter (mm) 7
Maximum Cable Diameter (mm) 13.5
