Description

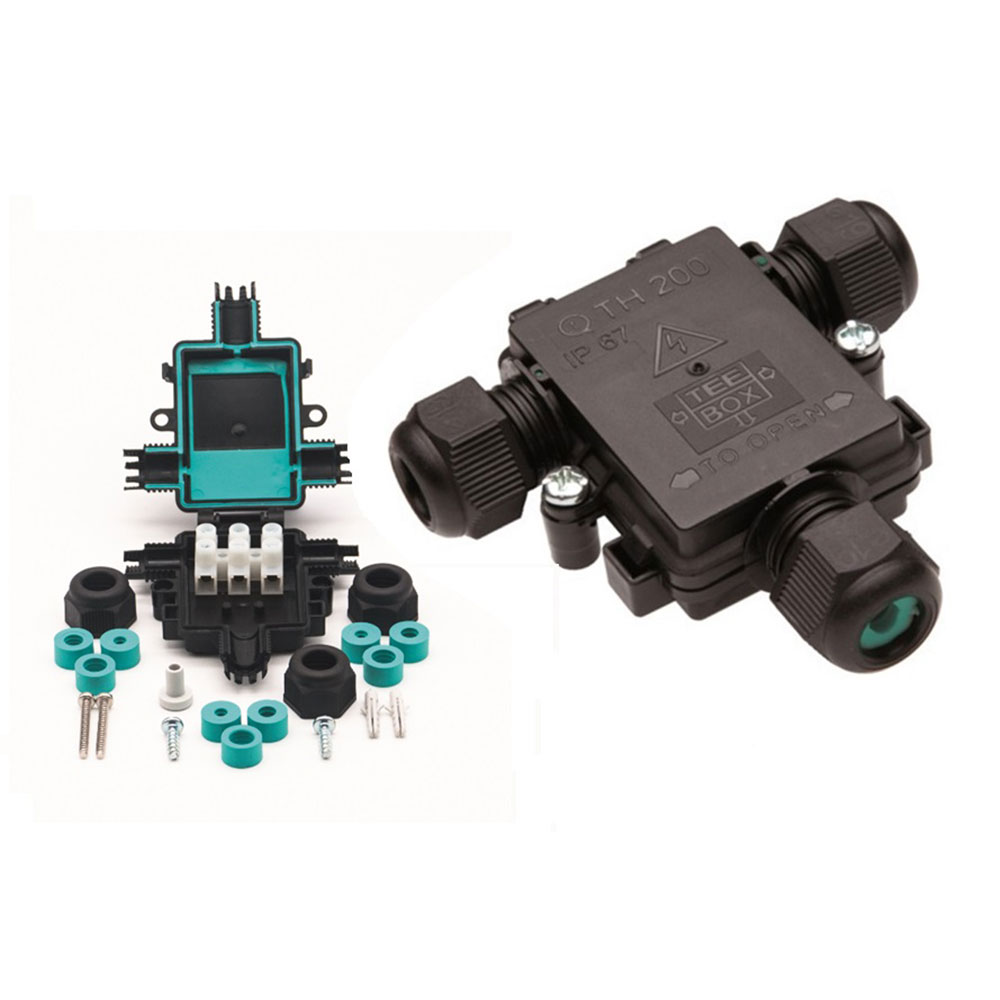

TeeBox, 3 cable entries, IP67 rated, Max Current 16A, Screw fixing, 3 sizes of gasket (Cable sizes: 4-5.5mm, 5.5-7mm, 7-9.5mm). Blanking plug to allow a 2 cable connection. Closing screws plus 2 Fixing screws with wall plugs.
Comprehensive range of connection options
Protection rating up to IP68 depending on product
Unique 3 pole T connector TH029 available for use in TH209 & TH211 range, no cable forming required
TH211 available as full KIT version complete with TH029 fitted
Power distribution products available in 3 port (TH630) and 4 port (TH62) versions
Temperature range of –20°C to +125°C
Cable Entries 3
Max Current (A) 16A
Minimum Cable Diameter (mm) 4
Maximum Cable Diameter (mm) 9.5
IP Rating 67
Min Temperature Rating °C -40
Max Temperature Rating °C 125
Body Material PA66 / SEBS/ TPECable Entries 3
Max Current (A) 16A
Minimum Cable Diameter (mm) 4
Maximum Cable Diameter (mm) 9.5
IP Rating 67
Min Temperature Rating °C -40
Max Temperature Rating °C 125
Body Material PA66 / SEBS/ TPE
